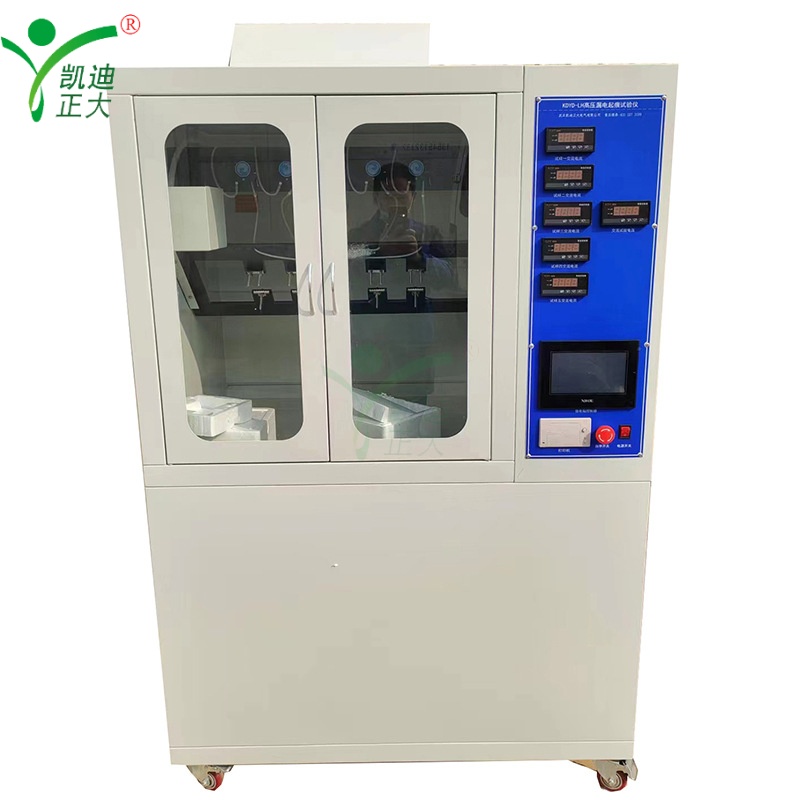

KDYD-LH High Voltage Tracking Tester for Insulation Material Testing
KDYD-LH High Voltage Tracking Tester for Insulation Material Testing

KDYD-LH High Voltage Tracking Tester for Insulation Material Testing

Applications:

Used to test electric tracking and erosion resistance of electrical insulation materials, engineering plastics and electrical connectors under power frequency, complying with GB/T6553-2003 and IEC60587-1984. Applied in testing lighting, low-voltage and household electrical appliances for harsh environment performance evaluation.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

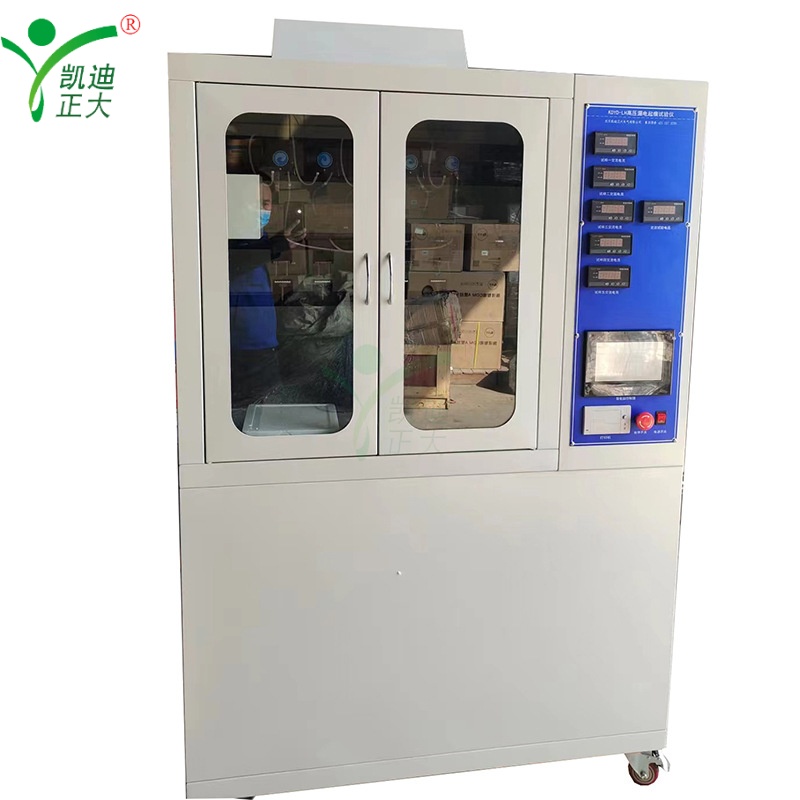

KDYD-LH is a PLC+touch screen controlled high voltage tracking tester, designed for 5-channel independent tests. It features precise liquid dropping, stable voltage output and multiple safety protections, auto-generating test reports for insulation material tracking resistance detection.

Features:

  • Precision plunger pump for stable and uniform contaminated liquid dropping with adjustable flow rate
  • Automatic voltage stabilization function, unaffected by power grid voltage fluctuations with small voltage drop
  • 5 independent test channels for high efficiency and strong comparability of test results
  • Built-in exhaust system to remove harmful gas generated by discharge in time
  • Multiple safety protections: self-locking, door interlock, zero start, overcurrent and overvoltage protection
  • PLC+touch screen control with humanized design, automatic test report generation after test

Parameter:

  • Test Channel & Electrode
    • Test groups: 5 groups (independent control)
    • Electrode: 0.5mm thick 304 stainless steel, electrode distance: 50.0mm±0.1mm

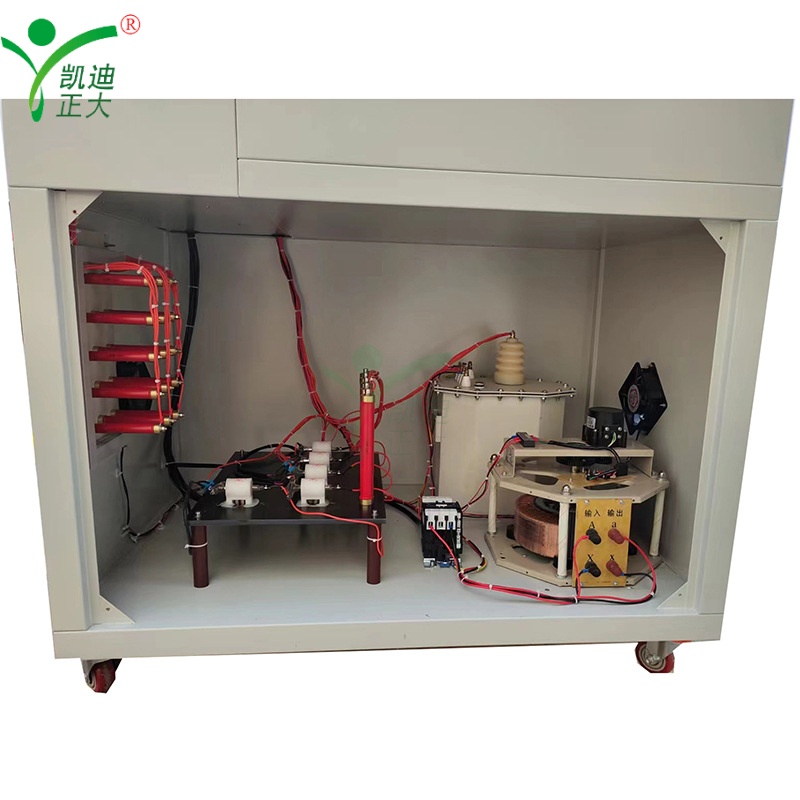

  • Voltage & Transformer
    • Test voltage: 100V~6000V AC stepless adjustable, voltage stability: ±1%
    • Voltage regulator: 0~250V output, 5KVA capacity
    • Test transformer: 5KVA capacity, max 6000V AC output
    • Precision stabilizer: 220V AC output, 6000W power, accuracy ±1%
  • Test Judgment & Time
    • Overcurrent judgment: 60mA current lasting 2S triggers relay and alarm
    • Qualification standard: ≤60mA current for 6H under 2.5/3.5/4.5kV without overcurrent
    • Test duration: 6 hours, liquid dropping interval: 0~99.99S/M/H stepless adjustable
  • Liquid Dropping Device & Solution
    • Dropping device: high precision peristaltic pump, adjustable flow rate and dropping height
    • Test solution: 0.1±0.002% NH4Cl aqueous solution, resistivity (3.95±0.05)Ω·m at (23±1)℃
  • Mechanical Specifications
    • Filter paper: 0.15~0.17mm thick (standard size)
    • Chassis: SUS304 stainless steel (wire drawing surface), pollution tank: 316 stainless steel with airtight device
    • Working chamber volume: 950×650×900mm (>0.5m³), overall dimensions: 1200×700×1800mm
  • Control & Protection
    • Control system: PLC+touch screen, independent control for each test group
    • Protection functions: self-locking, door interlock, zero limit start, upper limit protection, overcurrent/overvoltage protection
    • Exhaust system: built-in for harmful gas discharge
  • Working Conditions
    • Ambient temperature: -20℃~+40℃, relative humidity: ≤85% (25℃)
    • Grounding requirement: grounding resistance <4Ω
    • Operation time: ≤30min continuous running at rated capacity, long-term running at 2/3 rated load
