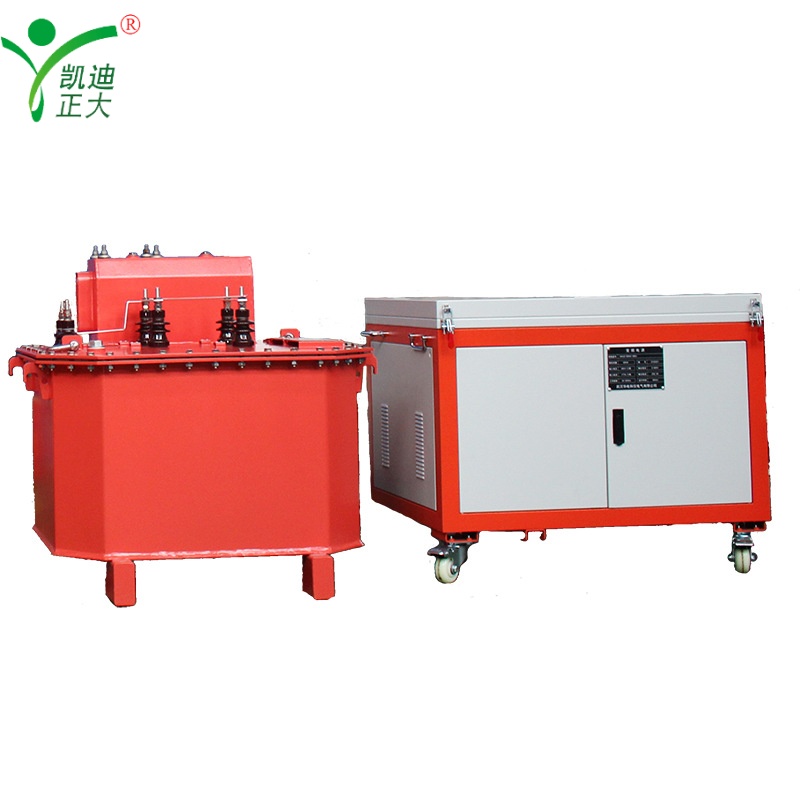

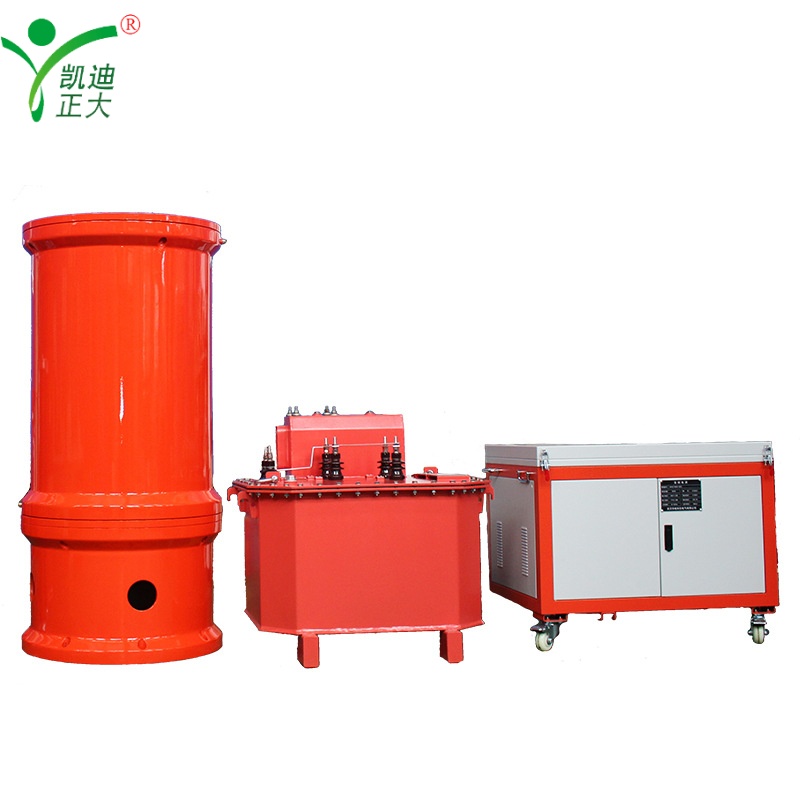

KDXZ-22/22 110kV 220kV transformer AC voltage test device
KDXZ-22/22 110kV 220kV transformer AC voltage test device

KDXZ-22/22 110kV 220kV transformer AC voltage test device

Applications:

Used for AC withstand voltage and insulation tests on 110kV/220kV power cables, transformers, GIS, and transmission equipment in power plants, substations, and high-voltage laboratories. It operates at 30–300Hz to meet rigorous testing requirements for extra-high-voltage equipment under site conditions.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDXZ-22/22 110kV/220kV is a variable frequency series resonant test device. It uses multi-stage reactors (series/parallel) and a voltage divider for measurement/compensation, achieving resonance at 30–300Hz to complete AC withstand voltage tests for 110kV/220kV electrical equipment.

Features:

  • Displays real-time frequency curve
  • Provides overcurrent and flashover discharge protection
  • Equipped with touch LCD color screen
  • Supports multiple operating modes
  • Performs automatic frequency exchange calculation

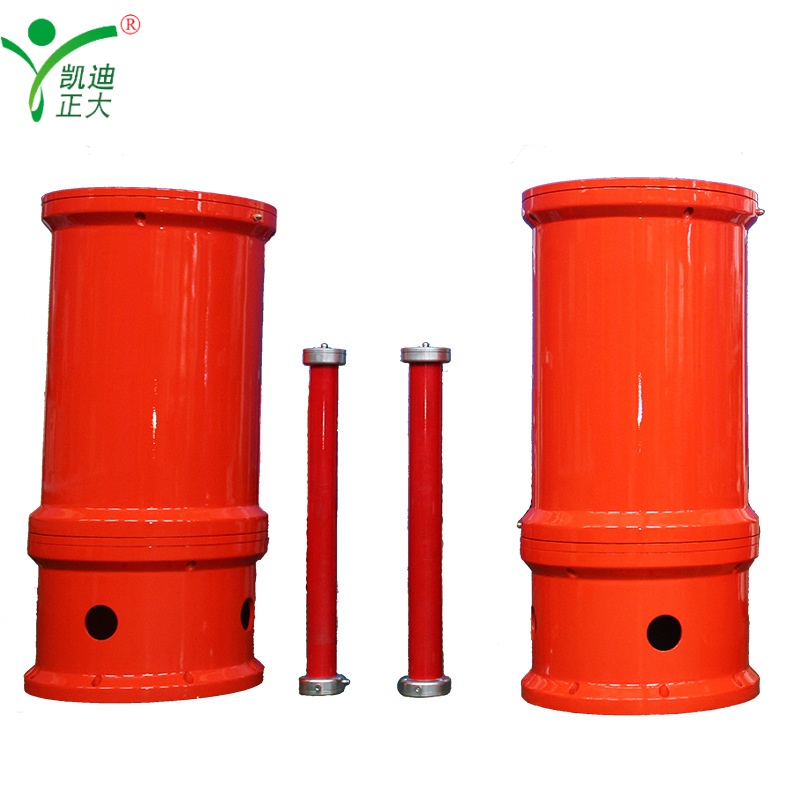

  • Adopts modular reactor design for flexible voltage matching

Parameter:

  • Model: KDXZ-22/22 110kV/220kV
  • Rated voltage: 110kV / 220kV
  • Frequency range: 30–300Hz
  • Reactor configuration: multi-stage series/parallel
  • Voltage divider: dual function (measurement/compensation)
  • Protection: overcurrent, flashover discharge
  • Display: touch LCD color screen
  • Operating modes: multiple selectable
  • Reactor design: modular for flexible voltage matching
