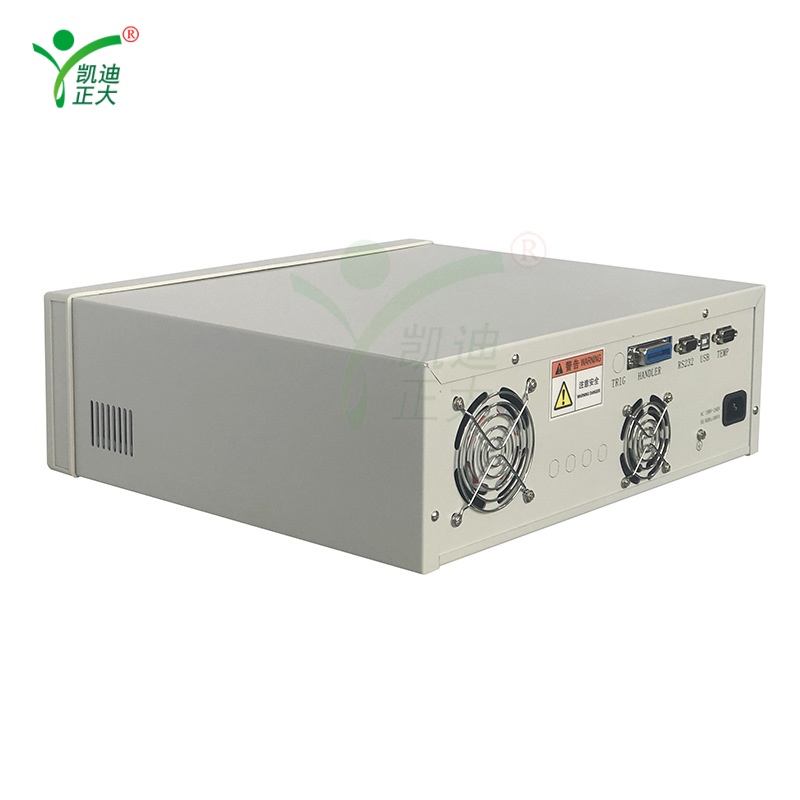

KDZD5510 Digital DC Resistance & Resistivity Tester for Semiconductors & Conductors
KDZD5510 Digital DC Resistance & Resistivity Tester for Semiconductors & Conductors

KDZD5510 Digital DC Resistance & Resistivity Tester for Semiconductors & Conductors

Applications:

Used for ultra-low DC resistance and resistivity testing of semiconductors, wires, cables, connectors, and metal components. Ideal for quality control, material sorting, and automated production lines in electronics and electrical industries.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

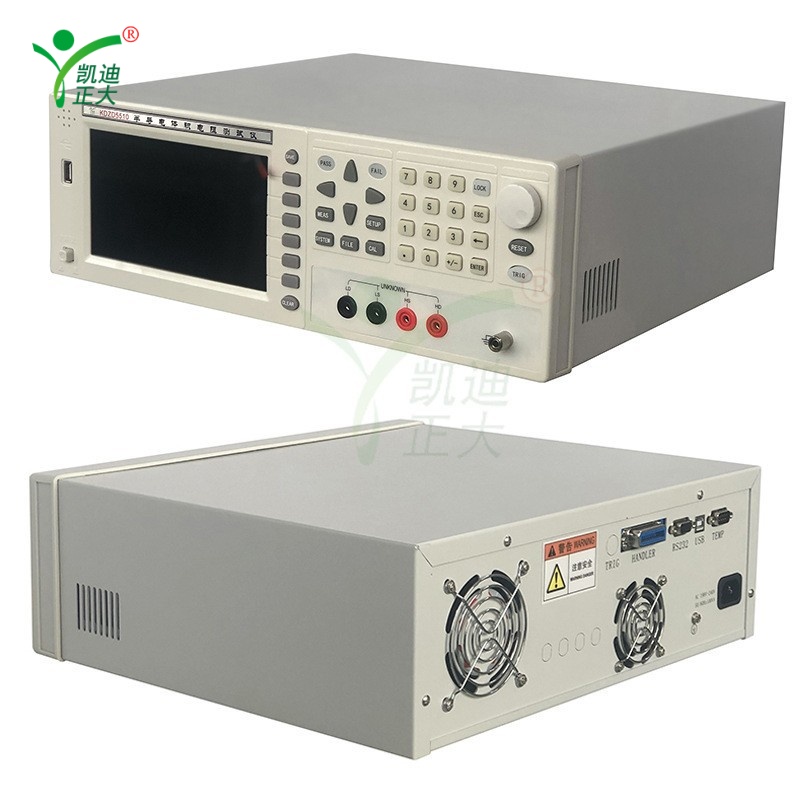

The KDZD5510 is a high-precision digital tester designed for ultra-low DC resistance and resistivity measurement. It features a 7-inch LCD display, 5-digit readout, and a wide measurement range (0.01uΩ~10MΩ). With bidirectional current testing and temperature compensation, it delivers 0.02% accuracy and up to 30 measurements per second. It supports multiple interfaces (USB, RS232, Handler) for remote control and automated data collection, making it ideal for lab testing and inline production inspection.

Features:

  • Ultra-low resistance measurement: 0.01uΩ~10MΩ (5-digit readout)
  • High accuracy: ±0.02% basic resistance accuracy
  • Bidirectional current testing to eliminate thermoelectric errors
  • Temperature and humidity compensation for precise results
  • 7-inch high-brightness LCD for clear data display

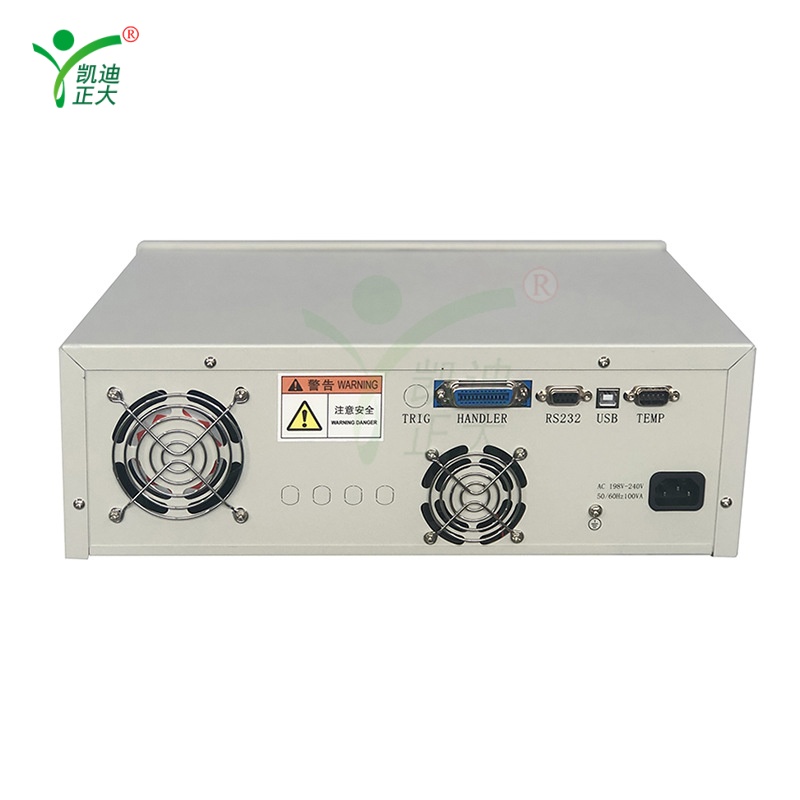

  • Multiple interfaces: USB, RS232, RS485, Handler for remote control
  • Fast measurement speed: up to 30 readings per second
  • Pass/fail sorting function for automated quality control

Parameter:

  • Measurement Range: 0.01uΩ~10MΩ (resistance); 10^-8Ω~10^7Ω (resistivity)
  • Accuracy: ±0.02% (resistance)
  • Test Voltage: ≤60mV
  • Current Ranges: 1μA, 10μA, 100μA, 1mA, 10mA, 100mA, 1A, 10A
  • Display: 7-inch color LCD
  • Interfaces: USB, RS232, RS485, Handler, USB HOST/DEVICE
  • Power Supply: AC 220V, 50Hz
  • Dimensions: 400×350×130mm
  • Weight: 13kg
