The KDBR-N transformer capacity tester has the advantages of small size, simple operation, and easy use. It has upgraded its internal processor, data acquisition system, and national standard data, making the instrument more widely available and with higher testing accuracy.

The KDBR-N transformer capacity tester includes functions such as transformer capacity, transformer no-load loss, transformer load loss and its code level determination, and electrical parameter measurement. The instrument comes with a high-performance rechargeable battery inside, which can work without an external power source. A fully charged battery can continuously measure more than 200 transformers. In addition, the instrument can provide a three-phase precision 50Hz sine wave AC test power supply, which does not require external three-phase test power supply, voltage regulator, current regulator and other auxiliary equipment when measuring transformer capacity and transformer load loss, thereby improving work efficiency.

This product has many advantages such as small size, light weight, high measurement accuracy, good stability, and simple operation. It can replace the traditional method of measuring transformer loss and capacity using multiple meters, with simpler wiring, easier testing and recording, greatly improving your work efficiency.



1. Adopting ARM+FPGA+ADC mode, coupled with RT Thread real-time operating system, the instrument system is more robust and the measurement accuracy is higher.
2.7-inch color high brightness LCD, icon style touch interface.
3. It has complete electronic assistance, with wiring diagrams and text descriptions for all operations, making the operation intuitive and simple.

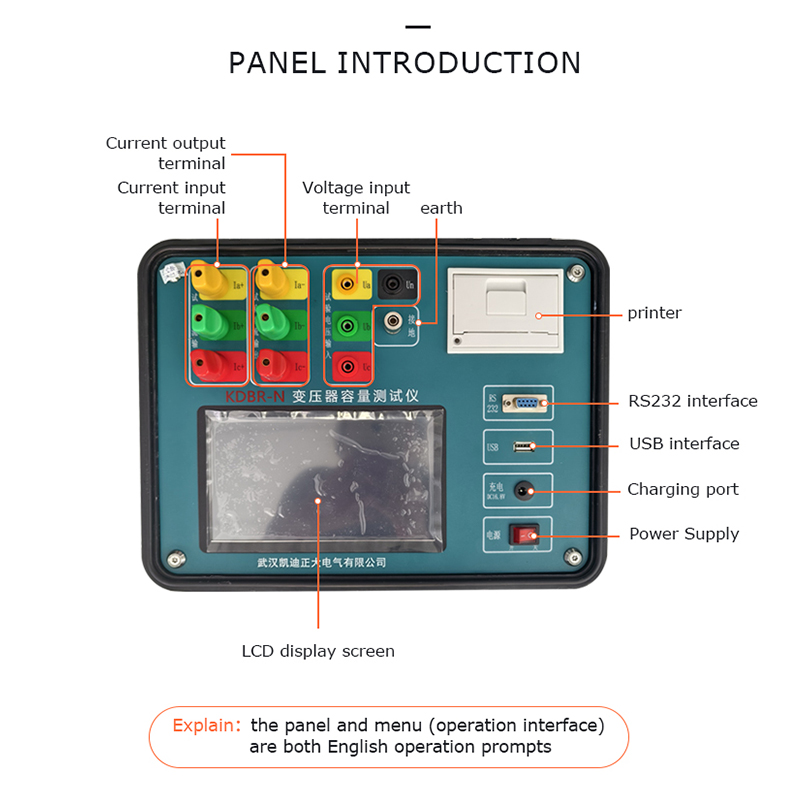

4. Built in large capacity storage, capable of storing 1000 sets of test data. USB port communication, on-site test data can be saved, and data can be uploaded to a PC according to customer needs.
5. It integrates mainstream wired (RS232) and wireless communication (Bluetooth, WIFI) functions, facilitating data uploading and remote control.
6. It has the function of remote program upgrade, and can upgrade instrument programs remotely according to customer requirements.
7. Real time waveform displays of voltage and current channels can be observed on all testing interfaces.
8. Real time display of voltage, current, frequency, power factor, active power, reactive power, and apparent power of the test circuit through a single interface to facilitate the judgment of on-site wiring conditions.
9. Standard customized low-voltage short-circuit wiring, no need for screws and wrenches, can firmly short-circuit the tested transformer terminal, convenient for on-site testing.
10. It can measure the capacity of various distribution transformers and electrical transformers on site, without the need for additional power supply, making detection more convenient and faster
11. All test results have been automatically calibrated. You only need to input relevant parameters (such as temperature, no-load correction factor, etc.), and the instrument will automatically perform various corrections such as waveform distortion correction, temperature correction, non rated voltage correction, non rated current correction, etc., making the test results more accurate
In the measurement of transformer characteristics, the maximum voltage range can reach 1000V, the maximum current range can reach 100A, and there is an internal protection circuit. When measuring, there is no need to switch gears to ensure measurement accuracy, and there is no need to worry about burning out the instrument due to incorrect gear selection.
When testing the characteristics of transformers, the voltage and current ranges can be flexibly and easily expanded by simply connecting external voltage transformers and current transformers, which broadens the testing range of the instrument.
14. Based on the test results of no-load and load losses, the performance level of three-phase oil immersed distribution transformers and electrical transformers can be automatically estimated for on-site reference by staff.

1. Built in power output range:
Voltage: 0-10V
Current: 0-10A
2. Characteristic channel testing range and accuracy:
Voltage range: AC 1000V. Accuracy, ± 0.2% (F.S) ± 1 word
Current range: AC 100A. Accuracy, ± 0.2% (F.S) ± 1 word
3. Measurement accuracy of power and other indicators:
Power: ± 0.5% (F.S) (0.1 ≤ Cos Φ ≤ 1)
±1.0%（F.S）（0.02≤CosΦ≤0.1）
Measurement of empty (load) loss: ± 2% (0.1 ≤ Cos Φ ≤ 1)
4. Transformer capacity testing range: 6.3~125 000kVA
5. Working temperature: -20 ℃~+60 ℃
6. Charger power requirements: mains AC 160V~265V
7. Insulation degree:
⑴. The insulation resistance between the capacity test, voltage, and current input points and the casing is ≥ 100M Ω
⑵ The charging power input can withstand a power frequency of 2kV (effective value) between the chassis, with a test duration of 1 minute
8. Host volume: 32cm × 24cm × 13cm
9. Weight: 4kg (main unit)
