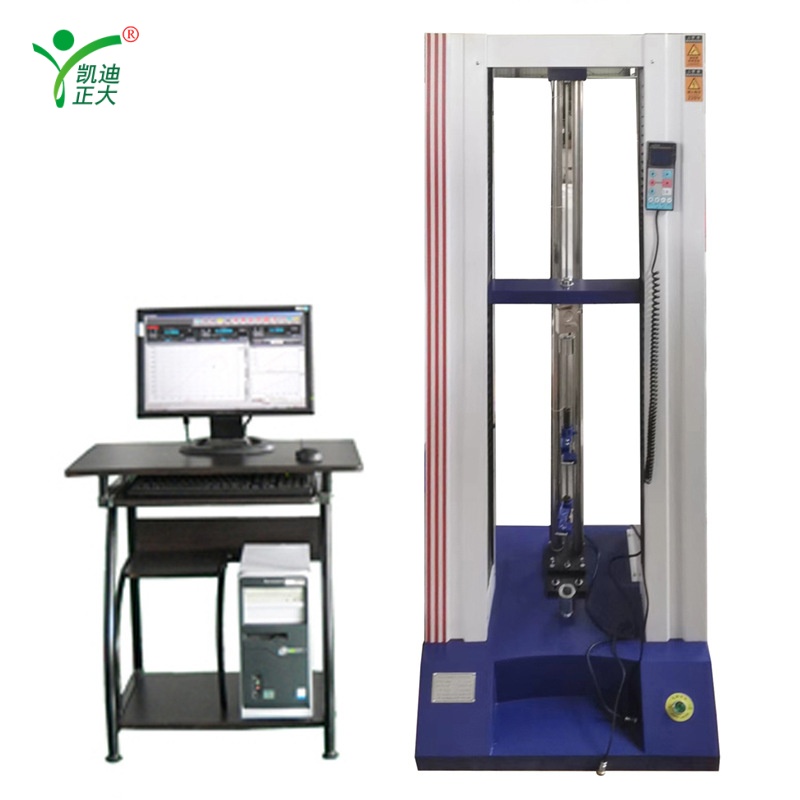

KDJS-5kN Universal Tensile Testing Machine for Plastic, Rubber & Metal
KDJS-5kN Universal Tensile Testing Machine for Plastic, Rubber & Metal

KDJS-5kN Universal Tensile Testing Machine for Plastic, Rubber & Metal

Applications:

Performs tensile, compression, bending, peeling, and tearing tests on plastics, rubber, metals, textiles, and composites. Ideal for material R&D, quality control, and lab testing to evaluate mechanical properties and ensure product compliance.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

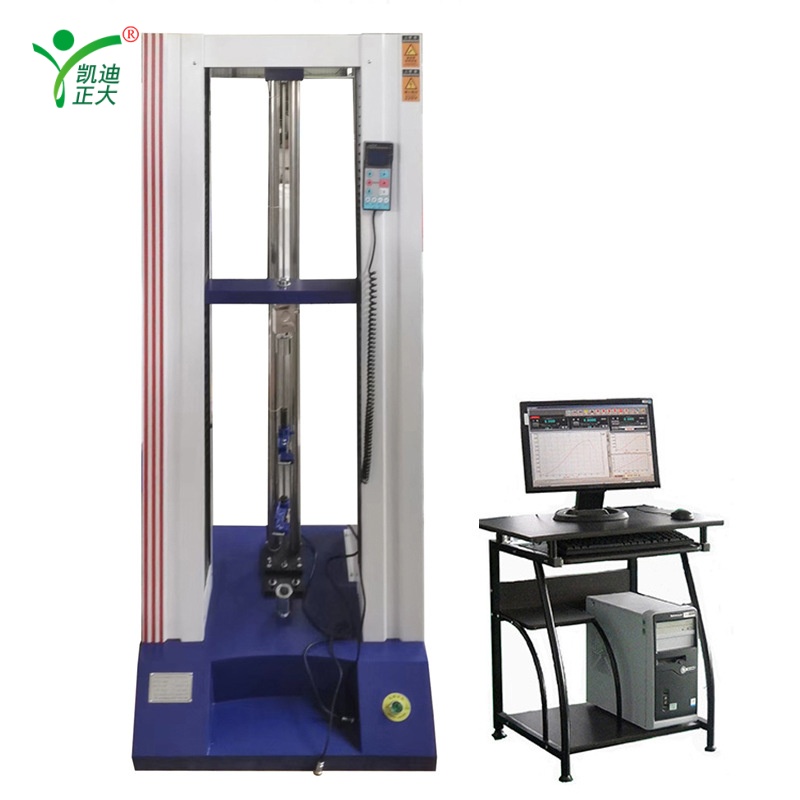

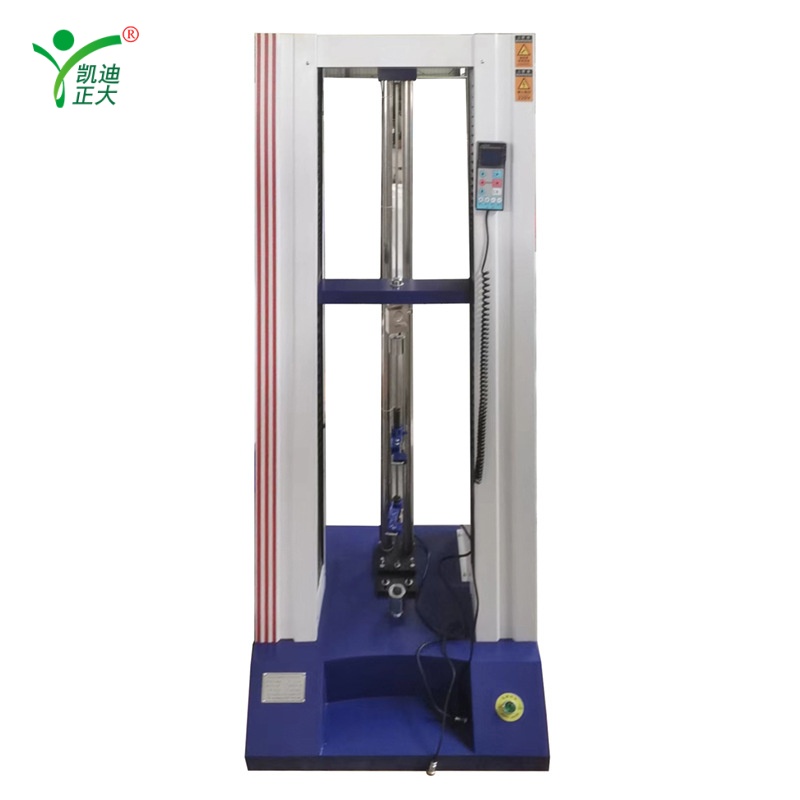

The KDJS-5kN is a dual-column universal tensile testing machine designed for precise mechanical property evaluation. It features a high-precision load cell (5000N capacity, Class I accuracy) and closed-loop servo control for stable speed regulation (0~500mm/min). The advanced UTM software supports multiple test standards (GB, ASTM, DIN), automatic data calculation, and customizable report generation. With multi-language support and data export to Excel, it provides reliable testing solutions for material science and manufacturing quality control.

Features:

  • Dual-column gantry structure for stable testing
  • High-precision load cell (5000N, Class I accuracy, 0.001N resolution)
  • Closed-loop servo control with adjustable speed (0~500mm/min)
  • Advanced UTM software supporting multiple test standards and data analysis
  • Multi-language interface (Simplified/Traditional Chinese, English)
  • Automatic data calculation (tensile strength, elongation, modulus, etc.)
  • Excel data export and customizable report generation
  • Comprehensive safety protection (overload, overtravel, power failure protection)

Parameter:

  • Force Resolution: 0.001–0.1N
  • System Accuracy: ≤±0.1%
  • Max Test Force: 5000N
  • Accuracy Class: Class I
  • Force Measurement Range: 1–100%
  • Force Indication Error: ≤0.3%
  • Displacement Resolution: 0.001mm
  • Displacement Error: ≤0.5%
  • Speed Range: 0–500mm/min (customizable)
  • Max Clamp Stroke: 800mm
  • Test Width: 350mm (standard)
  • Power Supply: AC220V±10% 50Hz
  • Net Weight: 150kg

Contact Us

Kaidi Zhengda Electric
Kaidi Zhengda

Oversea Sales Manager

Send Inquiry

Related Products

KDJS-5kN Universal Tensile Testing Machine for Plastic, Rubber & Metal
KDJS-5kN Universal Tensile Testing Machine for Plastic, Rubber & Metal

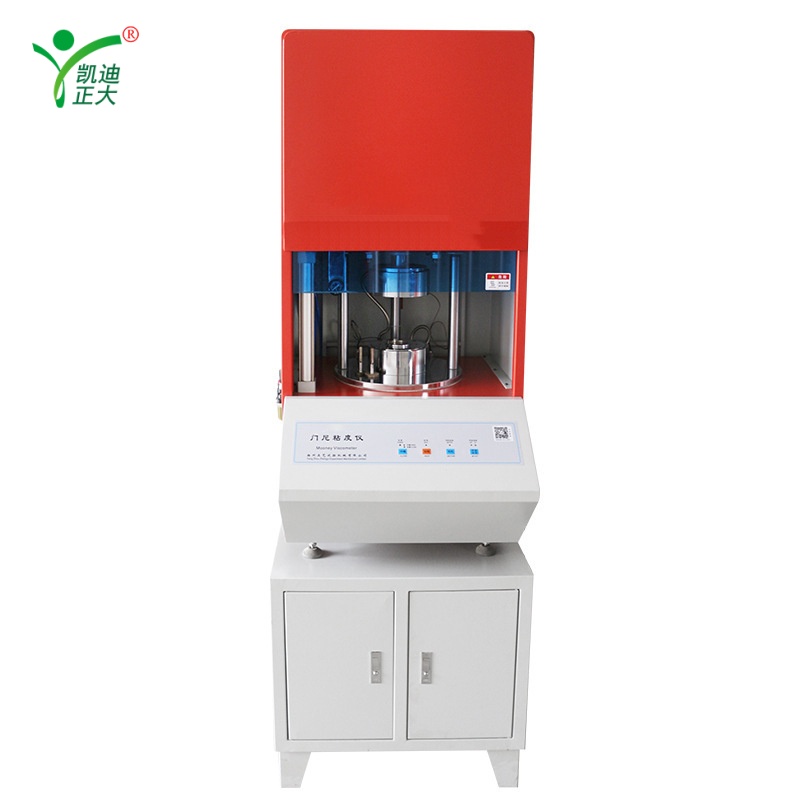

KDZD5289 Computerless Rheometer for Rubber Vulcanization Curve Testing
KDZD5289 Computerless Rheometer for Rubber Vulcanization Curve Testing

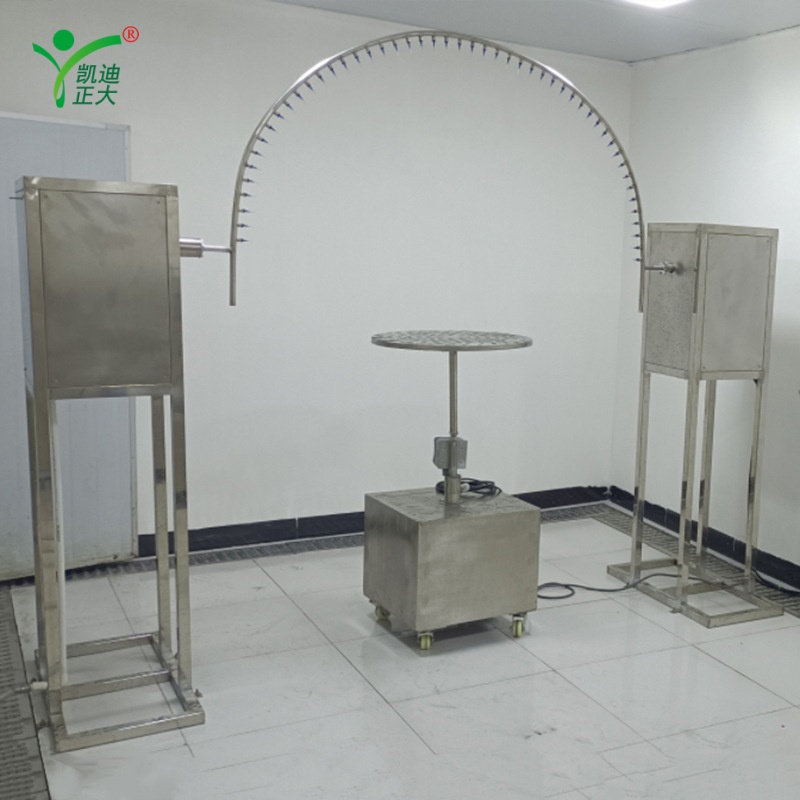

KDZD-IPX34 Rain Spray Test Chamber for IPX3/IPX4 Waterproof Testing
KDZD-IPX34 Rain Spray Test Chamber for IPX3/IPX4 Waterproof Testing

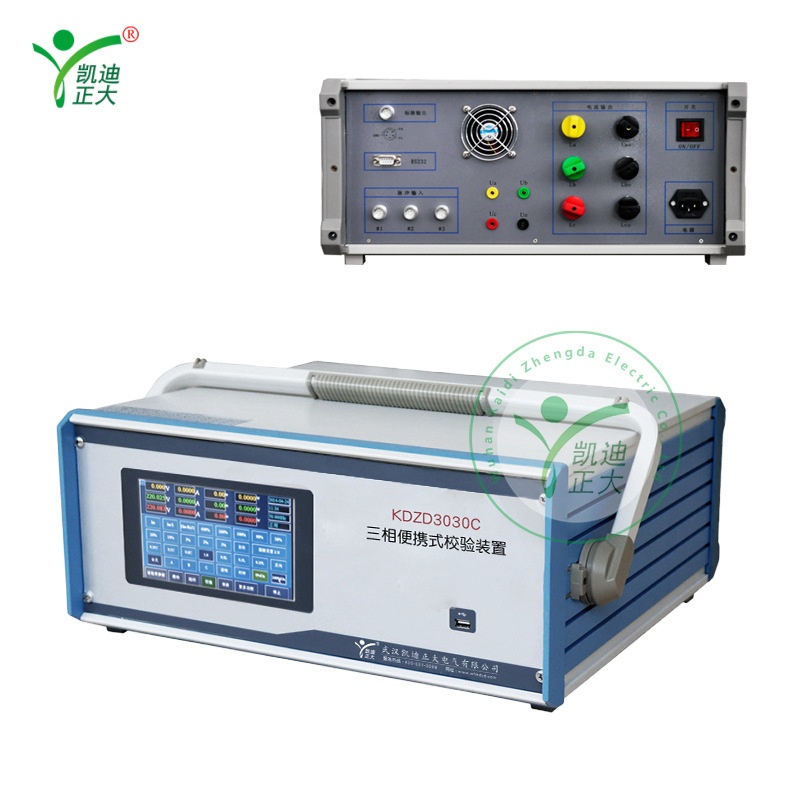

KDZD3030C Portable Three-Phase Energy Meter Calibration Device (0.05 Class)
