KDFZC-G wireless insulator tester
KDFZC-G wireless insulator tester

KDFZC-G wireless insulator tester

Applications:

Used to detect internal defects in 35kV~1000kV disc suspension insulators, measuring distribution voltage and insulation resistance under live or dead conditions. Ideal for power transmission line maintenance and lab testing to ensure grid safety.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

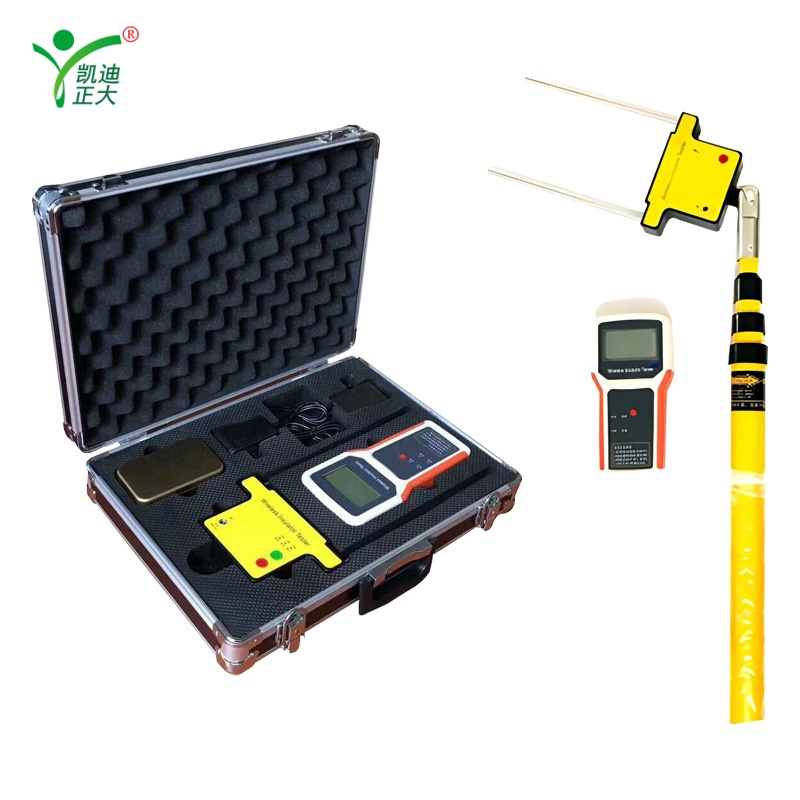

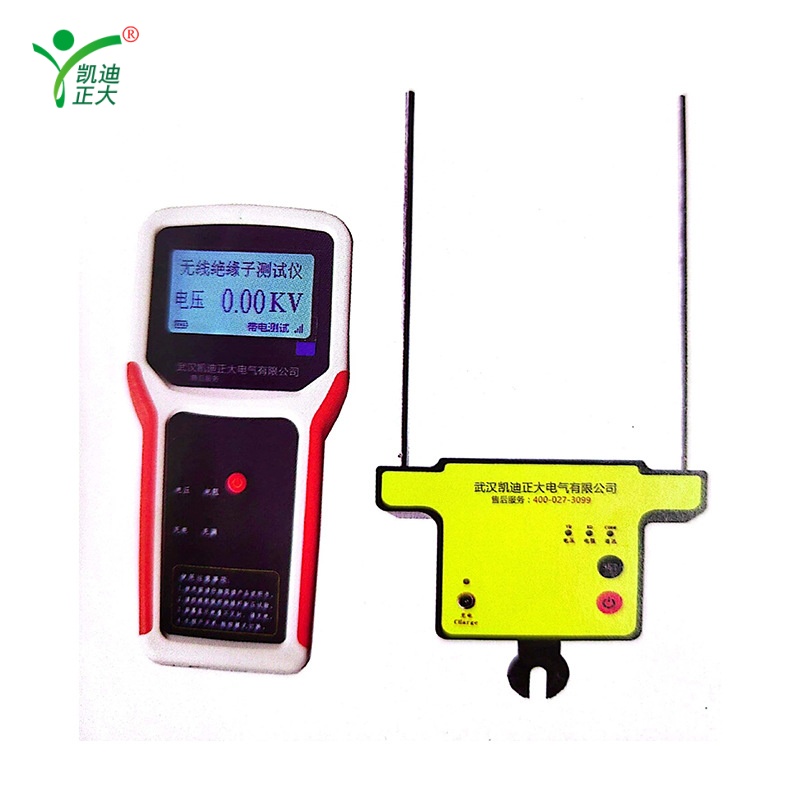

The KDFZC-G is a wireless insulator tester designed for power industry safety inspections. It uses wireless transmission technology to measure the distribution voltage and insulation resistance of insulators, enabling quick assessment of insulator health. The system includes a probe unit and handheld receiver, with voice prompts for easy operation. It supports both live and dead testing, complies with DL/T626-1997 standards, and features a high-voltage insulated telescopic rod for safe, efficient field use.

Features:

  • Wireless transmission for remote data collection (up to 100m)
  • Supports live and dead testing of 35kV~1000kV insulators
  • Voice prompt function for real-time data feedback
  • Rechargeable lithium battery (10 hours of continuous operation)

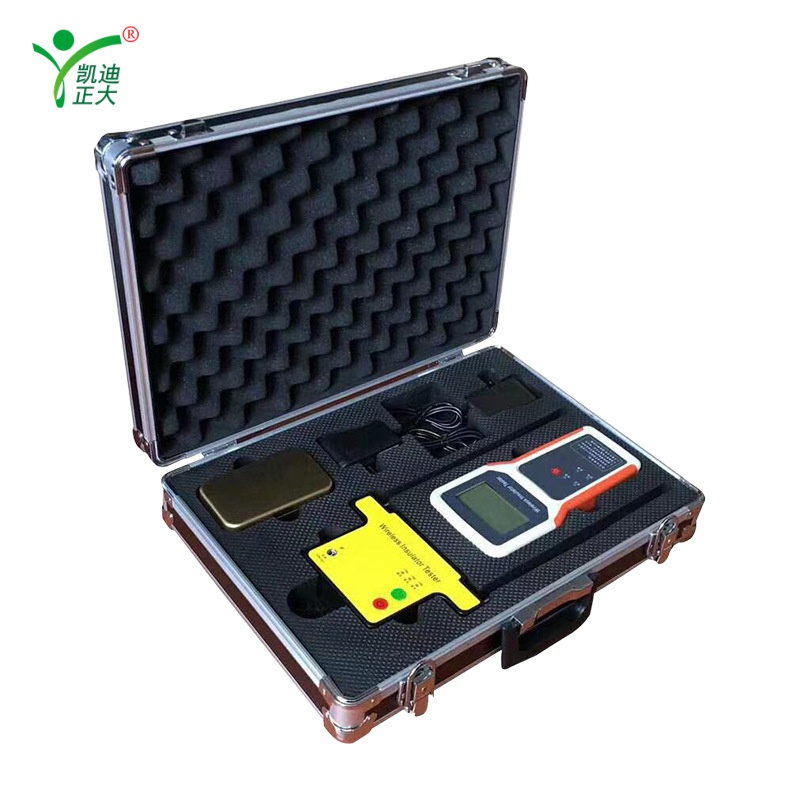

  • Compact, lightweight design with aluminum alloy case for portability
  • High-voltage insulated telescopic rod (anti-corrosion, high-temperature resistant)

Parameter:

  • Application Range: 35kV~1000kV disc suspension insulators (live/dead)
  • Voltage Measurement Range: 0~40kV
  • Voltage Accuracy: ±1% (reading +3 digits)
  • Voltage Resolution: 0.01kV
  • Resistance Measurement Range: 10~5000MΩ
  • Resistance Accuracy: ±10% (reading +5 digits)
  • Resistance Resolution: 1MΩ
  • Sampling Rate: 10 times/sec
  • Max Transmission Distance: 100m
  • Power Supply: 3.7V rechargeable lithium battery (transmitter/receiver)
  • Working Time: 10 hours (fully charged)
  • Operating Temperature: 0°C~40°C
  • Dimensions: 370mm×310mm×115mm (case)
  • Weight: 2.5kg

Contact Us

Kaidi Zhengda Electric
Kaidi Zhengda

Oversea Sales Manager

Send Inquiry

Related Products

KDFZC-G wireless insulator tester
KDFZC-G wireless insulator tester
KDZD910 Full Digital Ultrasonic Flaw Detector for NDT of Metals & Welds
KDZD910 Full Digital Ultrasonic Flaw Detector for NDT of Metals & Welds

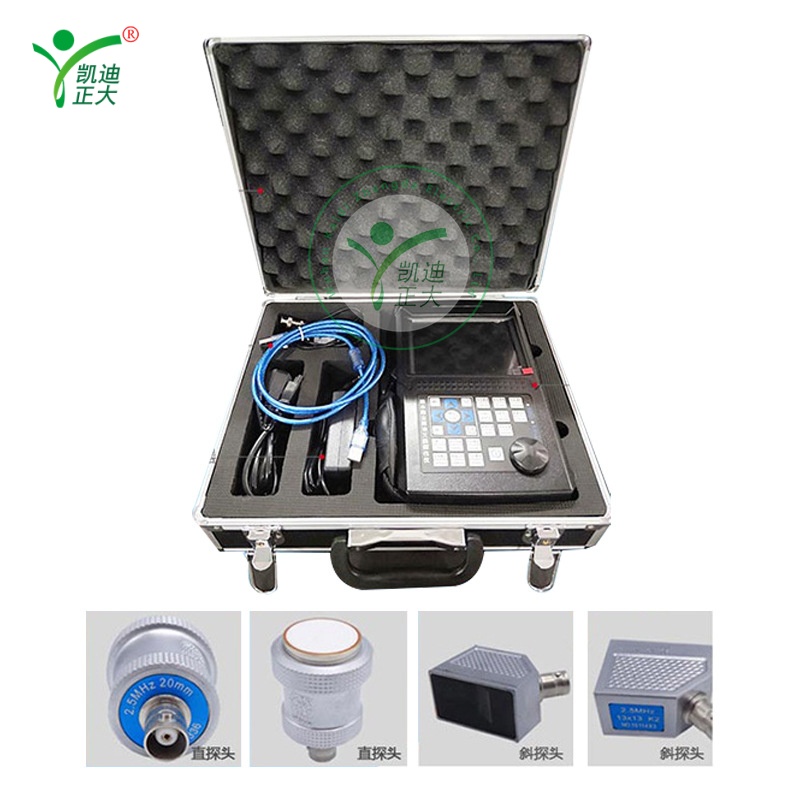

KDZD958 Digital Ultrasonic Flaw Detector for Metal Weld & Casting Testing
KDZD958 Digital Ultrasonic Flaw Detector for Metal Weld & Casting Testing

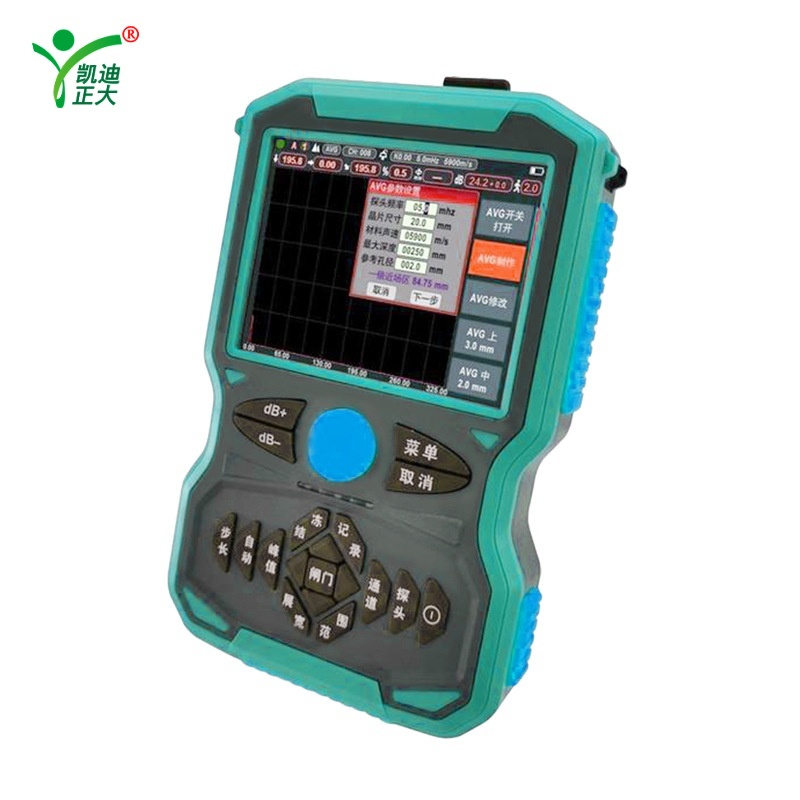

KDZD980 ultrasonic flaw detector
