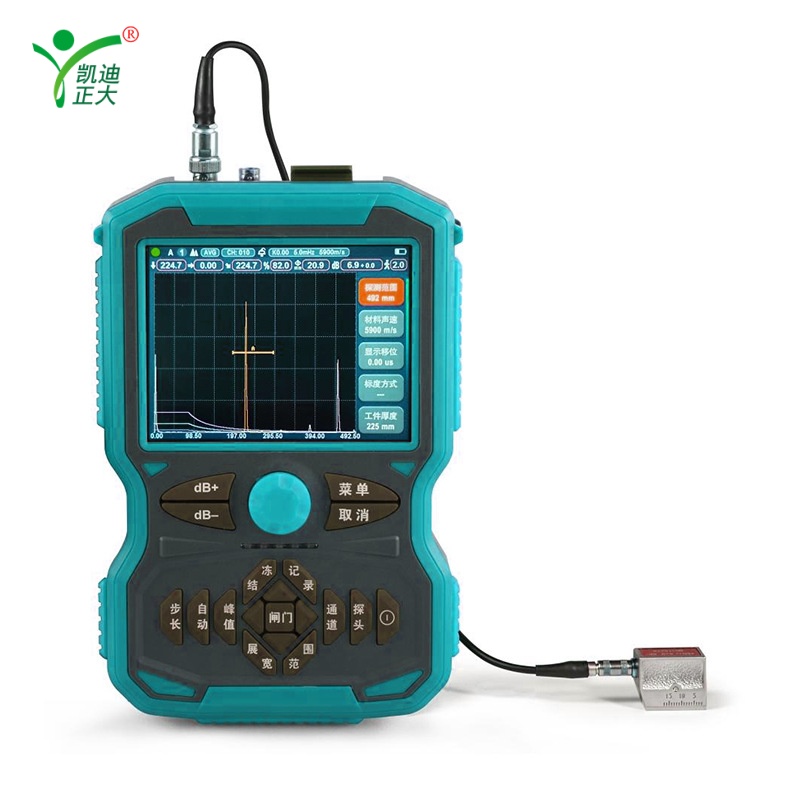

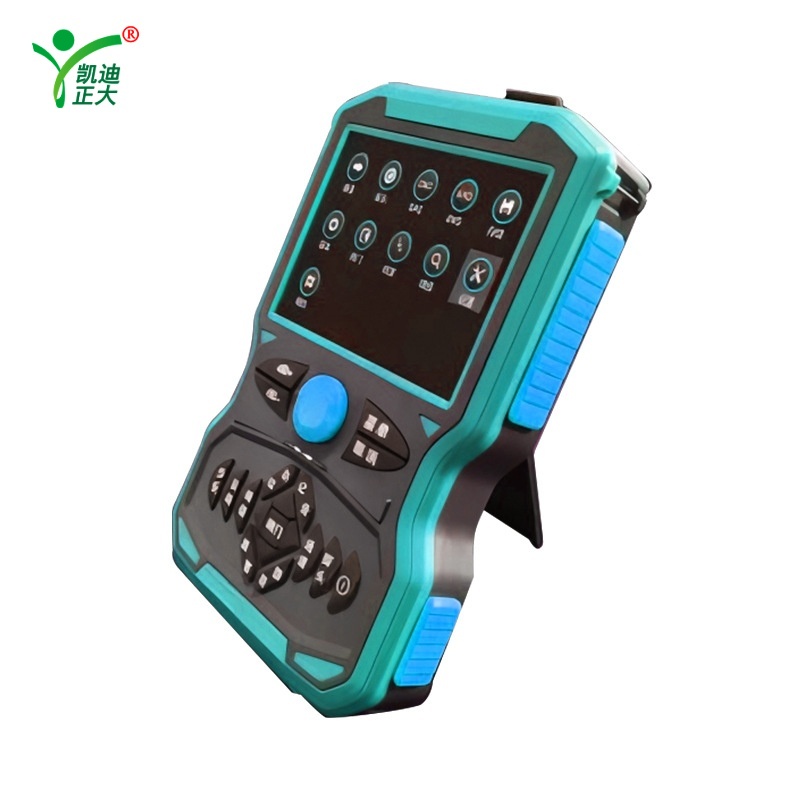

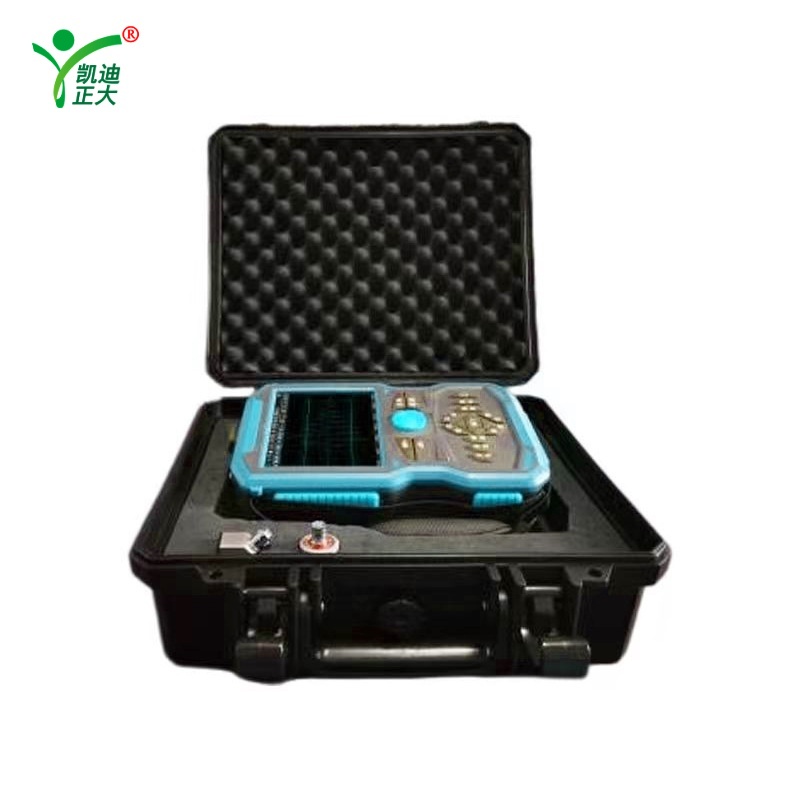

KDZD980 ultrasonic flaw detector

Applications:

Ideal for non-destructive testing (NDT) of metal structures, steel pipes, welds, and cracks. Used in manufacturing, construction, and power industries to detect internal defects and ensure structural integrity.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

The KDZD980 is a high-performance portable ultrasonic flaw detector designed for industrial NDT. It features a 10-bit high-speed AD converter for high sensitivity and resolution, with a detection range of up to 10m in steel and 20m in transmission mode. Equipped with a high-brightness display and intuitive interface, it supports automatic calibration, DAC/AVG curve generation, and 500 independent flaw data storage. With IP65 protection and 8-hour battery life, it’s built for reliable field operation in harsh environments.

Features:

High sensitivity & resolution: 10-bit AD converter, sampling rate up to 150MHz
Wide detection range: 10m (steel) / 20m (transmission, expandable)
Intuitive operation: one-key auto-calibration, guided workflow
Advanced analysis: DAC/AVG curve generation, 500 flaw data storage
Rugged IP65 design: dustproof, waterproof, and shock-resistant
Long battery life: 8-hour continuous operation, 2-hour fast charging

Parameter:

Detection Range: 10m (steel), 20m (transmission, expandable)
Sound Velocity Range: 1000~15000m/s
Repetition Frequency: 20~1500Hz
Dynamic Range: ≥38dB
Vertical Linearity Error: ≤2.5%
Horizontal Linearity Error: ≤0.2%
Resolution: >40dB (SP14)
Probe Types: Straight, angle, dual, through-transmission
Power Supply: DC 9V
Battery Life: 8 hours (extendable to 15 hours)
Dimensions: 240×153×38mm
Weight: 0.95kg
Protection: IP65

Kaidi Zhengda Electric

Products

KDZD980 ultrasonic flaw detector

Profile:

Features:

Parameter:

Contact Us

Kaidi Zhengda

Contact Us

About Us

Compnay Info

Quick Contact

+86-027-83551828

Kaidi Zhengda Electric

Products

KDZD980 ultrasonic flaw detector

Profile:

Features:

Parameter:

Contact Us

Kaidi Zhengda

Related Products

KDZD980 ultrasonic flaw detector

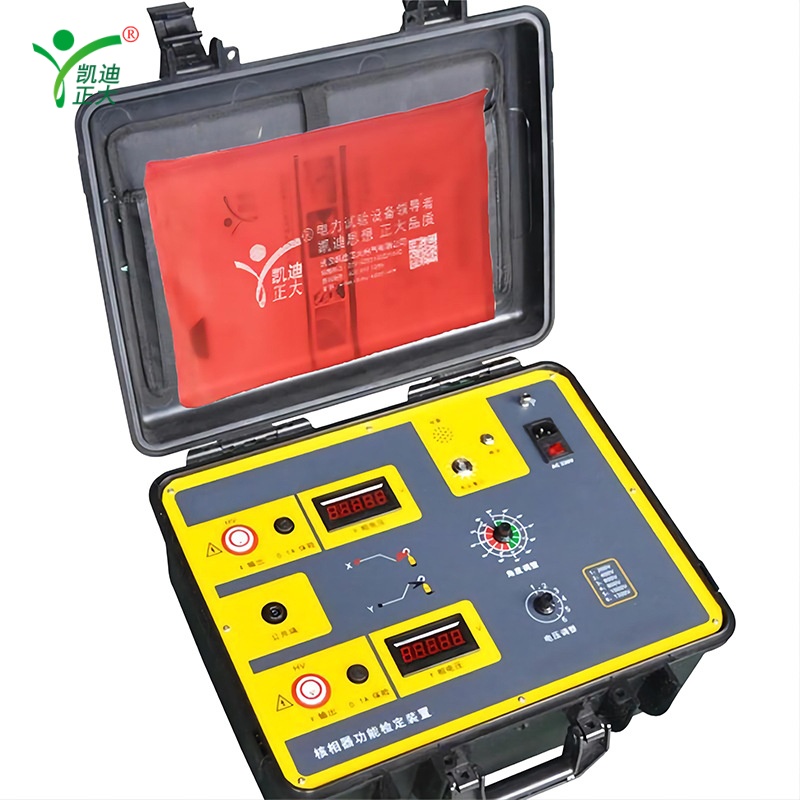

KDJS-HX High Precision Phase Verifier Calibrator with Overcurrent/Overvoltage Protection

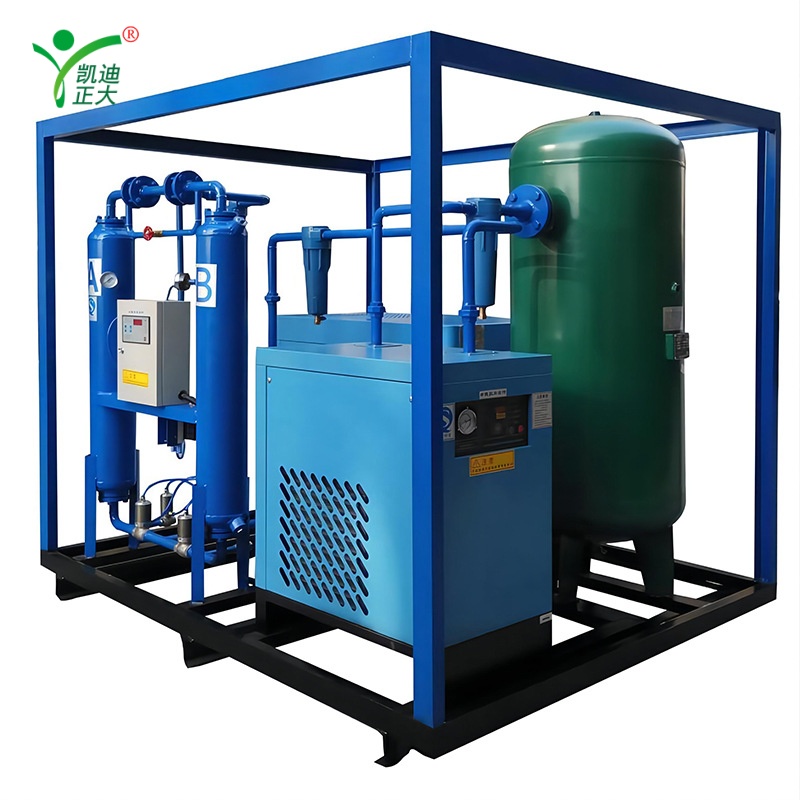

KDZD-GZ Dry Air Generator for Transformer Drying & Compressed Air Systems

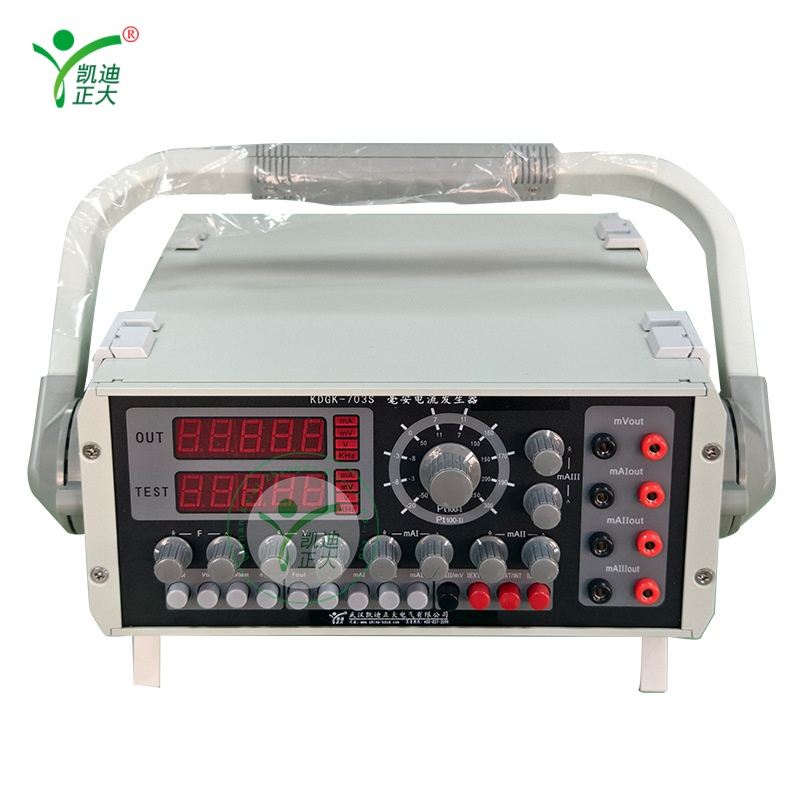

KDGK-703S Portable Multifunctional Process Calibrator (Milliamp Generator)
