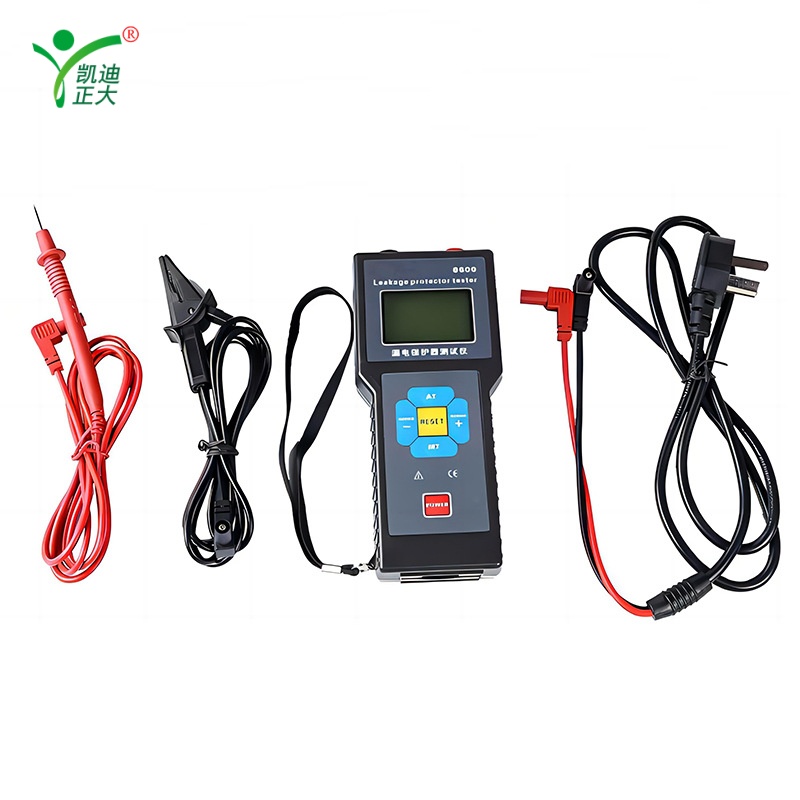

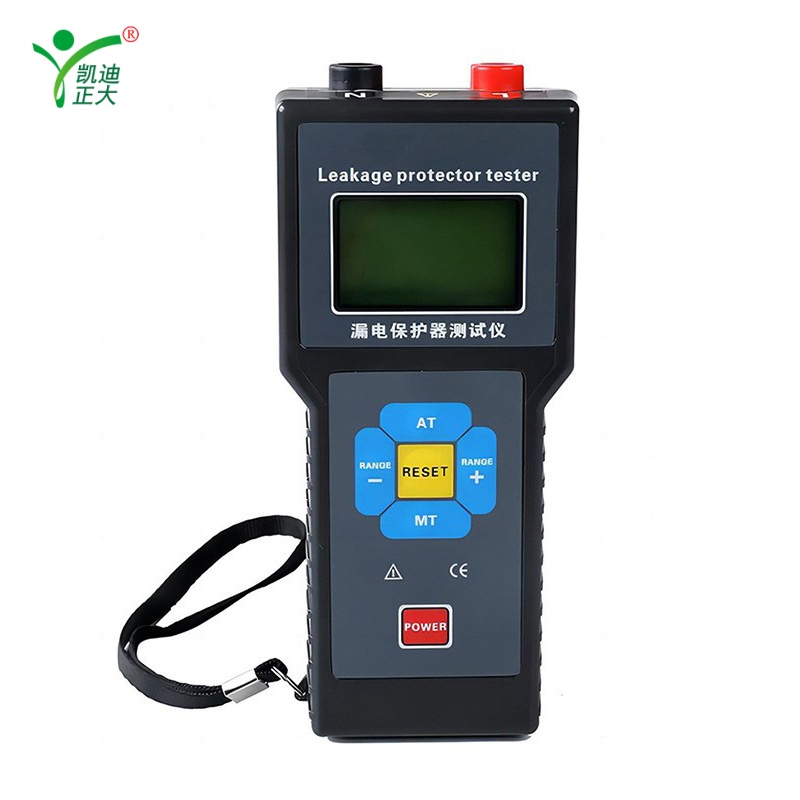

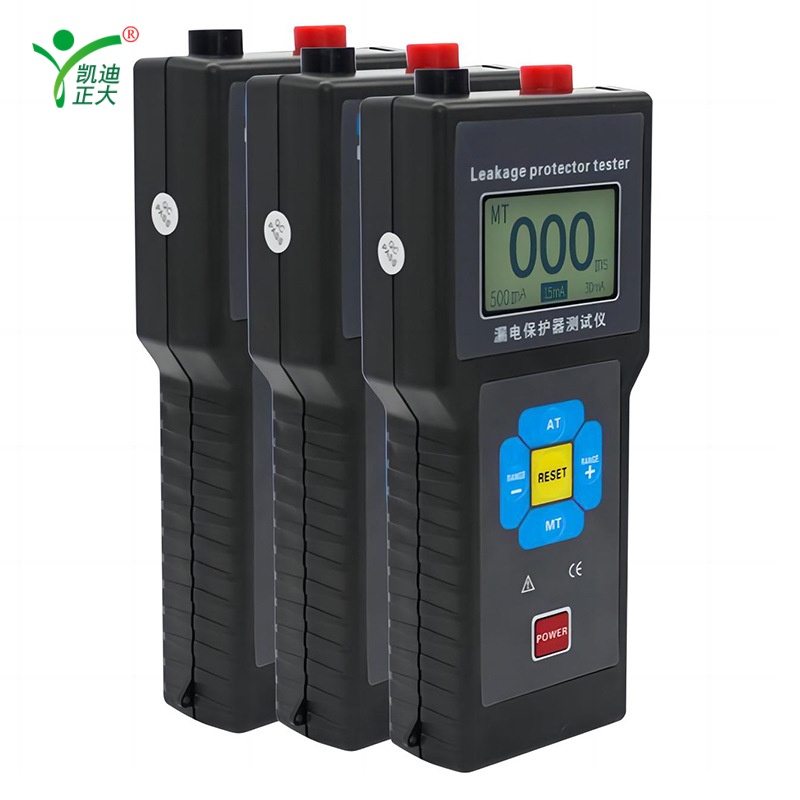

KDZD8600 Portable RCD / Leakage Protector Tester
KDZD8600 Portable RCD / Leakage Protector Tester

KDZD8600 Portable RCD / Leakage Protector Tester

Applications:

Designed for on-site and offline testing of residual current devices (RCDs) and leakage protectors. Compliant with GB16917-1997, it’s ideal for electrical safety inspection departments and power supply companies to verify RCD performance and ensure electrical safety.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDZD8600 is a high-efficiency, portable leakage protector tester engineered for electrical safety inspections. It supports 10 current ranges from 30mA to 500mA to accommodate various RCD types, enabling both online and offline testing of tripping current, non-tripping current, and tripping time. Features include automatic detection, data retention, low battery alerts, and auto-power-off after 5 minutes of inactivity. Its compact, lightweight design makes it easy to carry for field use, delivering reliable results for electrical safety compliance.

Features:

  • 10 selectable leakage current ranges (30mA~500mA) for versatile RCD testing
  • Supports both online and offline testing of tripping current, non-tripping current, and tripping time
  • Automatic detection, data storage, and low battery reminder functions
  • 5-minute auto power-off to extend battery life
  • Direct measurement of RCDs with zero-sequence current transformers
  • Compact, lightweight design for easy portability and field operation

Parameter:

  • Function: Measures tripping current, non-tripping current, and tripping time of RCDs
  • Power Supply: DC 6V (4×LR6 1.5V alkaline batteries)
  • Test Line Voltage: AC 250V max
  • Rated Voltage: AC 220V
  • Leakage Current Steps: 15, 30, 50, 75, 100, 150, 200, 250, 300, 500mA
  • Tripping Time Range: 0~2000ms (resolution: 1ms)
  • Accuracy: ±0.5% for tripping time; ±1.0% for current
  • Display: 128×64 dot LCD
  • Dimensions: 170×75×30mm (instrument only)
  • Weight: 290g (with battery); 350g (total with bag)
  • Operating Environment: -10°C~40°C, ≤80%RH (non-condensing)
