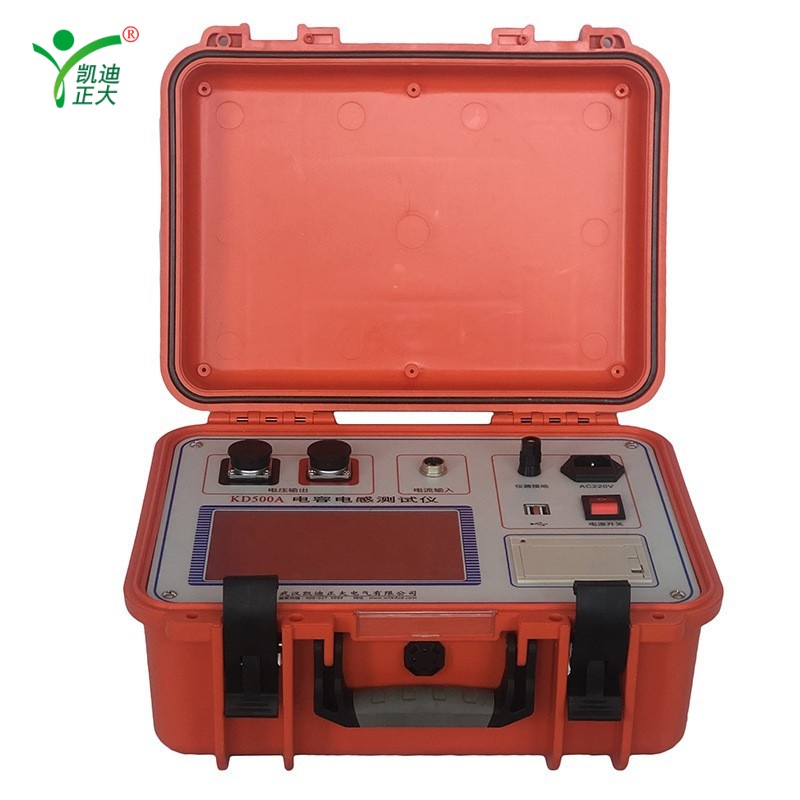

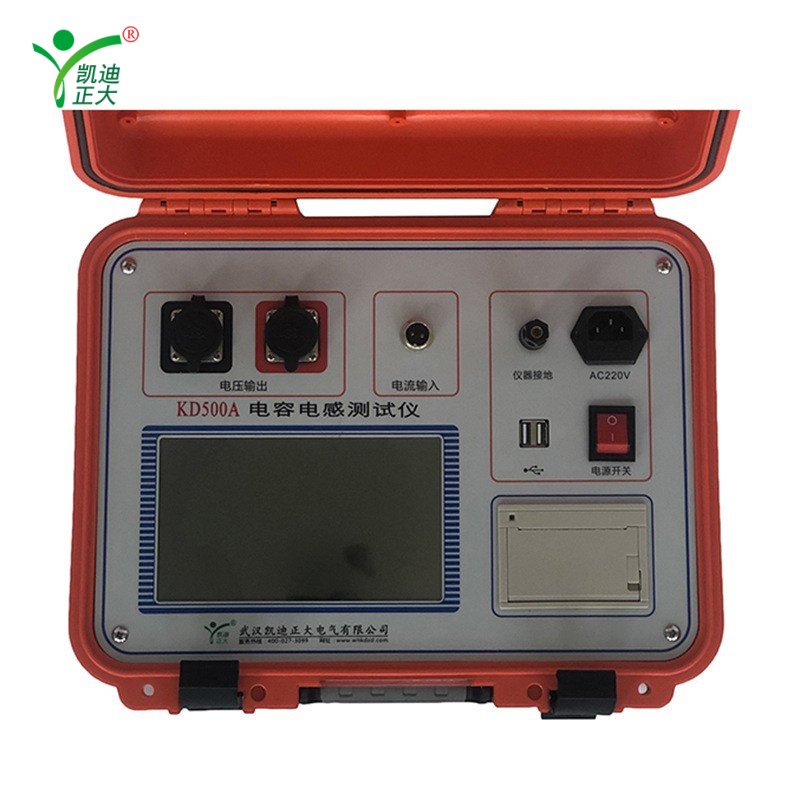

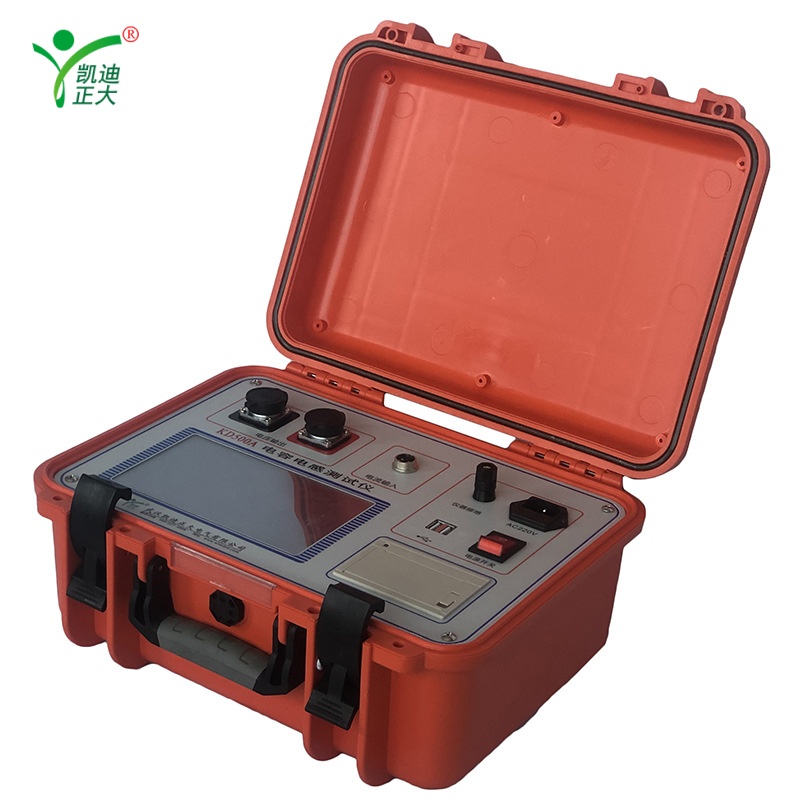

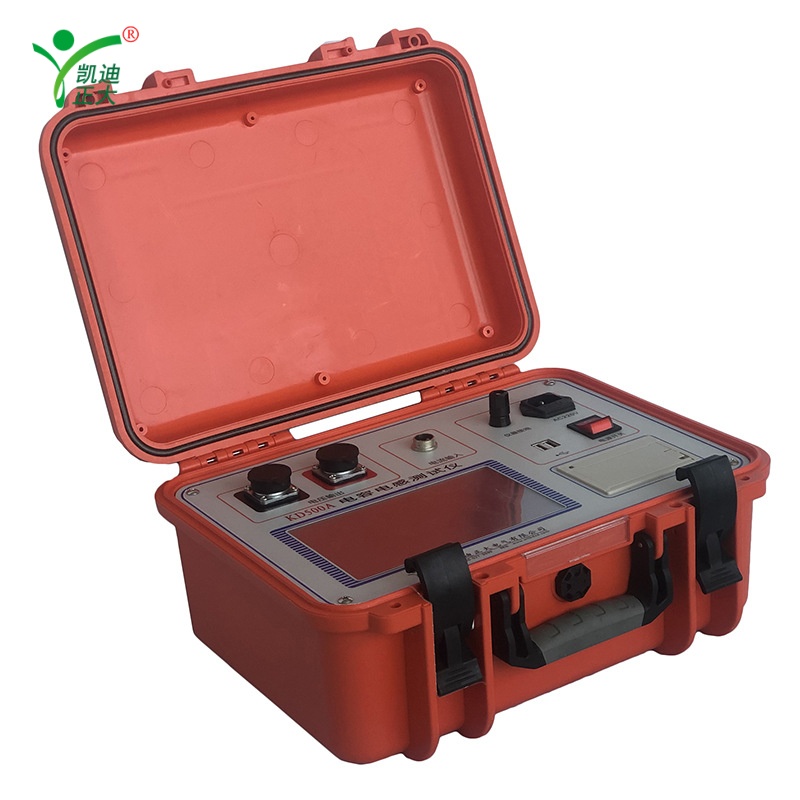

KD500A Automatic Capacitance & Inductance Tester (Capacitance Bridge)
KD500A Automatic Capacitance & Inductance Tester (Capacitance Bridge)

KD500A Automatic Capacitance & Inductance Tester (Capacitance Bridge)

Applications:

Used for precise measurement of capacitance, inductance, current, and resistance in power systems. Ideal for substation maintenance, power quality testing, and electrical equipment diagnostics to ensure component performance and system stability.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KD500A is a fully automatic capacitance and inductance tester designed for power industry applications. It integrates capacitance, inductance, current, and resistance measurement into one portable unit, featuring a large LCD screen with full Chinese display and a built-in high-speed panel printer for instant result output. With a rugged waterproof case, it operates reliably in harsh field environments, offering high accuracy and wide measurement ranges to meet diverse testing needs.

Features:

  • Multi-function measurement: capacitance, inductance, current, and resistance
  • Wide measurement ranges with high precision for all parameters
  • Portable rugged case for field and lab use
  • Full Chinese LCD display for intuitive operation
  • Built-in panel printer for instant data output
  • Stable performance under extreme environmental conditions

Parameter:

  • Capacitance Measurement:
    • Range: 0.1μF ~ 3,300μF / 5 ~ 20,000kvar
    • Accuracy: ±(1.0% reading + 0.02μF)
    • Resolution: 0.001μF
  • Current Measurement:
    • Range: 0~20A
    • Accuracy: ±(3.0% reading + 0.05A)
    • Resolution: 0.01A
  • Inductance Measurement:
    • Range: 0.2mH~5mH (small) / 5mH~10H (large)
    • Reactance: 50mΩ~20KΩ
    • Accuracy: ±(3.0% reading + 0.05mH)
    • Resolution: 0.01mH
  • Resistance Measurement:
    • Range: 50mΩ~1Ω (small) / 1Ω~20KΩ (large)
    • Accuracy: ±(3.0% reading + 0.05Ω)
    • Resolution: 0.01Ω
  • Power Supply: AC 220V±10%, 50Hz
  • Output: 2V/20V/500VA
  • Operating Environment: -10°C~+50°C, ≤90%RH
  • Dimensions: 400×320×220mm
  • Weight: 8kg

Contact Us

Kaidi Zhengda Electric
Kaidi Zhengda

Oversea Sales Manager

Send Inquiry

Related Products

KD500A Automatic Capacitance & Inductance Tester (Capacitance Bridge)
KD500A Automatic Capacitance & Inductance Tester (Capacitance Bridge)

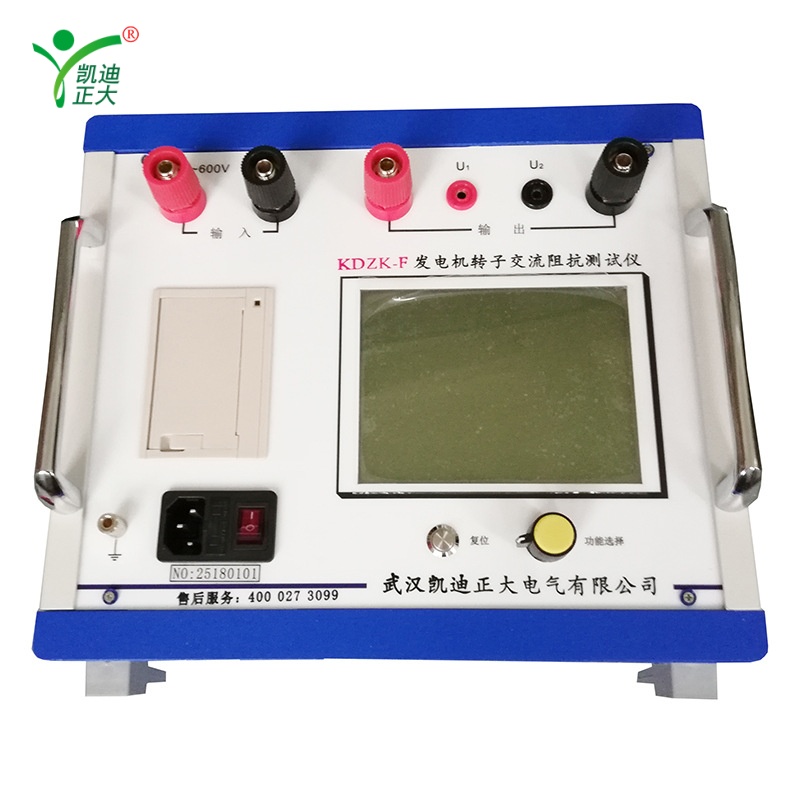

KDZK-F Generator Rotor AC Impedance Tester for Short Circuit Detection
