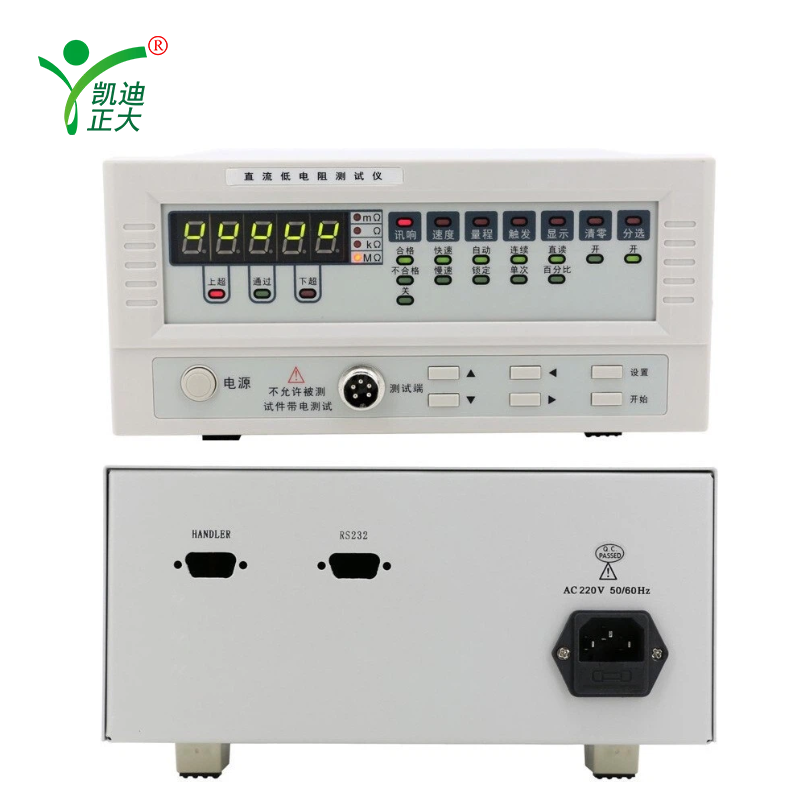

KD2511N DC Low Resistance Tester
KD2511N DC Low Resistance Tester

KD2511N DC Low Resistance Tester

Applications:

KD2511N DC Low Resistance Tester is ideal for measuring low DC resistance of cable joints, relay contacts, connectors, wires, PCB traces, motor/transformer/generator coils. Suitable for manufacturing quality control and maintenance, featuring high speed and precision to improve work efficiency.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

A compact tester with 32-bit CPU and SMD technology, offering 0.1% accuracy and 1μΩ resolution. It supports 7 auto/manual ranges, 3-level sorting, multiple trigger modes and remote control via various interfaces, ensuring easy operation and reliable performance.

Features:

  1. 32-bit core processor ensures high measurement accuracy and stable performance.
  2. Bright green LED nixie tube displays 4.5-digit readings for clear and quick viewing.
  3. Intuitive display of sorting results, test status and range for convenient operation.
  4. Wide measurement range of 10μΩ–20KΩ with 7 auto/manual selectable ranges.
  5. Self-stabilizing zero design eliminates the need for zero clearing during low resistance testing.
  6. Fast test speed of up to 15 times/sec to significantly improve work efficiency.
  7. 3-level sorting function: qualified, over upper limit and below lower limit.
  8. Multiple trigger modes: internal, external and manual trigger for flexible application.

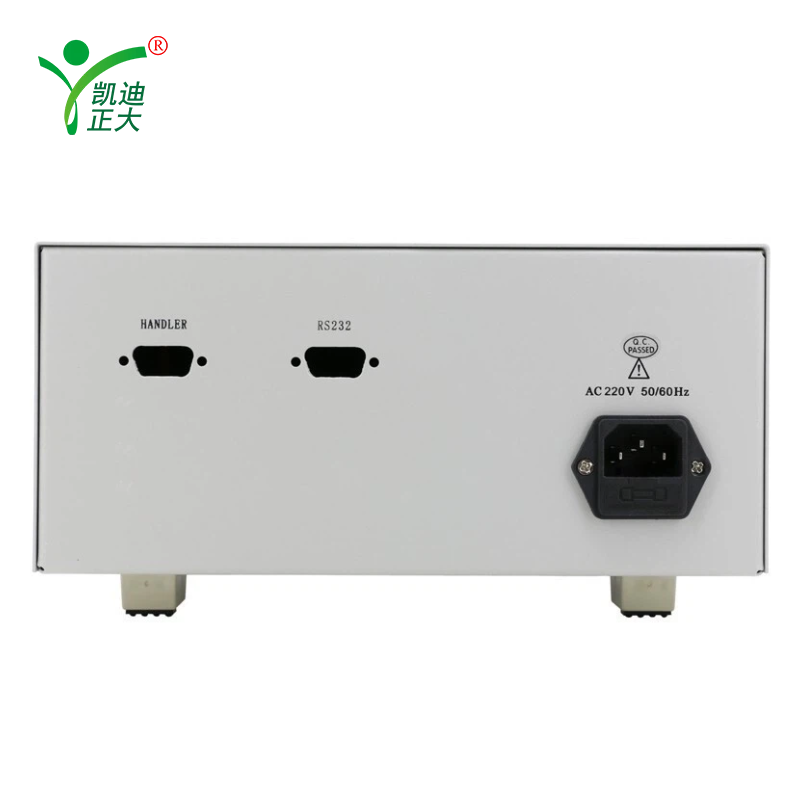

  9. Equipped with HANDLER, RS232C and RS485 interfaces for remote control.
  10. Real-time saving of set data to avoid repeated configuration.

Parameter:

  1. Measuring parameter: DC resistance
  2. Measurement range: 10μΩ–20KΩ
  3. Test accuracy: ≤20mΩ: ±0.2%; >20mΩ: ±0.1%
  4. Resolution: 1μΩ
  5. Test speed: Fast: 15 times/sec; Slow: 8 times/sec
  6. Test terminals: 4-terminal
  7. Range switching: Auto/Lock
  8. Trigger modes: Internal/External/Manual
  9. Zero clearing mode: Self-stabilizing zero (zero clearing available if needed)
  10. Display: Bright green LED nixie tube, 4.5-digit reading
  11. Calibration: Short-circuit zero clearing across full range
  12. Comparator: 3-level sorting (qualified, over upper limit, below lower limit)
  13. Signal output: Over upper limit, qualified, below lower limit
  14. Audible prompt: Qualified, unqualified, off (selectable)
  15. Limit setting mode: Absolute upper/lower limit; Percentage upper/lower limit + nominal value
  16. Interfaces: HANDLER, RS232C, RS485
  17. Dimensions (L×W×H): 330mm×215mm×86mm
  18. Net weight: Approximately 3.6kg
