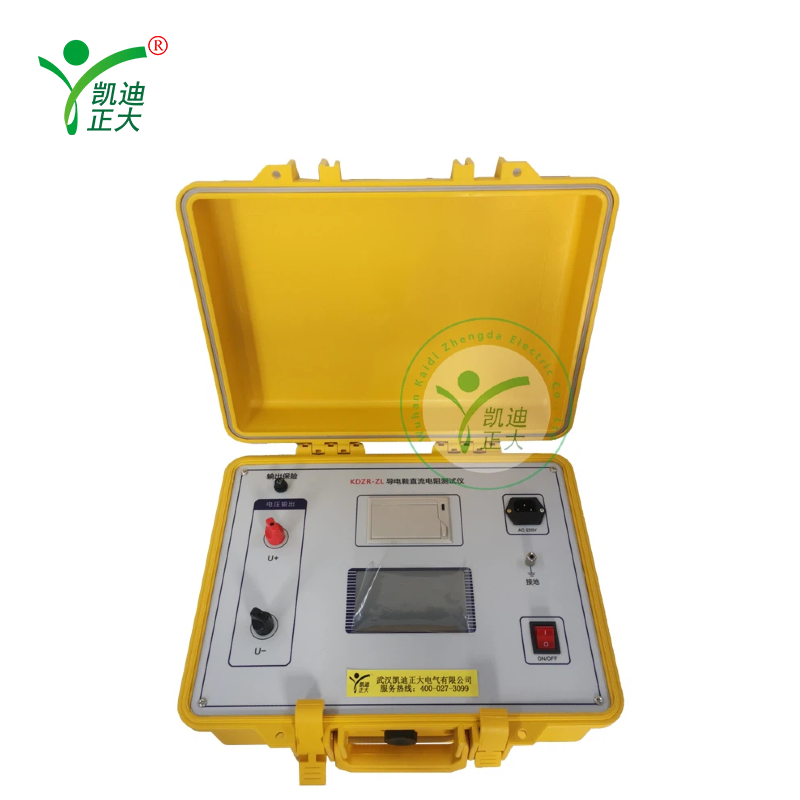

Profile:
Small size, light weight, high accuracy.
Touch screen integrated design, simple operation, one-click test.
Equipped with micro printer, you can print in real time or query
Features:
1. High-precision single-chip microcomputer system synchronous acquisition of voltage and current, high accuracy of test data;
2.20Ω~999.9kΩ wide resistance measurement range;
3. Display resistance, current and test voltage, and judge whether the test product is qualified or not;
4. With short circuit protection function, short circuit warning;
5. Small size, light weight;
Parameter:
1. Measuring range: 20Ω~999.9kΩ;
2. Test voltage: 100V
3. Test power: within 20W;
4. Measurement accuracy:
Measuring range: 0.02KΩ ~ 1KΩ; Measurement accuracy: 2.0%RD+0.2%FS; Resolution: 0.001KΩ
Measuring range: 1KΩ ~ 20.0KΩ; Measurement accuracy: 1.0%RD+0.2%FS; Resolution: 0.1KΩ
Measuring range: 20KΩ ~ 999.9KΩ; Measurement accuracy: 2%RD+0.2%FS; Resolution: 0.1KΩ
5. Resolution: Current: 0.1mA; Voltage: 0.01V;
6. Working environment: Temperature: 0~50C; Humidity: <85%;
7. Power supply: AC 220V, 50HZ;
8. Weight: less than 4.0kg;
9. Size: 320mm*280mm*150mm
