When testing the insulation resistance of large capacity power equipment, the insulation resistance value is related to the duration of pressurization. The longer the pressurization time, the higher the insulation resistance value. This phenomenon is called insulation absorption. To understand the insulation performance of the test sample, it is necessary to first conduct absorption ratio and polarization index tests to provide safety guarantees for the next insulation performance tests such as leakage, dielectric loss, partial discharge, etc. Our company has specially launched the KD305 insulation resistance tester in accordance with the power standardization regulations, to conduct insulation, absorption ratio, polarization index withstand voltage leakage tests on power equipment, providing accurate preliminary judgments for a series of insulation tests.

Due to the direct impact of charging current on the insulation value testing of high-capacity capacitive samples, a large charging current is required. The stronger the charging ability, the closer the absorption ratio test value is to the true value. The short-circuit current of KD305Y is greater than 5mA, overcoming the drawbacks of small short-circuit current, inaccurate testing, and susceptibility to interference of ordinary megohmmeters. KD305 adopts timely voltage and current sampling for division operation, so even if the voltage changes during testing, the resistance value calculated by Ohm's theorem is accurate.

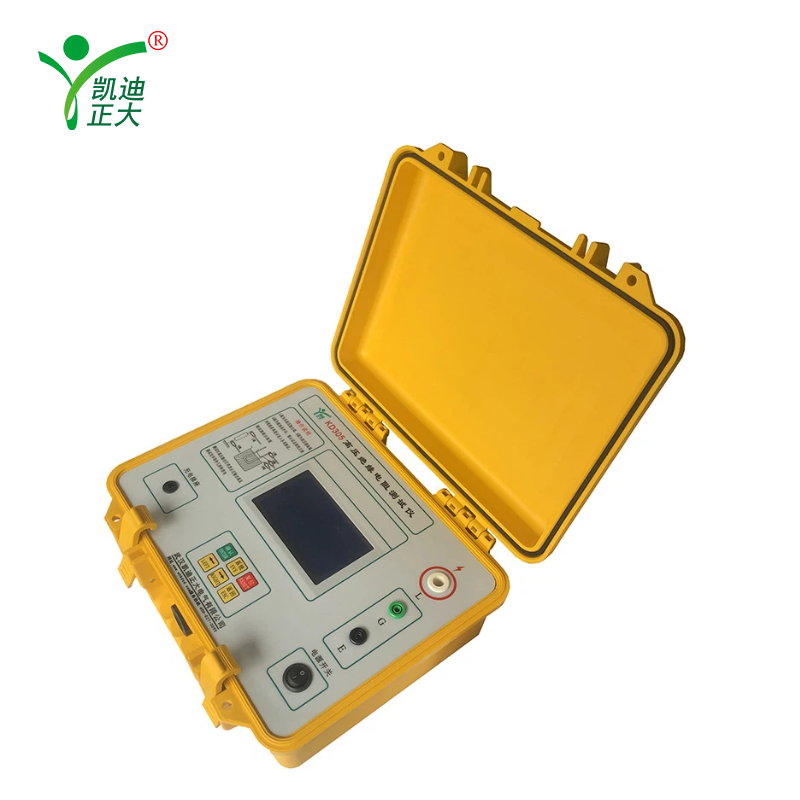

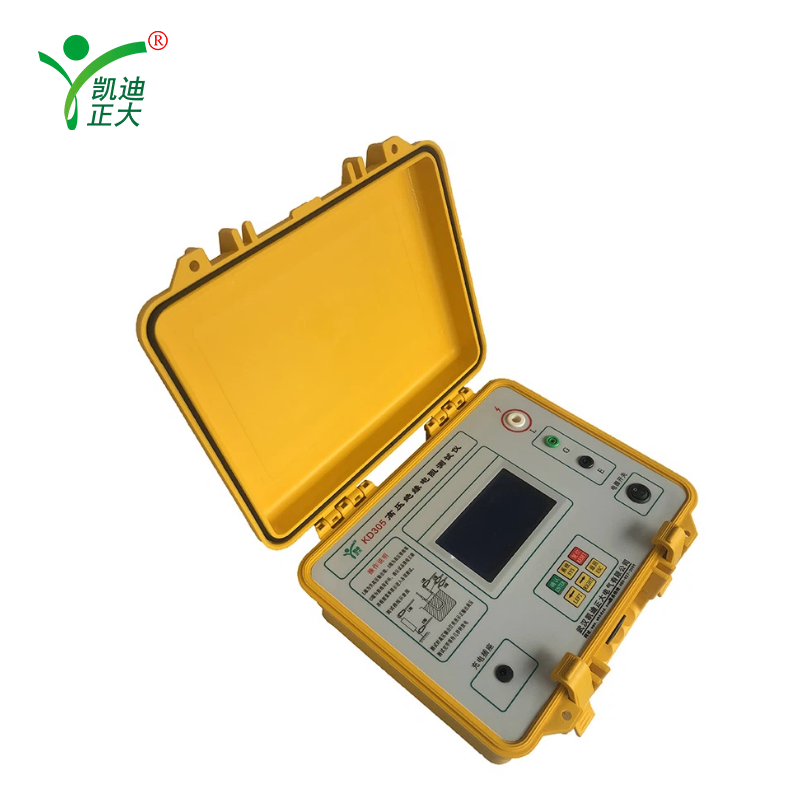

The KD305Y insulation resistance tester adopts a microcontroller control process, human-machine interface dialogue, easy to carry, and simple to operate; Equipped with high-performance and high-capacity rechargeable batteries, it can be used for both AC and DC, and is equipped with undervoltage protection and battery overcharge protection. When testing large capacitive loads with instruments, the automatic discharge speed is fast after the test is completed, and the discharge process is monitored in real time. This instrument can automatically display the current time, save historical test data and time, providing convenience for testing personnel.

1. Output voltage:
-DC500V，-DC1000V，-DC2500V，-DC5000V，-DC10000V
Error: ± 5% FS (FS is the full-scale value);
Meet the requirements for fast charging of capacitive loads
Short circuit current of 5mA, automatic rapid discharge function, and residual voltage display


2. Functional parameters:
Can automatically switch range, easy to read
Resistance display range: 0 Ω to 35T
500V,0-10G
1000V,0-10G，
2500V,0-500G,
5000V,0-10T,
10000V,0-35T,
Simulation progress bar displays 0-10T
Capacitor discharge: from 5000 V to 50 V,
Protection level: IP65 (closed lid), IP40 (open lid)
Safety: Compliant with IEC61010-1 and CATIA V600 V requirements


3. Accuracy range of resistance testing
1 M~10M Ω error: ± 5% FS (FS is the full-scale value);
10M-10G Ω error: ± 3% FS (FS is the full-scale value);
Error between 10G and 100G Ω: ± 5% FS (FS is the full-scale value);
100G-500G Ω error: ± 20% FS (FS is the full-scale value);


4. Voltage testing function, automatic discharge function
The instrument automatically detects residual voltage after testing and discharges automatically,
Protect equipment and personal safety.
DC voltage test: 600V
AC voltage test: 600V


5. Other functions
1) Automatic timing function (maximum timing of 600S), the instrument buzzer beeps briefly once per second, with an emphasis on beeping briefly every 15 seconds.
2) Automatically measure, calculate, and display the absorption ratio and polarization index values of R15S, R60S, and R600S.
3) Entering the system menu, you can choose to view records, modify time, short-circuit current, and filter settings.
4) Strong anti-interference ability, stable and reliable readings.
5) Complete protection functions ensure operational safety.


6. Usage conditions
Environmental temperature: 0 ℃ -40 ℃
Relative humidity: ≤ 70% RH


7. Scope of power supply application
Communication: 220V ± 10% charging (built-in large capacity lithium battery, AC/DC dual-use, portable)
Automatically shut down when the battery is low.


8. Volume and weight
Volume: 280mm × 210mm × 100mm;
Weight:<5kg

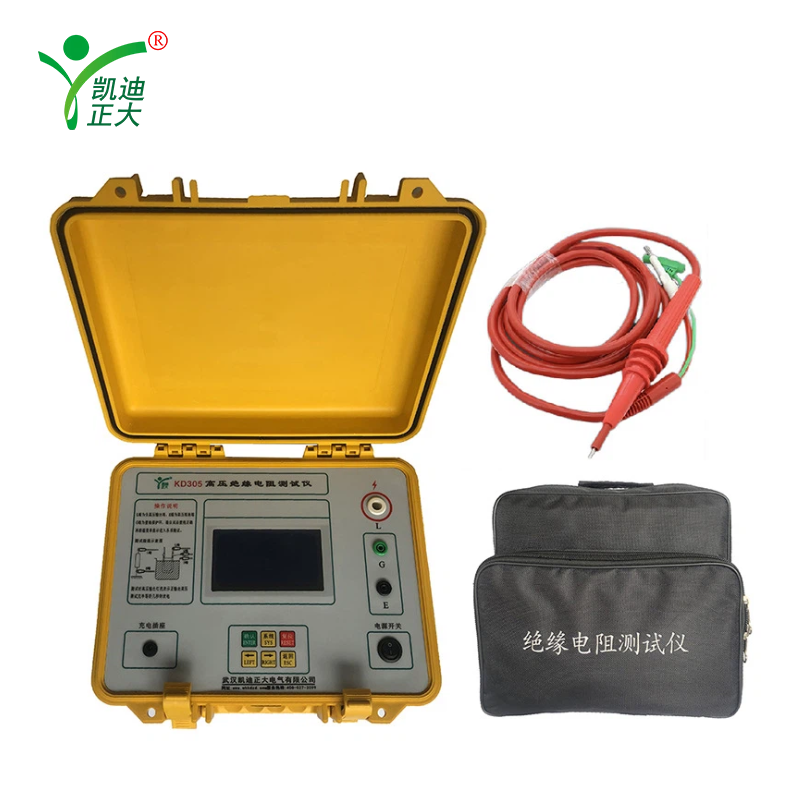

Packing List

Host: 1 unit
Test line: 3 pieces
Certificate of conformity: 1 copy
Inspection report: 1 copy
Instruction manual: 1 copy
Lithium battery charger: 1 unit
Hook (only available with high voltage test rod): 1 piece
Clip (only available with high voltage test rod): 1 piece
