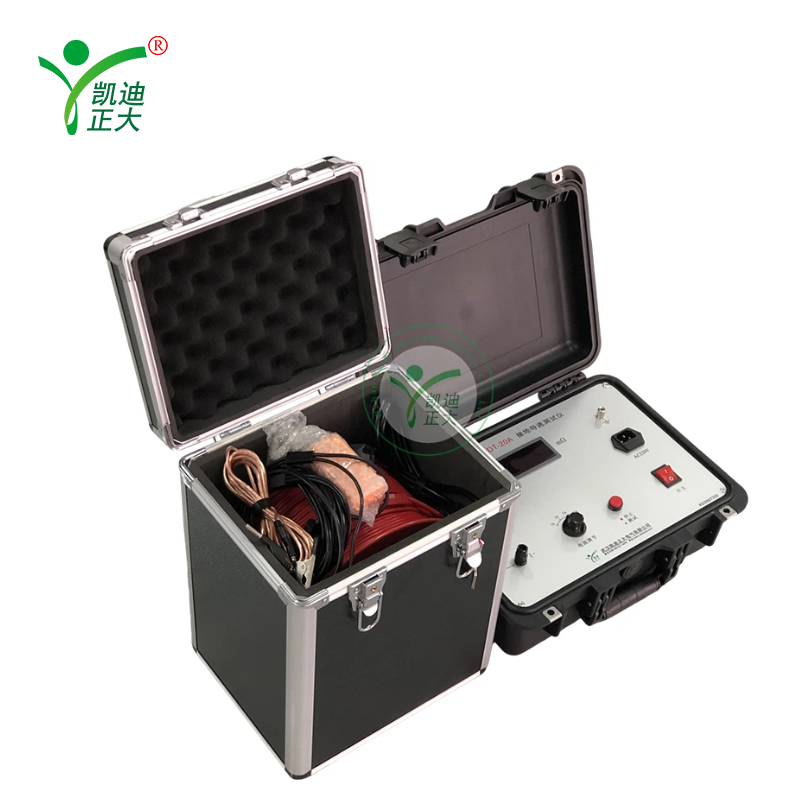

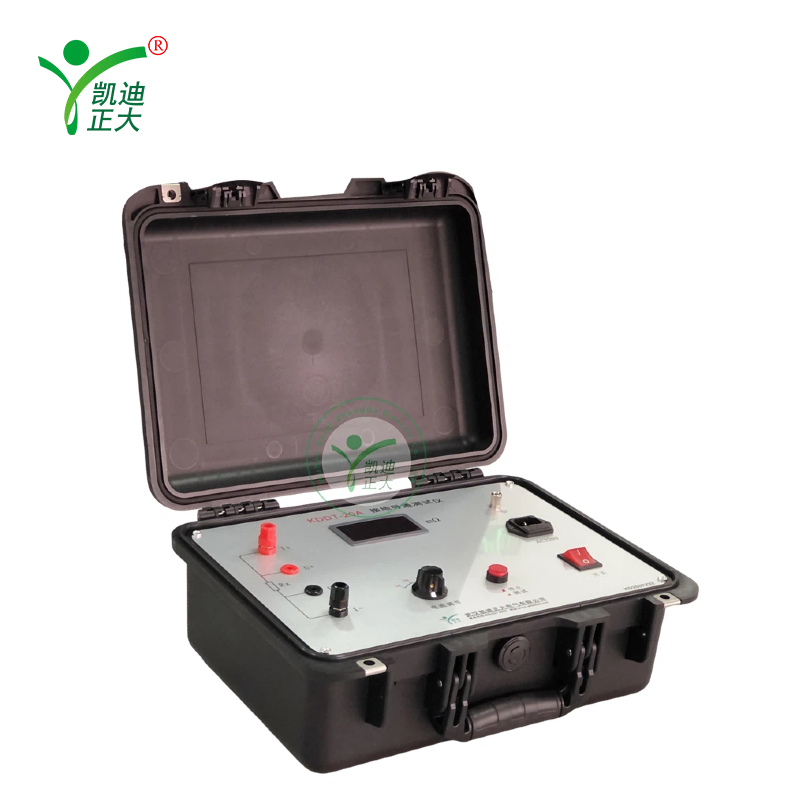

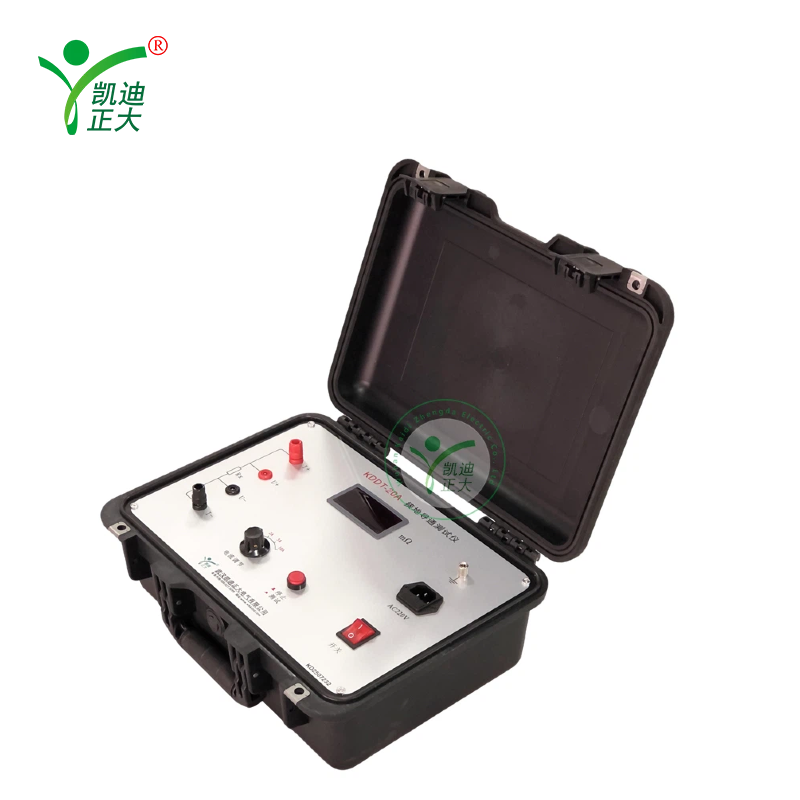

KDDT-10A Ground Continuity Tester
KDDT-10A Ground Continuity Tester

KDDT-10A Ground Continuity Tester

Applications:

Compliant with DL/T475-2006, it’s designed for testing electrical integrity of grounding devices—measuring continuity resistance between power equipment’s down conductors and ground grids (or adjacent equipment), also suitable for low-resistance measurement in power engineering.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

A highly automated portable tester meeting power industry standards. It outputs 10A stable DC current, features high accuracy, fast testing speed and strong anti-interference ability, ensuring reliable results for grounding system maintenance.

Features:

  1. Advanced power technology delivers 10A continuous current, breaking through contact oxide films for accurate results.
  2. Strong anti-interference performance: last digit of LCD display stabilizes within ±1 word even in severe interference.
  3. Long service life: high-precision resistors eliminate temperature impact; military-grade connectors enhance vibration resistance.
  4. Simple operation: one-key measurement with backlit LCD display for intuitive, repeatable readings.
  5. Portable design: compact size, lightweight and integrated panel-chassis structure for excellent shock resistance.

Parameter:

  1. Measurement range: 1~1999mΩ
  2. Resolution: 1mΩ
  3. Test current: 4 fixed DC gears (1A, 2A, 5A, 10A)
  4. Measurement accuracy: ±(0.5%+2d)
  5. Measurement radius: 50 meters
  6. Display: Backlit LCD
  7. Working mode: Continuous
  8. Power supply: AC 220V±10%, 50Hz
  9. Operating conditions: Temperature -10℃~40℃; Humidity ≤80%RH
  10. Dimensions (L×W×H): 300mm×270mm×200mm
  11. Weight: 5kg (excluding accessories)
