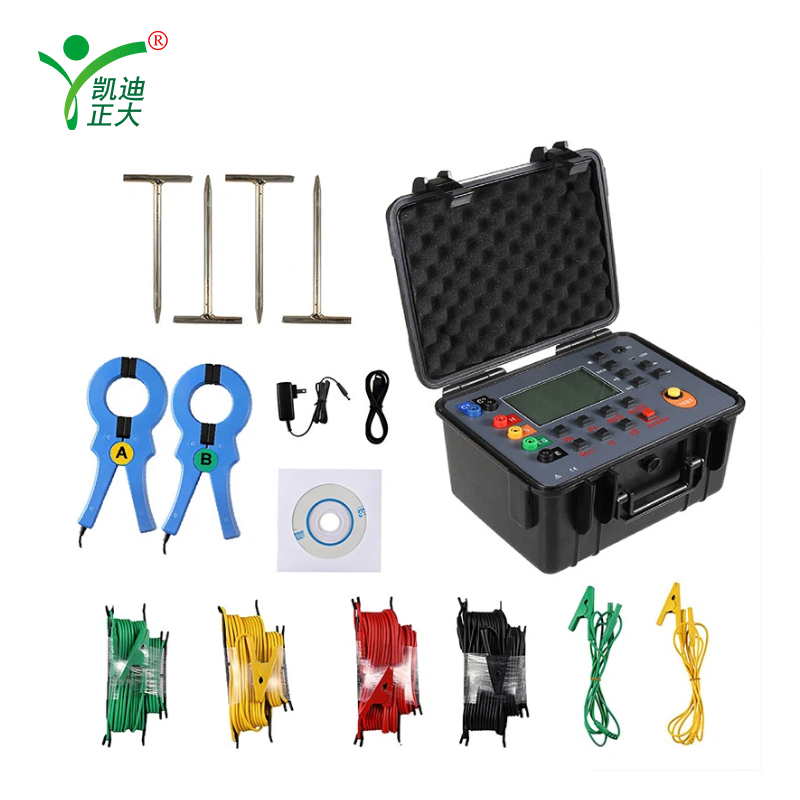

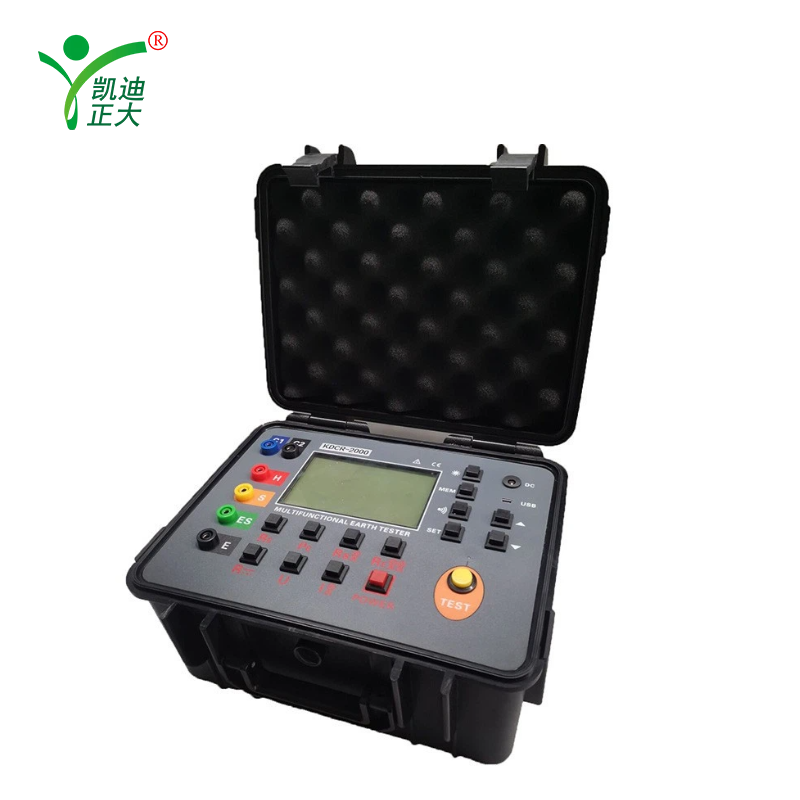

KDCR-2000 Double Clamp Ground Resistance Tester
KDCR-2000 Double Clamp Ground Resistance Tester

KDCR-2000 Double Clamp Ground Resistance Tester

Applications:

Widely used in power, telecommunications, meteorology, oilfields, construction and industrial electrical equipment. It measures ground resistance, loop resistance and leakage current without disconnecting ground leads, making it safe and efficient for on-site troubleshooting.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

A clamp-on, battery-powered clamp meter integrating ground resistance, loop resistance and leakage current testing. Features no need for auxiliary electrodes, instant startup, wide measurement range and high accuracy, ideal for inaccessible or live grounding systems.

Features:

  1. Equipped with USB-RS232 interface for data upload to PC and software monitoring with dynamic display.
  2. Instant startup with no long self-check delay, entering test mode immediately.
  3. Intelligent digital processing algorithm replaces traditional relay-based self-check for improved reliability.
  4. Compact and ergonomic handheld design, lighter and more portable than previous models.

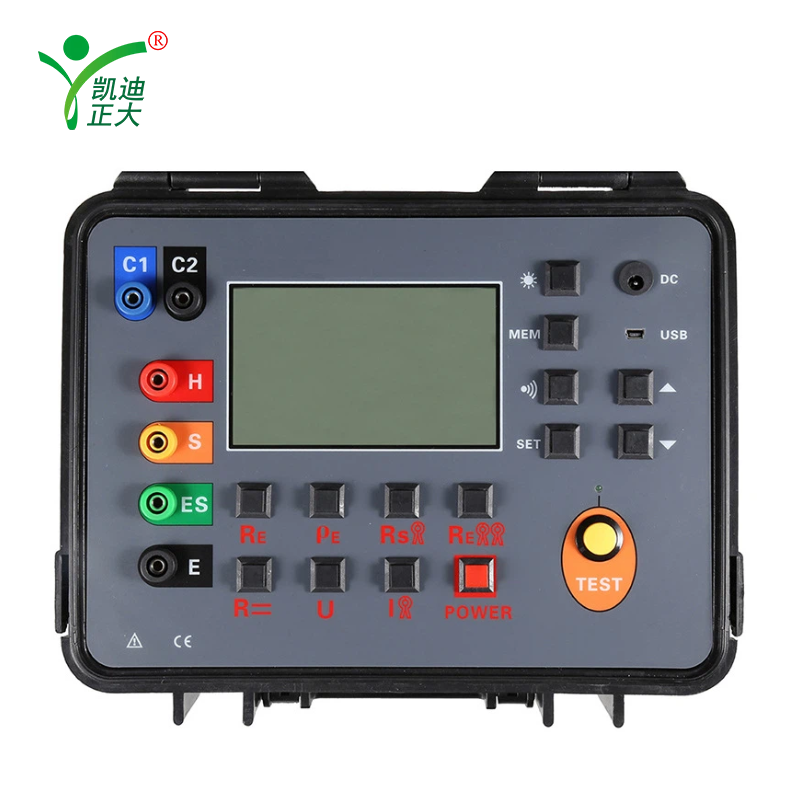

  5. 6-key front panel operation for straightforward performance control.
  6. Built-in audio-visual alarm with audible beep and visual indicator for threshold violations.
  7. Interference signal recognition with "NOISE" symbol flashing and alert tone.
  8. Expanded data storage capacity up to 99 groups for comprehensive data logging.
  9. Wider resistance range (0.01Ω-1200Ω) for versatile measurement scenarios.
  10. High-resolution leakage current detection (0.05mA) for precise monitoring.

Parameter:

  1. Power supply: 6VDC (4 No. 5 alkaline dry batteries)
  2. Resistance range: 0.01-1200Ω
  3. Current range: 0.00mA-20.0A
  4. Resistance resolution: 0.001Ω
  5. Current resolution: 0.05mA
  6. Resistance maximum accuracy: ±1%± 0.01Ω
  7. Maximum current accuracy: ±2.5%±1mA
  8. Data storage: 99 groups
  9. Alarm threshold setting range: Resistance: 1-199Ω; Current: 1-499mA
  10. Working temperature and humidity: -20℃-55℃; 20% RH- 90% RH
  11. Liquid crystal display: 4-digit LCD digital display, length and width 47mm×28.5mm
  12. Jaw size: long jaw 65mm×32mm; Round pliers mouth Φ32mm
  13. Jaw opening size: long jaw 28mm; Round jaws 32mm
  14. Quality of pliers: long mouth 1160g; Round jaw 1120g(including battery)
  15. Meter size: Long mouth: length width thickness 285mm×85mm×56mm; Round pliers mouth: length width thickness 260mm×90mm×66mm
  16. Explosion-proof mark: Exia ⅡBT3
  17. Protection level: Double insulation
  18. Structural features: Clamp CT
  19. Shift: Automatic shift
  20. External magnetic field: < 40A/m
  21. External electric field: < 1V/m
  22. Single measurement time: 0.5 seconds
  23. Resistance measurement frequency: > 1KHz
  24. Measured current frequency: 50/60Hz automatic
  25. Battery low voltage indicator function: When the battery voltage is lower than 5.3V, the battery low voltage symbol is displayed
  26. Data used up: The number of groups of data stored reaches 99. The MEM symbol is displayed blinking
  27. Overrange indication: Overrange indication "OLΩ", "L0.01" or "OLA"
