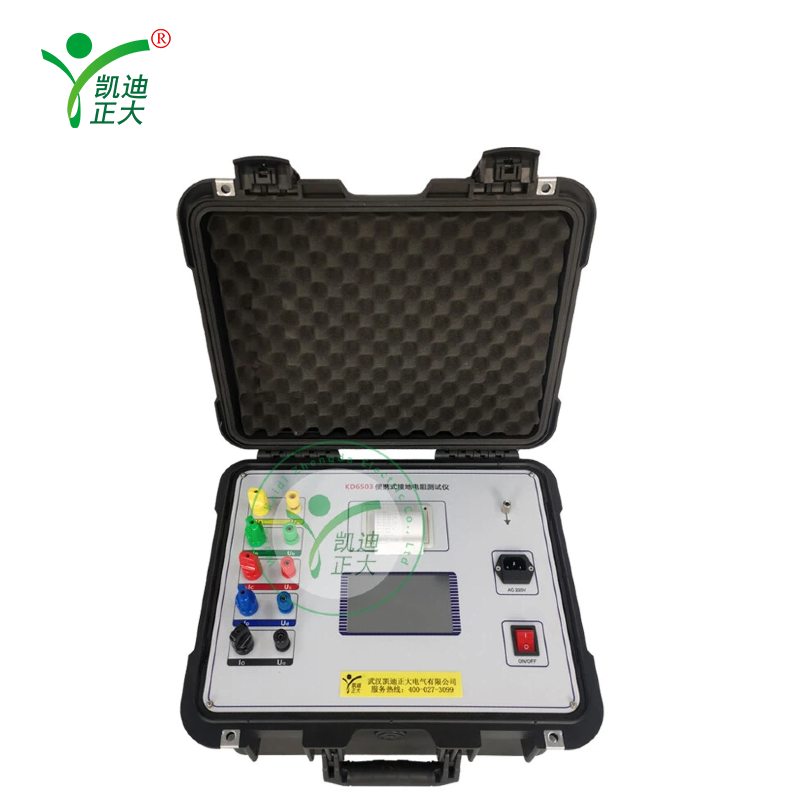

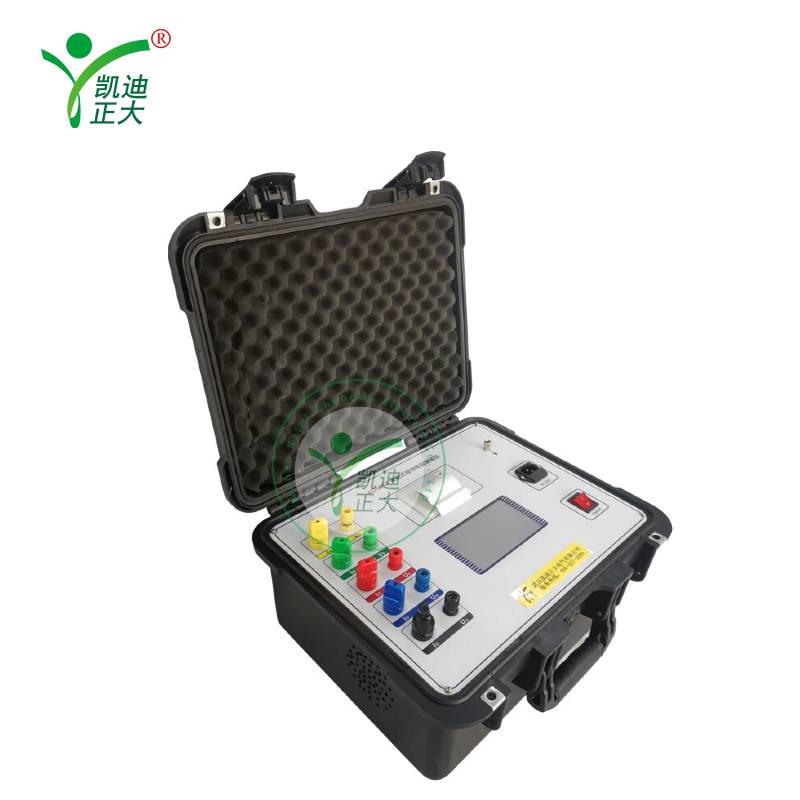

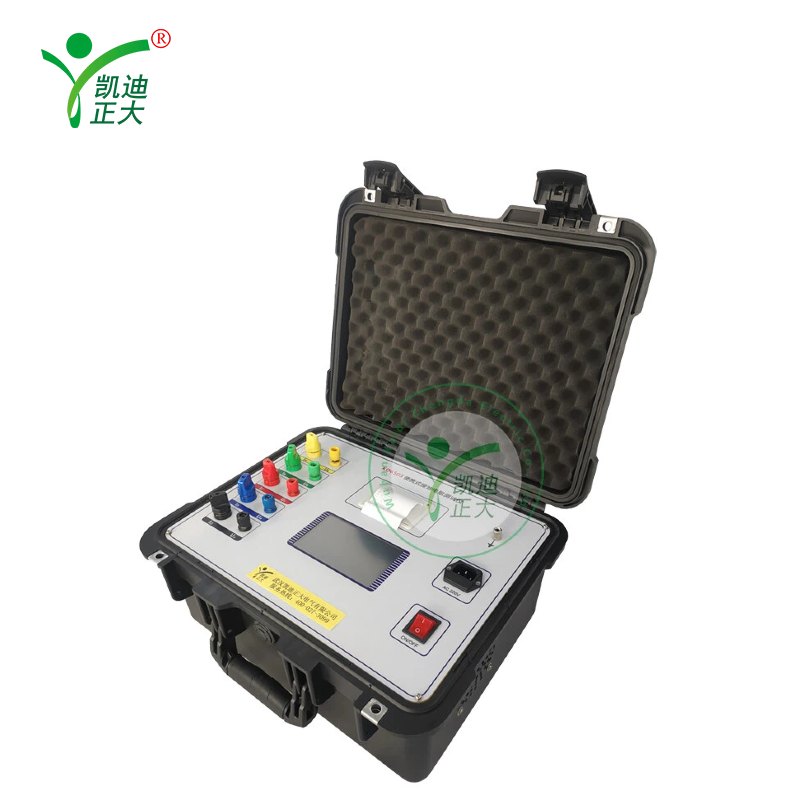

KD6503 Portable Ground Wire Group Tester
KD6503 Portable Ground Wire Group Tester

KD6503 Portable Ground Wire Group Tester

Applications:

KD6503 portable Ground wire group tester is applied in the power system for preventive DC resistance tests of portable short-circuit and personal protective grounding wires, verifying their contact performance and conductor cross-section to block unqualified products and ensure power system operation safety.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KD6503 portable Ground wire group tester is developed per national power safety standards, dedicated to power system grounding wire preventive tests. It features stable data, a Chinese LCD screen, built-in printer and portable plastic case with dust/water resistance.

Features:

  1. Complies with DLT1476-2015 and DLT976-2017, verifying grounding wire contact performance and conductor cross-section qualification.
  2. Suitable for DC resistance group tests of various portable short-circuit and personal protective grounding wires.
  3. Supports three-phase combined grounding wire connection without manual terminal replacement, only setting terminal numbers on the device.
  4. Adopts color touch LCD screen with all Chinese operation display for intuitive operation.
  5. Controlled by ARM chip for intelligent testing, fast speed, good repeatability and intuitive reading, auto-calculating and judging conductor qualification.
  6. Can store 100 groups of test data for easy query and traceability at any time.
  7. Equipped with a built-in thermal printer for real-time printing of test data on site.
  8. Adopts high-strength injection-molded case with small size, light weight, good shock resistance and easy portability.

Parameter:

  1. Input power supply: AC 220V±10%, 50Hz
  2. Output current: 30A, 40A, 50A
  3. Measuring range: 1mΩ—300mΩ
  4. Resolution: 0.1mΩ
  5. Accuracy: 0.5%±3 digits
  6. Dimension: 320×300×270 mm³
  7. Weight: 5 kg
