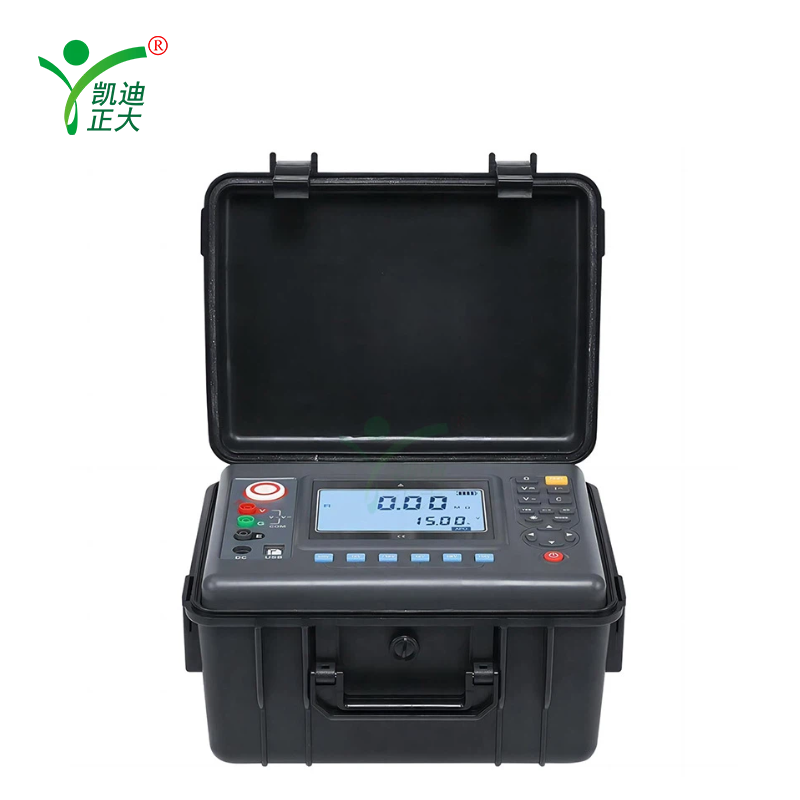

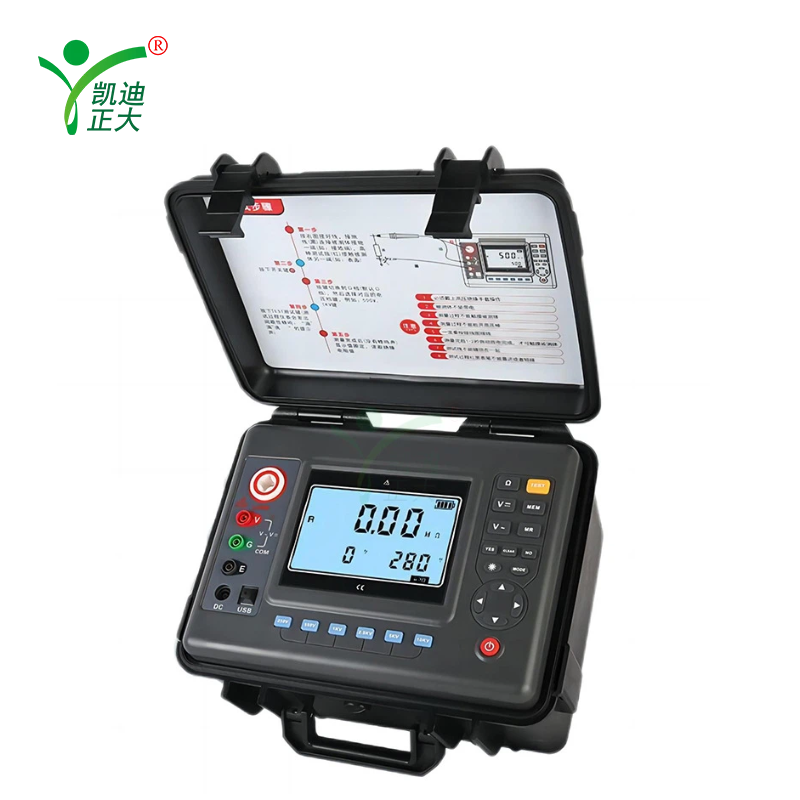

The KD50A series digital insulation resistance tester, also known as a megohmmeter or high-voltage insulation resistance meter, is used for testing insulation resistance. This instrument has functions such as large screen LCD gray white backlight display, data storage, data retrieval, alarm, automatic discharge, charging, and automatic shutdown. It also has the function of measuring the absorption ratio and polarization index of DC voltage and AC voltage. The whole machine is beautiful, with a wide range, high resolution, easy operation, convenient portability, accuracy, reliability, stable performance, high output power, and strong anti-interference ability.

The KD50A series digital insulation resistance tester has shockproof, dust-proof, and moisture-proof structures, making it suitable for harsh working environments.

The KD50A series digital insulation resistance tester consists of medium to large-scale integrated circuits. This table has a high output power and multiple output voltage levels (with 6 voltage levels). The rated insulation test voltage range is 100V~15kV (the output voltage is determined according to the model), and it also has a step adjustment voltage function to output multiple different voltage levels (such as the 15kV model can generate voltage levels such as 12KV, which has a wider range of use). The insulation resistance measurement range is 0.01M Ω~50T Ω (the measurement range is determined according to the model); DC voltage measurement range 0-1000V; AC voltage measurement range: 0-750V; DC current measurement range: 0.01nA-6mA; The capacitance measurement range is 10nF to 50uF.

Model specifications
Model: KD50A

Function: Insulation resistance test, voltage test, current test, capacitance test
Reference conditions: 23 ℃± 5 ℃, below 75% RH


Rated applied voltage (V):
100V； 250V； 500V； 1000V； 2500V； 5000V precision rated voltage × (1 ± 10%)
250V； 500V； 1000V； 2500V； 5000V； 10KV precision rated voltage × (1 ± 10%)
500V； 1000V； 2500V； 5000V； 10KV； 15KV precision rated voltage × (1 ± 10%)


Insulation resistance range (G Ω):
0.01M Ω~10T Ω Accuracy: ± 3% rdg ± 5dgt Resolution 0.01M Ω
: 0.01M Ω~35T Ω Accuracy: ± 3% rdg ± 5dgt Resolution 0.01M Ω
: 0.01M Ω~50T Ω Accuracy: ± 3% rdg ± 5dgt Resolution 0.01M Ω


DC voltage range: 0.1-1000V accuracy: ± 1.5% rdg ± 3dgt resolution: 0.1V
AC voltage range: 0.1-750V accuracy: ± 1.5% rdg ± 3dgt resolution: 0.1V
DC current measurement: 0.01nA-6mA accuracy: ± 5.0% rdg ± 5dgt resolution 0.01nA
Capacitance measurement: 10nF~50uF accuracy: ± 10% rdg ± 5dg (resolution 10nF)
Output short-circuit current: ≥ 6mA
Absorption ratio and polarization index measurement: Yes
Power supply: 12V rechargeable battery
Backlight: Controllable gray and white screen backlight, suitable for use in low light fields
Display mode: 4-digit ultra large LCD display, gray and white screen backlight
LCD display size: 108mm × 65mm
Instrument size: 240mm (length) x 188mm (width) x 85mm (height)
USB interface: With USB interface, software monitoring, data storage can be uploaded to the computer, saved and printed
Communication cable: 1 USB communication cable
Test line: High voltage rod red 3 meters, high voltage test line black 1.5 meters, green line 1.5 meters
Data storage: 500 sets, flashing the "FULL" symbol indicates that the storage is full
Data lookup: Data lookup function: "READ" symbol display
Overflow display: Over range overflow function: "OL" symbol display
Alarm function: When the measured value exceeds the alarm set value, an alarm prompt will be issued


power waste:
Standby: 30mA Max (backlight off)
Power on backlight: 42mA Max
Measurement: 200mA Max (backlight off)


Instrument quality: 2340g (including battery)
Battery voltage: Insufficient battery voltage, displaying low battery symbol ""
Automatic shutdown: The instrument panel will shut down after about 15 minutes of inactivity
Insulation resistance: ≥ 50M Ω (measured between the circuit and the casing)
Voltage withstand: AC3kV/50Hz 1min
Working temperature and humidity: -10 ℃~+50 ℃ ＜ 85% RH
Storage temperature and humidity: -15 ℃~+55 ℃ ＜ 90% RH
Suitable for safety regulations: IEC61010-1, IEC61010-2-31, IEC61557-1.5, IEC60529 (IP54), pollution, etc. 2, CAT III 300V

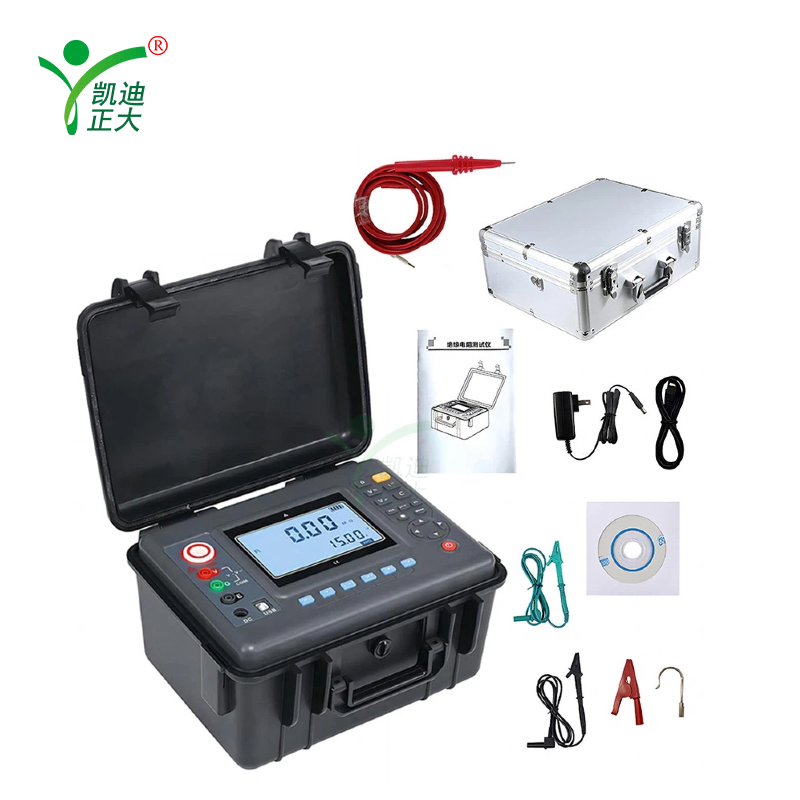

Packing list
Instrument: 1 unit
High voltage rod: 1 red rod
High voltage test lines: 2 (1 black and 1 green)
Monitoring software CD: 1 copy
USB communication cable: 1
Charger: 1 unit
Instruction manual and warranty certificate: 1 set
Instrument box: 1 unit
