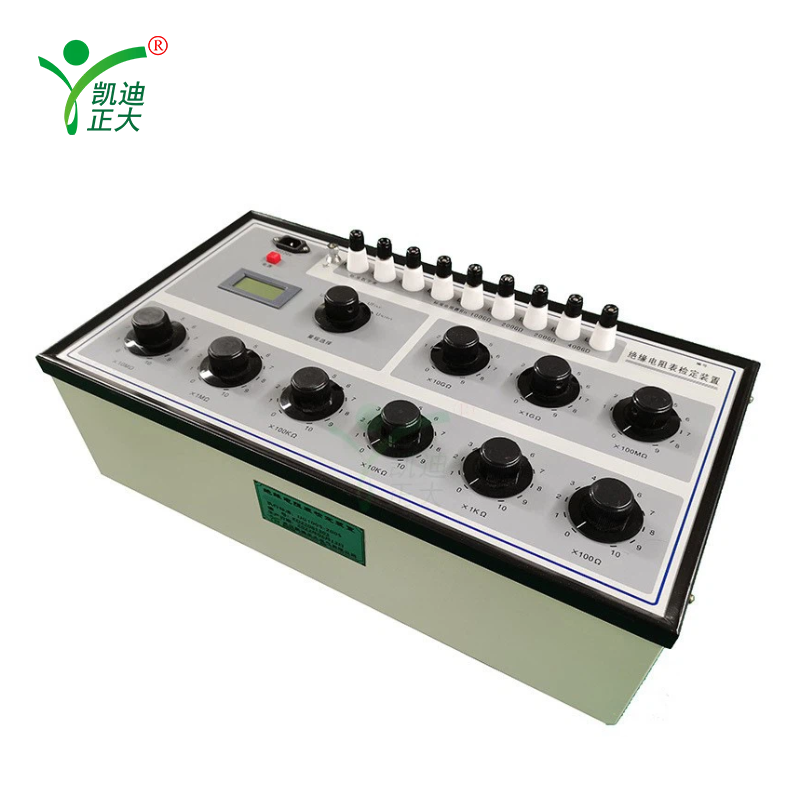

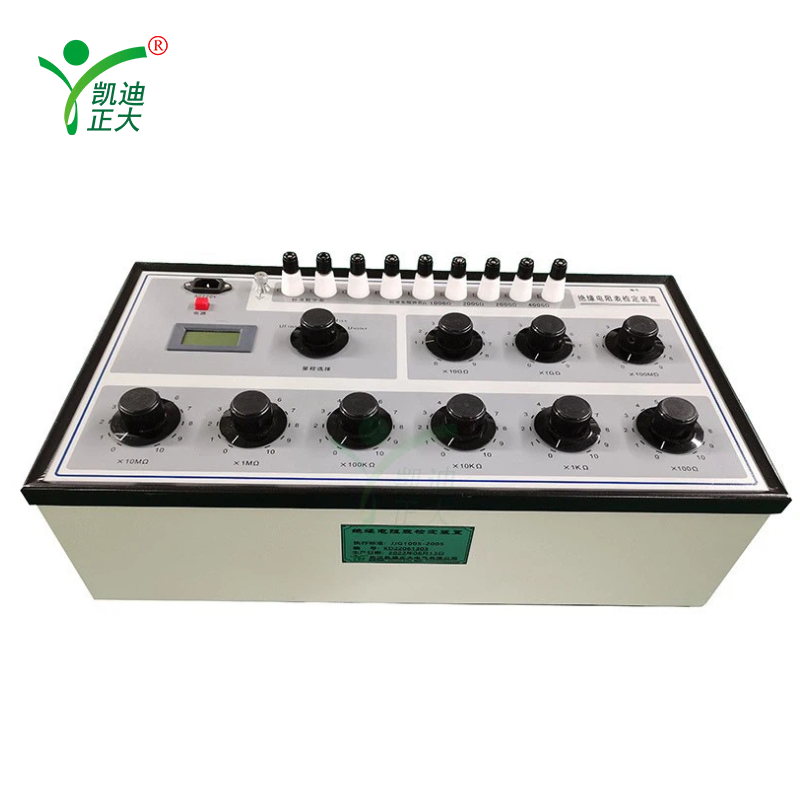

A dedicated calibration device verifying indication error, voltage drop (Ud) of electronic megohmmeters. With KDCY3 governor, it tests pointer-type models’ indication error, open-circuit/median/peak voltage. Compact, stable and easy to use, with standalone resistor and 10kV DC voltage measurement.

1. Supports calibration of megohmmeters with rated voltage ≤10kV, applicable to production, repair and verification scenarios.
2. Standard resistor and digital meter can be used independently, with 100Ω minimum resistance step and 10kV maximum withstand voltage.
3. Compact structure, stable performance and user-friendly operation, suitable for industrial and enterprise calibration needs.
4. Digital meter measures up to 10000V DC voltage with high accuracy and fast 25-second response time.

1.Standard Number Table

Measurement range: Voltage range: 0-10000V

Basic error:

DC voltage U	≤1000V：  ±(0.4% reading+0.1% full degree) >1000V：  ±(0.5% reading+0.5% full degree)
Peak Voltage (Uf)	≤1000V：  ±(1% reading+0.5% full degree) >1000V：  ±(0.5% reading+0.5% full degree)

The response time of the digital meter is about 25 seconds.

2.Standard resistor

A standard resistor consists of a string of 900G fixed resistors and nine resistor disks, namely: 100G Ω+2 × 200G Ω+400G Ω+9 × (104+103+102) M Ω+10 (10+1+0.1+0.01+0.001+0.0001) M Ω, with a resistance range of 0-1000011.1110 M Ω, a minimum step of 100 Ω, and a maximum withstand voltage of 10kV.


Decimal disc resistance	Fixed resistors	×10000 MΩ	×1000 MΩ	×100 MΩ	×10 MΩ	×1 MΩ	×0.1 MΩ	×10 kΩ	×1 kΩ	×0.1 kΩ
grade index	5		2	1	0.5	0.2
The maximum voltage and current can be used	10kV				5000V	2500V	500V	8 mA	20 mA	50 mA

The level index and maximum operating voltage or current of each ten inch disk

The residual resistance value is less than 1 Ω, and the variation is not greater than 0.1 Ω.

Environmental reference conditions: 20+2-3 ℃, relative humidity: 50% ± 10%

Nominal operating environment: temperature 23 ± 5 ℃, relative humidity 25% to 60%.

The insulation resistance of the circuit to the shell is ≥ 1 × 1011 Ω.

Power supply voltage: AC220V 50HZ.

Dimensions: 600mm × 323mm × 220mm.

Weight: Approximately 10kg.
