Profile:
The instrument adopts all-digital technology inside, with all intelligent and automated measurements. It features multiple measurement modes and is equipped with a 7-inch large touch screen color display. It has a full Chinese menu, and each step is accompanied by Chinese prompts. Test results can be printed out, and operators can use it proficiently without professional training.
Features:

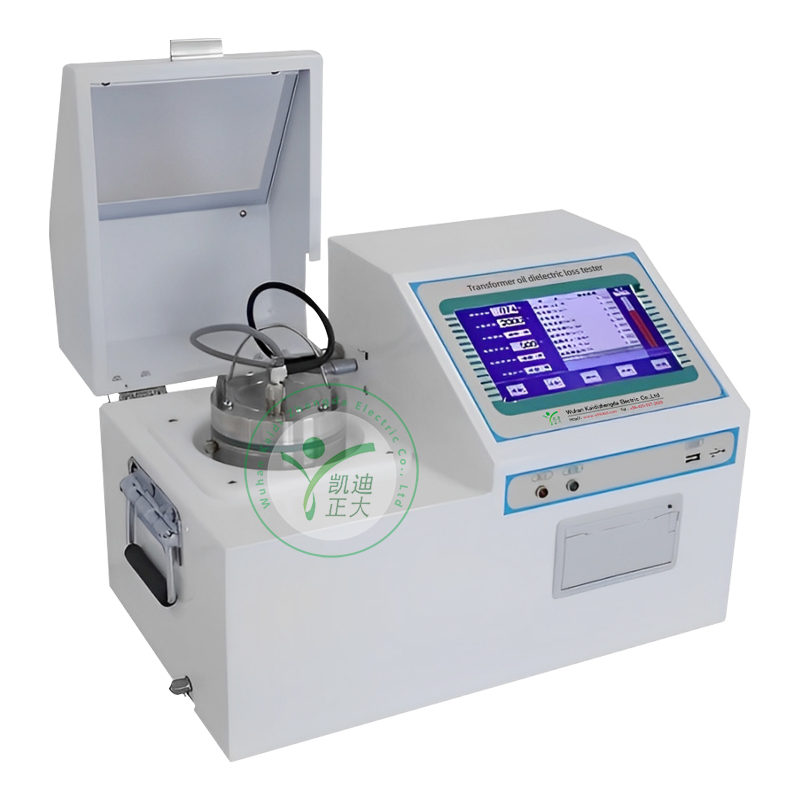

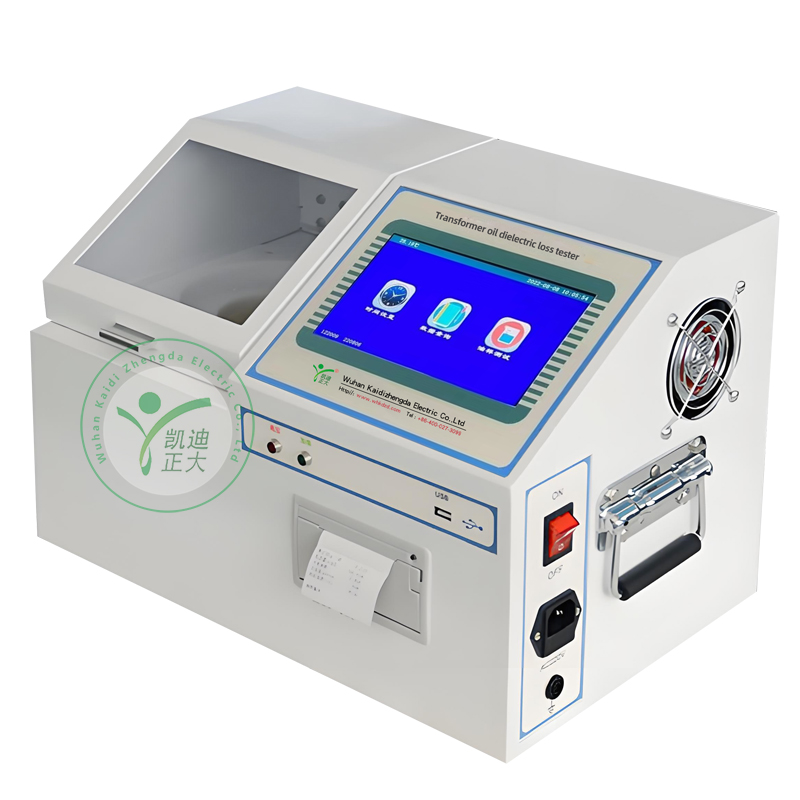

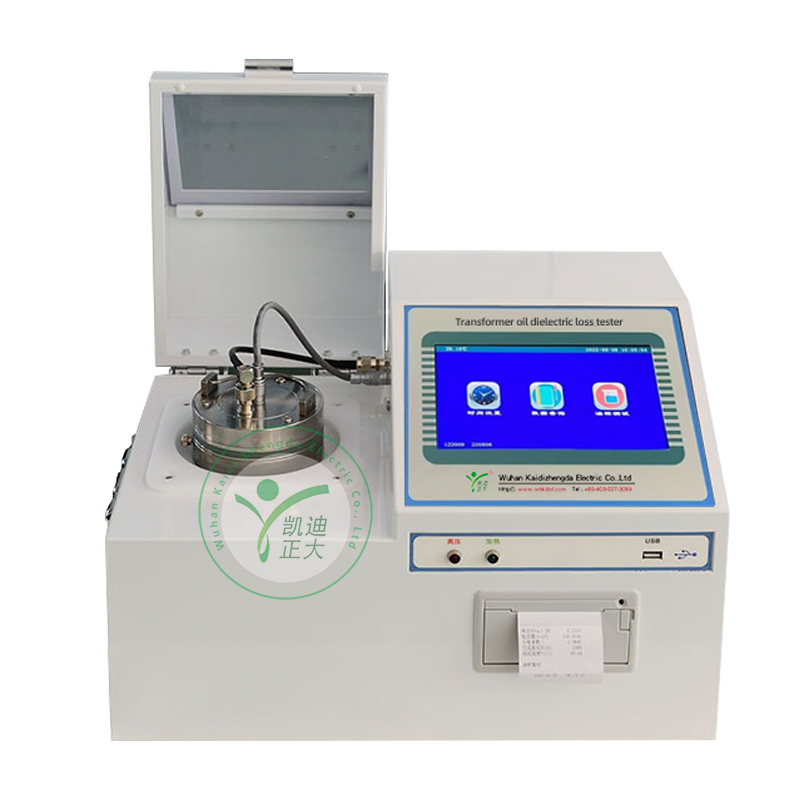

The KD610 Insulating Oil Dielectric Loss tester is an integrated high-precision instrument used for testing the dielectric loss Angle and volume resistivity of liquid insulating media such as insulating oil. It integrates main components such as dielectric loss oil cups, temperature controllers, temperature sensors, dielectric loss test Bridges, AC test power supplies, standard capacitors, high-resistance meters, and DC high-voltage sources internally. Among them, the heating part adopts high-frequency induction heating method. This heating method has the advantages of non-contact between the oil cup and the heating body, uniform heating, fast speed and convenient control. The AC test power supply adopts the AC-DC-AC conversion mode, effectively avoiding the influence of fluctuations in mains voltage and frequency on the accuracy of dielectric loss testing. Even if the generator is generating electricity, this instrument can still operate correctly. The internal standard capacitor is an SF6 gas-filled three-pole capacitor. The dielectric loss and capacitance of this capacitor are not affected by environmental temperature, humidity, etc., ensuring consistent accuracy of the instrument even after long-term use.
Parameter:
Main technical parameters
Operating conditions: -5℃ to 40℃ RH < 80%
Power supply: AC 220V±10%, frequency unlimited
Ac high-voltage output: 500V to 2200V ±2%, 50VA every 100V
Dc high-voltage output: 200V to 600V ±2%
Temperature-controlled induction cooker: Maximum power 500W
Temperature control range: <100°C
Temperature measurement error: ±0.5°C
Control temperature error: 0.1°C
Temperature control time: Room temperature to 100°C <20 minutes
Measurement range
tgδ : Unlimited
Cx: 15PF-300PF
Rx: 10M-20TΩ
ρ : 10MΩm-100TΩm
Resolution
tgδ : 0.001%
Cx: 0.001pF
Rx: 0.01
ρ : 0.001
Accuracy
△tgδ : ± (reading *0.5%+0.020%)
△ Cx: ± (reading *0.5%+0.5PF)
△ Rx: ± reading * 10%
△ρ : ± reading * 10%
Relative dielectric constant ε : Automatically calculated
Oil direct current conductance G x: Automatically calculated
Volume resistivity ρ : Automatically calculated
Volume conductivity σ : Automatically calculated
Dimensions: 410 (length) ×265 (width) ×285 (height)
Weight: 12.5 kg
