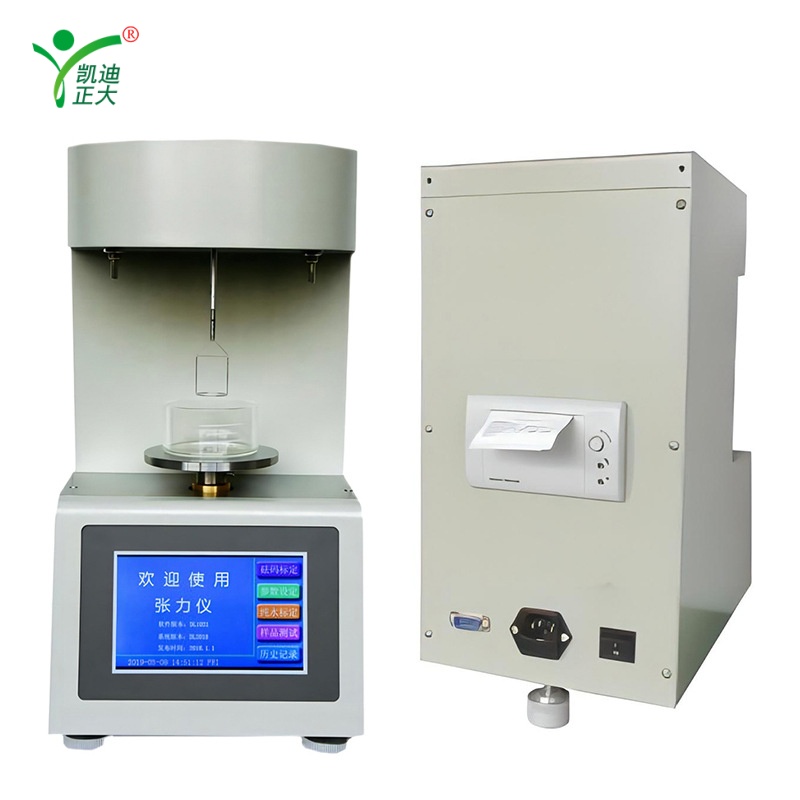

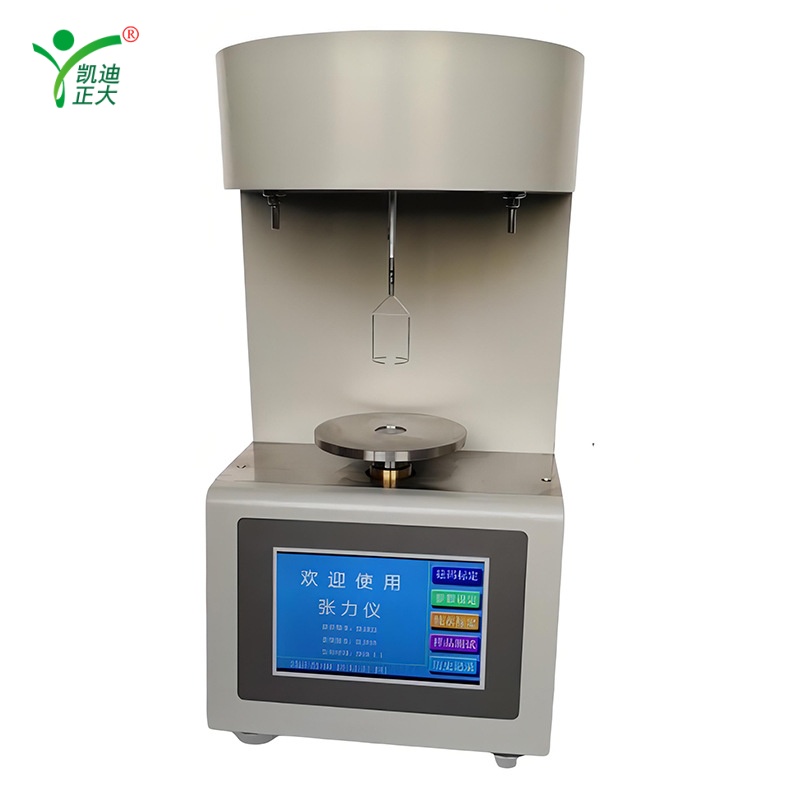

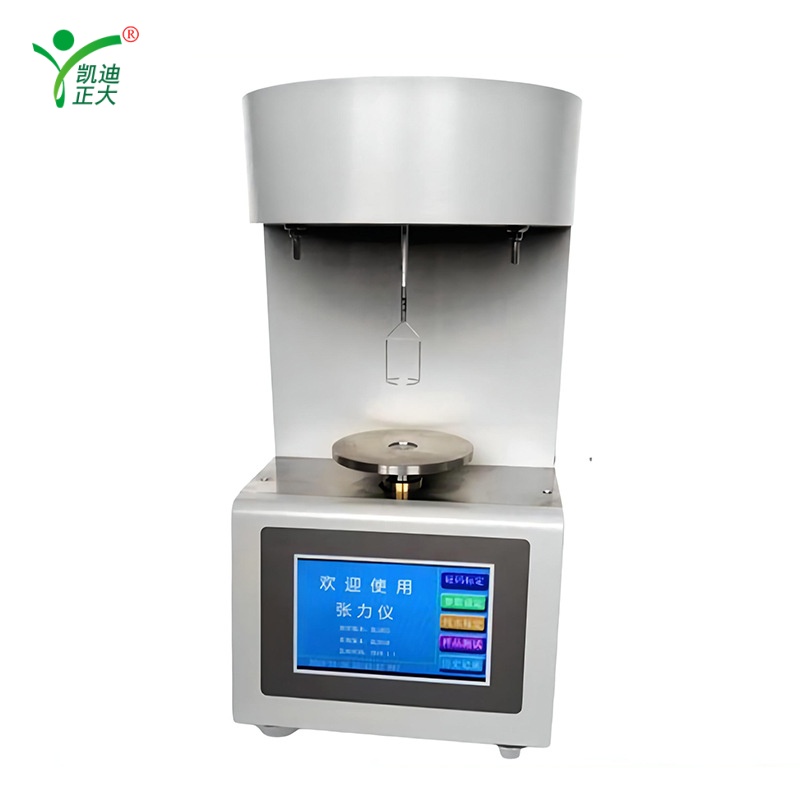

The KDZL-203 is a high-precision automatic surface and interfacial tension meter designed for accurate liquid testing. It employs a fast-response electromagnetic force balance sensor to enhance measurement accuracy and linearity, with a single-point calibration that eliminates the need for multi-point calibration and manual zero adjustment. The instrument features real-time display of equivalent tension and current weight, plus integrated temperature detection for automatic temperature compensation. A 240×128 dot-matrix LCD with unmarked keys and screen protection ensures intuitive operation, while time-stamped historical records (up to 255 data points) and a built-in high-speed thermal printer support efficient data management and output.

• Fast-response electromagnetic force balance sensor for high accuracy and linearity
• Single-point calibration, eliminating multi-point calibration and zero adjustment
• Real-time display of equivalent tension and current weight
• Automatic temperature compensation via integrated temperature detection circuit
• 240×128 dot-matrix LCD with screen protection and unmarked keys
• 255 time-stamped historical data records
• Built-in high-speed thermal printer with detachable printing function

• Model: KDZL-203
• Measurement range: 0–200 mN/m
• Accuracy: 0.1% reading ±0.1 mN/m
• Sensitivity: 0.1 mN/m
• Resolution: 0.1 mN/m
• Power supply: AC 220 V ±10%, 50 Hz ±2%
• Power consumption: ≤20 W
• Operating temperature: 10–40°C
• Operating humidity: <85% RH
• Dimensions: 200 mm × 330 mm × 300 mm
• Net weight: ~5 kg
