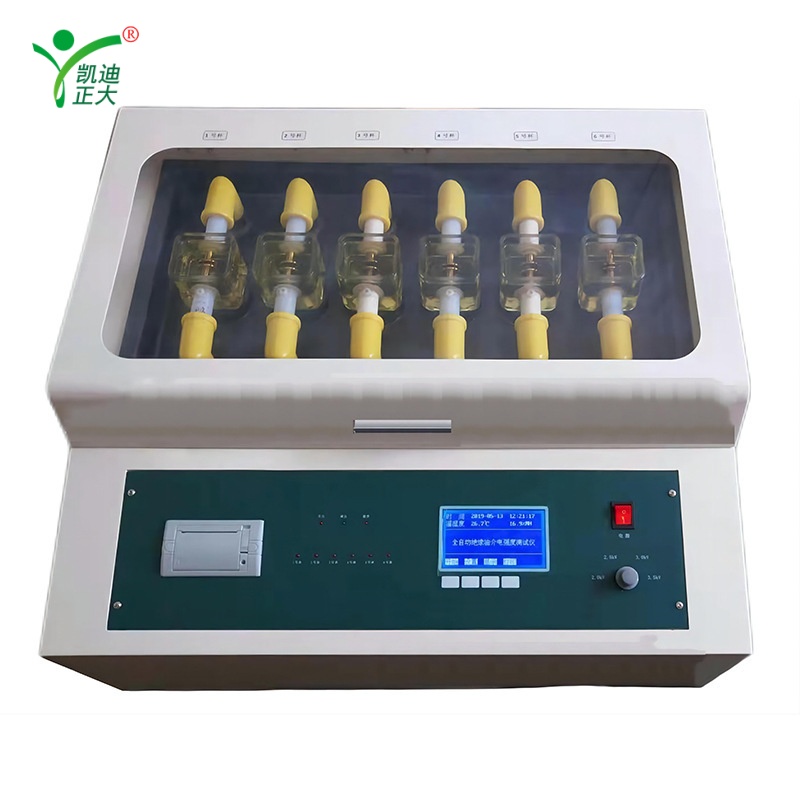

The KDJJC-6A is a 6-cup automatic insulating oil dielectric strength tester designed for high-efficiency power system testing. It uses a high-capacity single-chip microcomputer with a watchdog circuit to ensure stable operation and prevent crashes. The 6-cup design allows parallel testing, significantly improving work efficiency. Each oil cup is made of special glass to avoid leakage and interference, while high-voltage end sampling design directly feeds test values to the A/D converter, eliminating analog circuit errors for more accurate results. It offers 4 selectable boost rates (2.0–3.5 kV/s) and a maximum output voltage of 80 kV, with overcurrent, overvoltage, and short-circuit protection, strong anti-interference capability, and a portable structure for easy indoor/outdoor use.

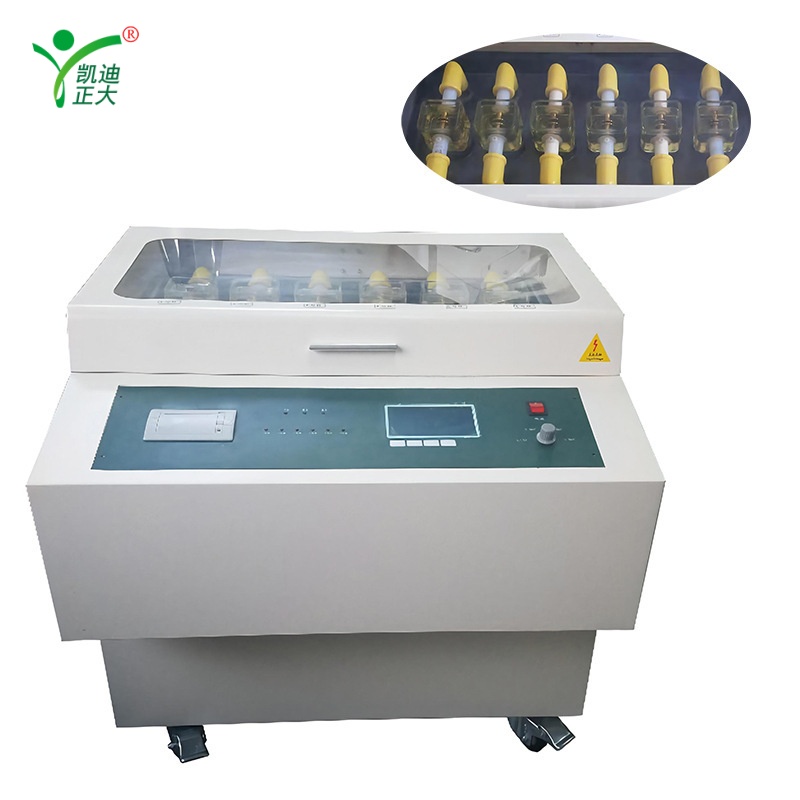

• 6-cup parallel testing design for high efficiency
• Single-chip microcomputer control with watchdog circuit for stable operation
• Compliant with GB1986 and GB2002 standards, plus custom test modes

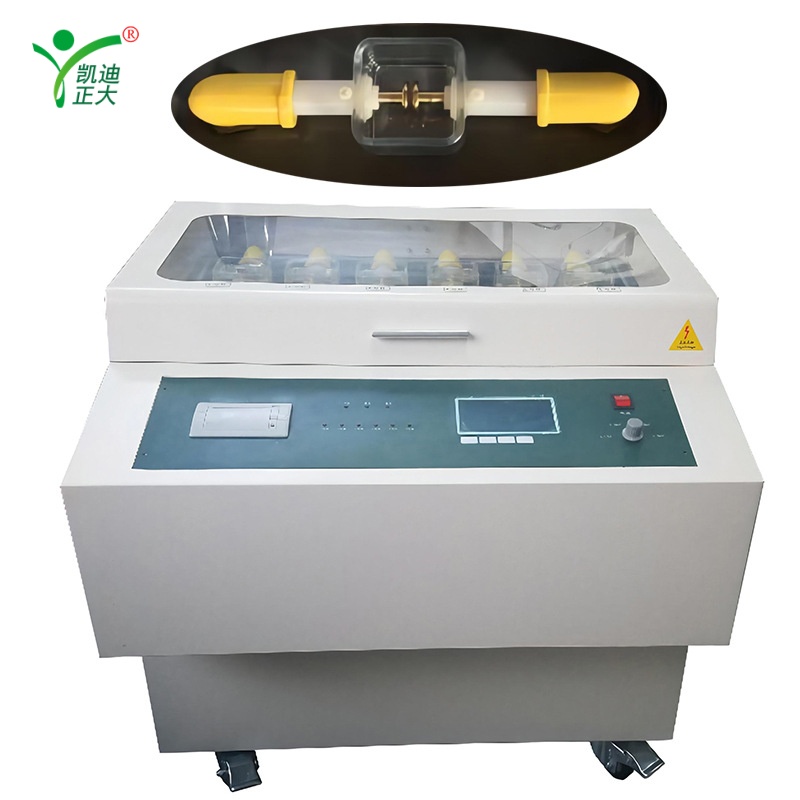

• Special glass oil cups to prevent leakage and interference
• High-voltage end sampling design for accurate measurement
• Overcurrent, overvoltage, and short-circuit protection with excellent EMC performance
• Portable structure for easy indoor and outdoor use
• Large-screen LCD with Chinese display for intuitive operation

• Model: KDJJC-6A
• Output voltage: 0–80 kV
• Voltage boost rate: 2.0, 2.5, 3.0, 3.5 kV/s (4 selectable speeds)
• Power distortion rate: <1%
• Electrode gap: Standard 2.5 mm
• Display: Large-screen LCD (Chinese characters)
• Dimensions: 760 mm × 670 mm × 770 mm
• Weight: 48 kg
• Operating temperature: 0–40°C
• Relative humidity: ≤85%
• Power supply: AC 220V ±10%, 50 ±5 Hz
• Power consumption: <200 W
