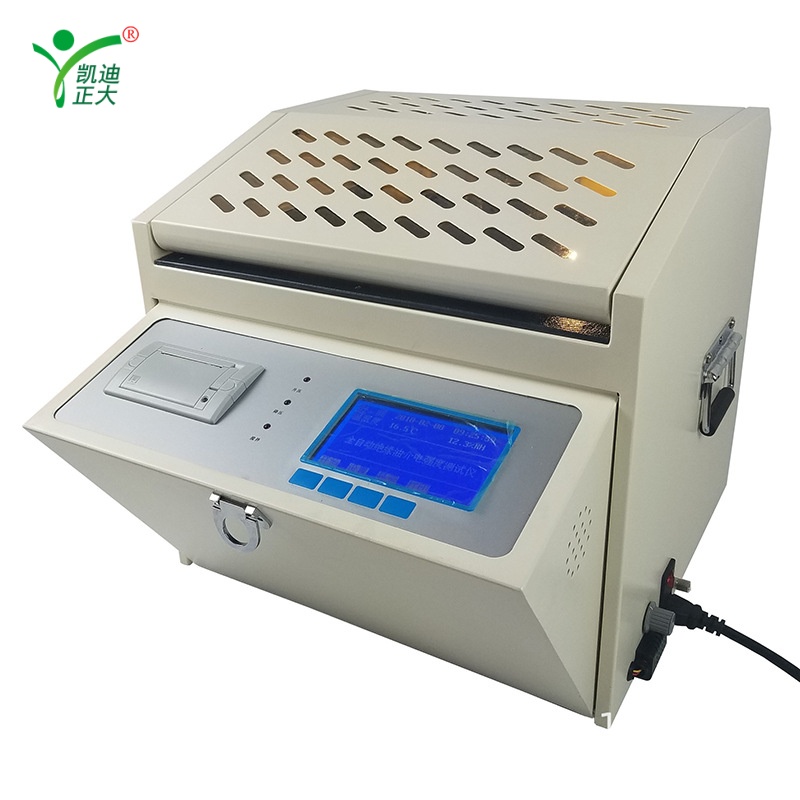

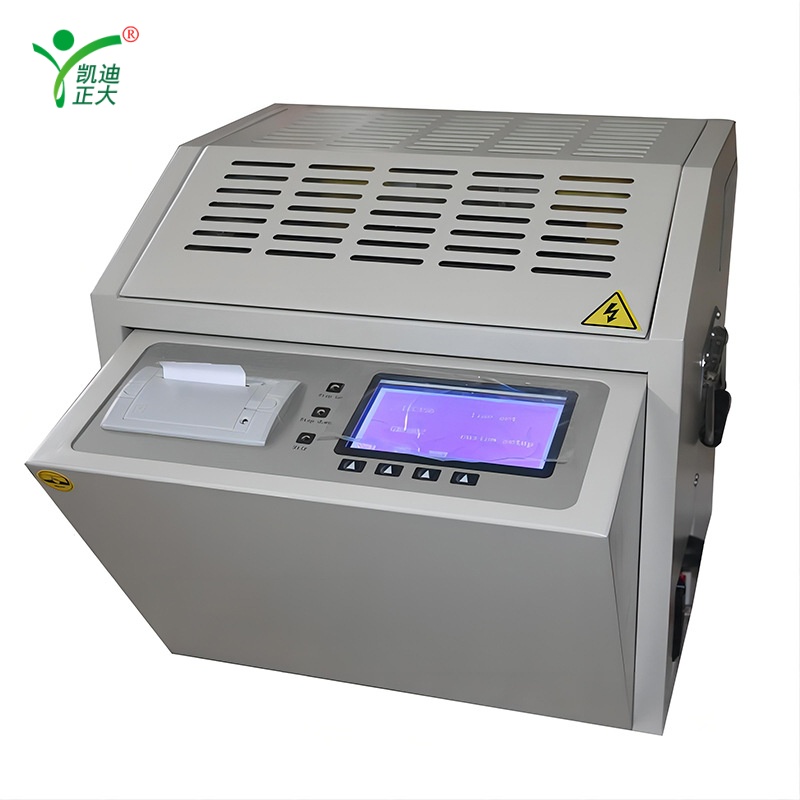

The instrument is dominated by single chip microcomputer, the method of first setting and then boot test, the process is controlled by microcomputer automatically, the operation is simple, convenient and applicable.

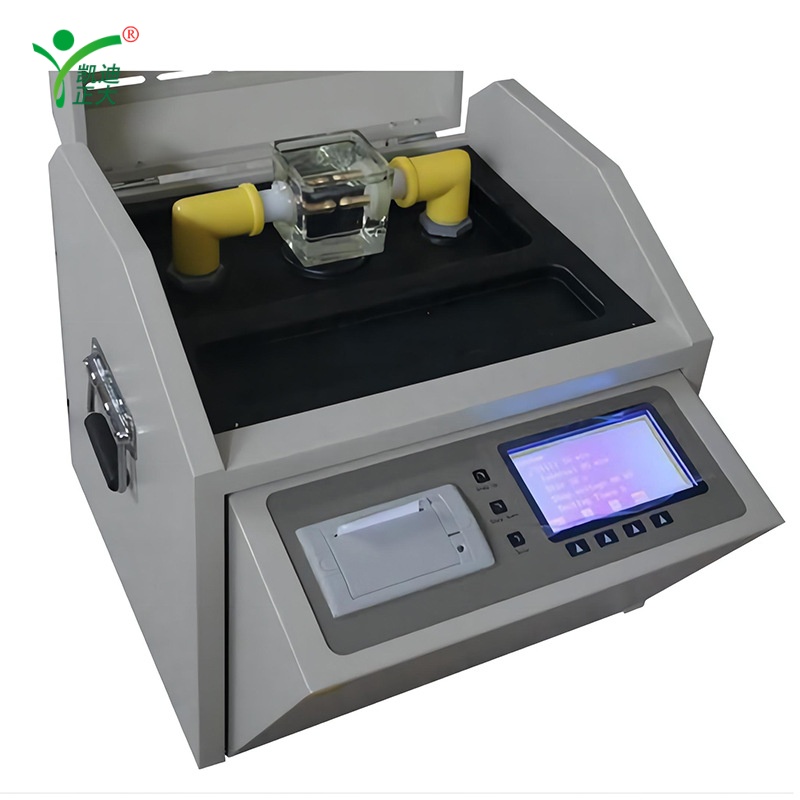

1. Single oil cup structure. Using single-chip control, it can automatically complete a series of operations such as voltage increase, maintenance, voltage reduction, stirring, static discharge, display calculation, printing, etc., and can be tested in the range of 0-80kV.
2. Using large-screen dot-matrix LCD display with internal backlight system, it can be clearly seen even at night. The test process is prompted by Chinese menu, which can facilitate the operation of the test personnel.
3. The operation of the instrument is simple, the operator only needs to enter simple instructions according to the instructions, and the instrument will automatically complete the pressure resistance test of the insulation oil according to the setting. Each breakdown voltage value is automatically stored, and after the test is completed, the printer is turned on to print out each breakdown voltage value and average value
4. This instrument is equipped with automatic and manual test two ways. The test parameters can be set before the test, which greatly improves the practicability of the test instrument.
5. The instrument has strong adaptability, easy to carry, and can be used for laboratory and outdoor field testing. The instrument also has a strong anti-interference ability and can work normally in a strong electromagnetic field environment.
6. The instrument has overvoltage, overcurrent, automatic zero protection device, under normal use, to ensure the safety of the instrument itself and the operator.
7. The boost speed can be selected according to different experimental standards

1. Booster capacity 1.5kVA
2. Boost speed 2.0kV /s, 3.0kV /s, second gear optional
Error 0.2kV/s
3. Output voltage 0 ~ 80 kV
4. Power distortion rate < 1%
5. Display mode Large-screen LCD Chinese character display
6. Electrode gap standard 2.5mm
7. The overall dimension is 410 mm; Width 390 mm; Height 380 mm
8. Instrument weight 26 kg
