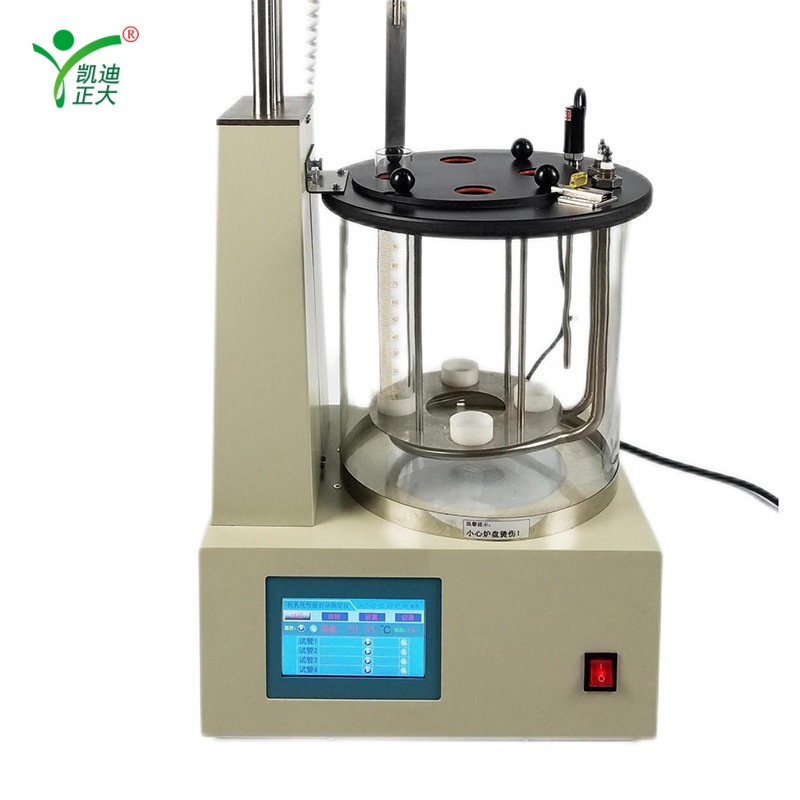

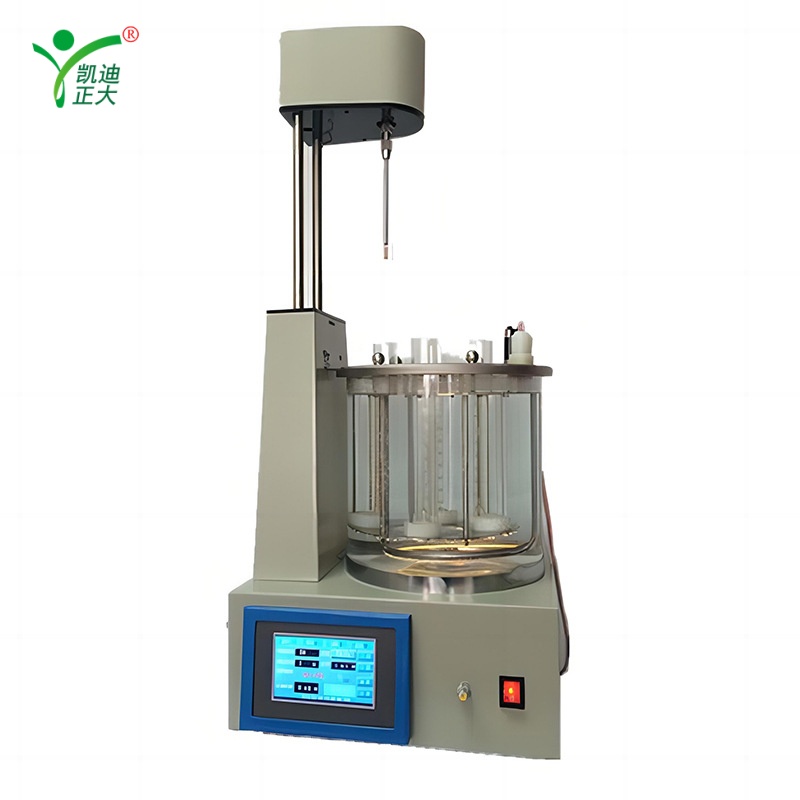

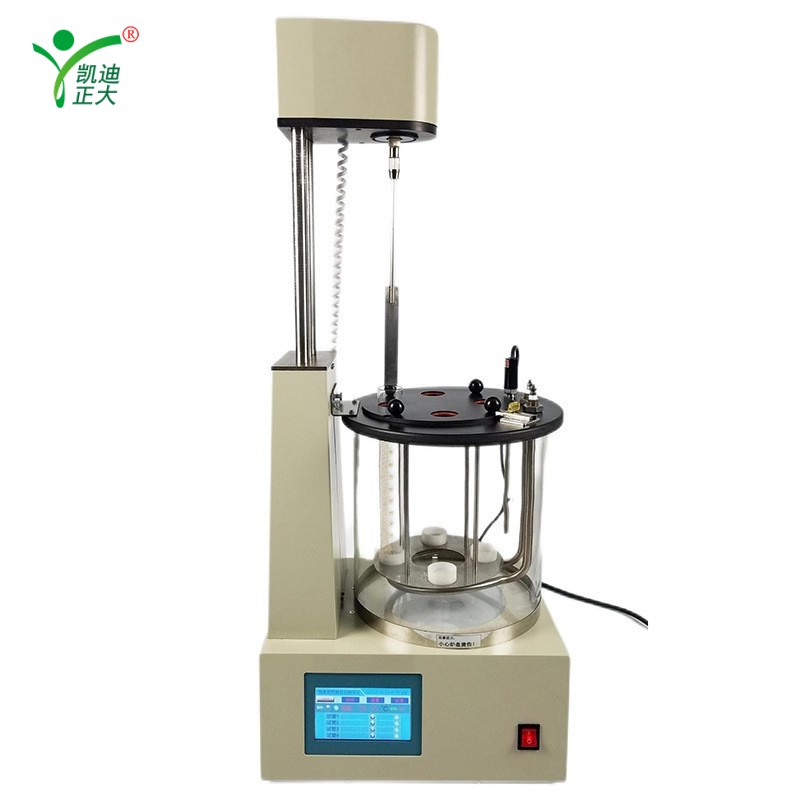

KDRH-303A Automatic Demulsibility Performance Tester for Petroleum Products
KDRH-303A Automatic Demulsibility Performance Tester for Petroleum Products

KDRH-303A Automatic Demulsibility Performance Tester for Petroleum Products

Applications:

Used to test the demulsibility performance of petroleum products and synthetic fluids per GB/T 7305-87 and GB/T 7605-87, suitable for petroleum, power, and chemical industries to evaluate fluid water-separating ability.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDRH-303A Automatic Demulsibility Tester is a precision instrument designed to measure the water-separating performance of petroleum products. It adopts a 32-bit microprocessor, high-definition color touchscreen, and PID self-tuning control technology, ensuring high temperature control accuracy (±0.1°C) and excellent repeatability. The automatic lifting stirrer can test 4 samples simultaneously, with intelligent data storage for easy query. It is an ideal alternative to imported instruments for industrial testing.

Features:

  • PID self-tuning temperature control: High precision ±0.1°C, stable at 54°C and 82°C water bath
  • Automatic stirrer lifting: Simplifies operation and ensures consistent test conditions
  • 4-sample testing: Efficient batch testing to improve productivity
  • 32-bit microprocessor: Stable performance and reliable measurement results
  • High-definition touchscreen: Intuitive interface for parameter setting and data viewing
  • Intelligent data storage: Stores test results for easy query and traceability
  • Self-check function: Monitors stirrer lifting and rotation for equipment health
  • Compliant design: Meets national standards GB/T 7305-87 and GB/T 7605-87

Parameter:

  • Model: KDRH-303A
  • Temperature Sensor: Platinum resistance
  • Water Bath Temperature: 54°C, 82°C
  • Temperature Control Accuracy: ±0.1°C
  • Stirring Speed: 1500±15 rpm
  • Number of Samples: 4
  • Display: High-definition color touchscreen
  • Power Supply: AC220V±22V, 50Hz±2.5Hz
  • Power Consumption: 1800VA
  • Dimensions: 358mm × 302mm × 858mm
  • Weight: ≈24kg
  • Operating Environment: 10°C~35°C, humidity ≤85%
