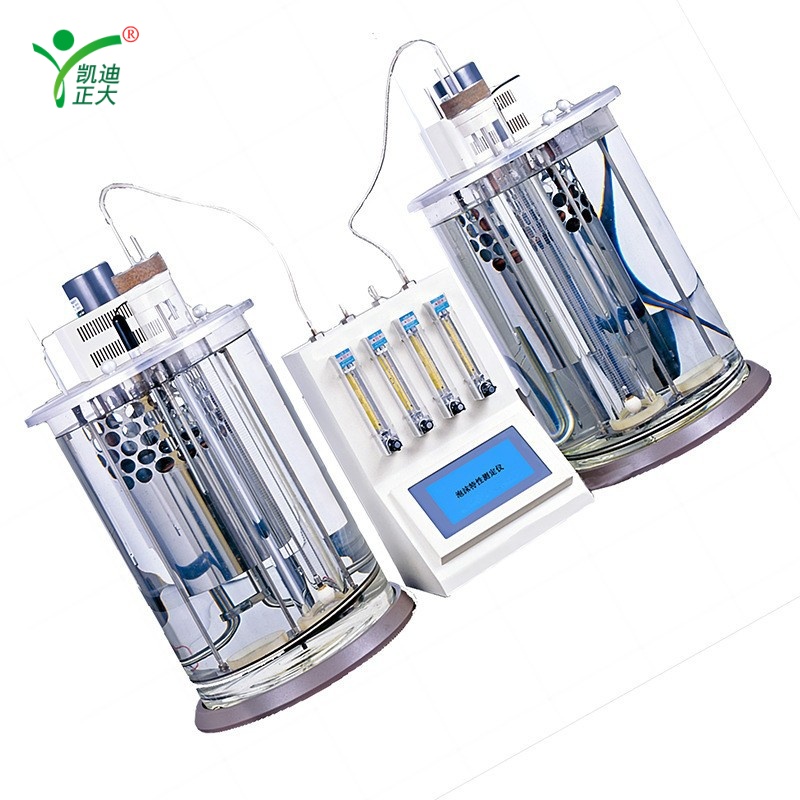

KDPM-303A Lubricating Oil Foam Characteristics Tester
KDPM-303A Lubricating Oil Foam Characteristics Tester

KDPM-303A Lubricating Oil Foam Characteristics Tester

Applications:

Used to test the foam characteristics of lubricating oils and other petroleum products, suitable for petroleum, power, and chemical industries to evaluate fluid stability and anti-foaming performance.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDPM-303A Foam Characteristics Tester is a precision instrument designed to measure the foaming tendency and stability of lubricating oils. It adopts a digital PID temperature control system with ±0.5°C accuracy, ensuring stable test conditions. The high-definition color touchscreen provides intuitive operation, while automatic timing and gas supply functions simplify testing. With precise air flow control and standardized diffusion heads, it delivers reliable results compliant with industry standards.

Features:

  • Digital PID temperature control: High precision ±0.5°C, covering low bath 24°C and high bath 93.5°C
  • Automatic operation: Auto timing and gas supply for easy testing
  • Precise air flow control: Each flowmeter maintains 94±5ml/min flow rate
  • Standardized diffusion head: Φ25.4±0.02mm diameter, max pore ≤80μm
  • High-definition touchscreen: Intuitive human-machine interface for parameter setting
  • Strong anti-interference: Stable performance in complex industrial environments
  • Compliant design: Meets international standards for foam characteristic testing

Parameter:

  • Model: KDPM-303A
  • Temperature Control Range: Low bath 24°C, High bath 93.5°C
  • Temperature Control Accuracy: ±0.5°C
  • Power Consumption: 3300W
  • Air Flow Rate: 94±5ml/min per flowmeter
  • Diffusion Head Diameter: Φ25.4±0.02mm (max pore ≤80μm)
  • Air Permeability: 3000-6000ml/min at 2.44KPa (250mm water column)
  • Power Supply: AC220V±5%, 50Hz±5%
  • Operating Environment: 10°C~35°C, humidity ≤85%
  • Weight: 39kg
