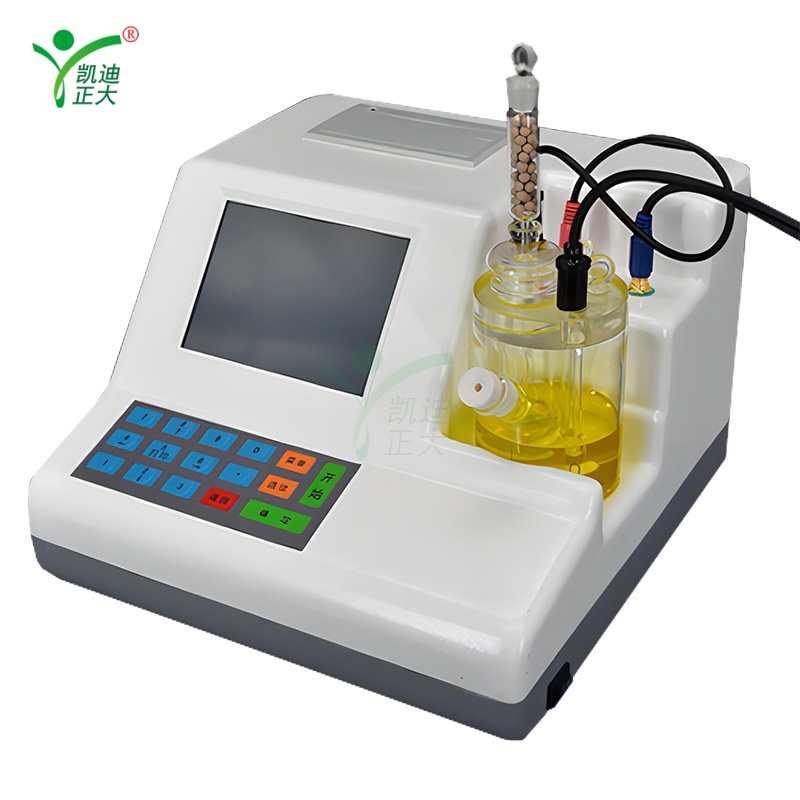

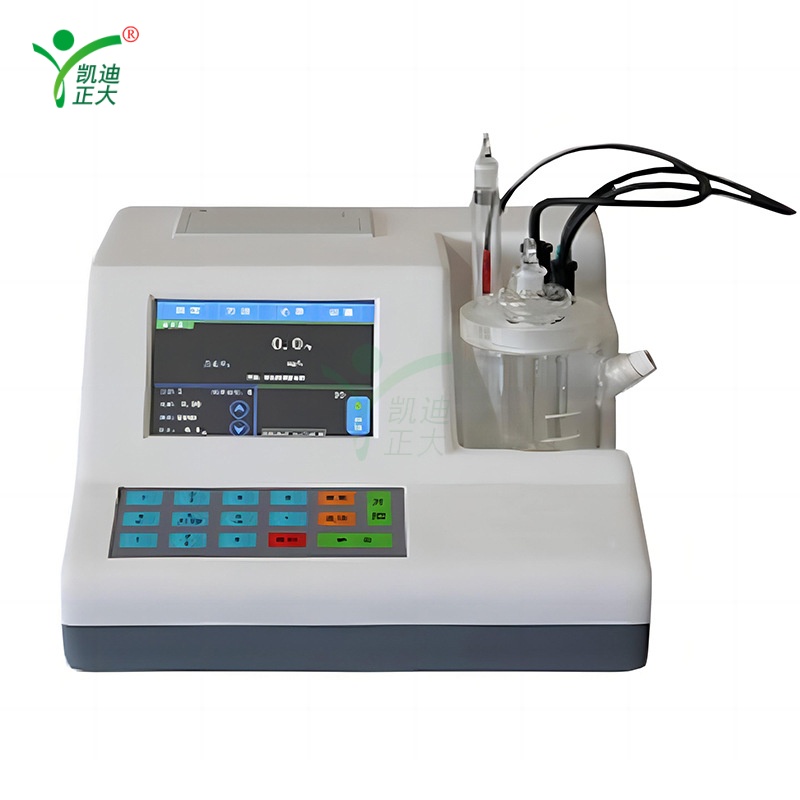

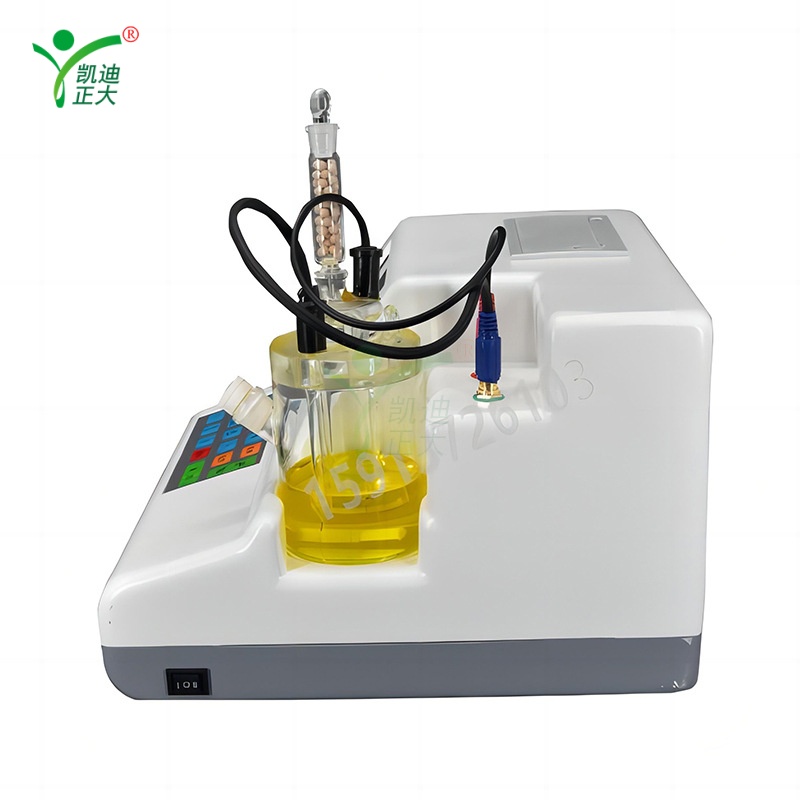

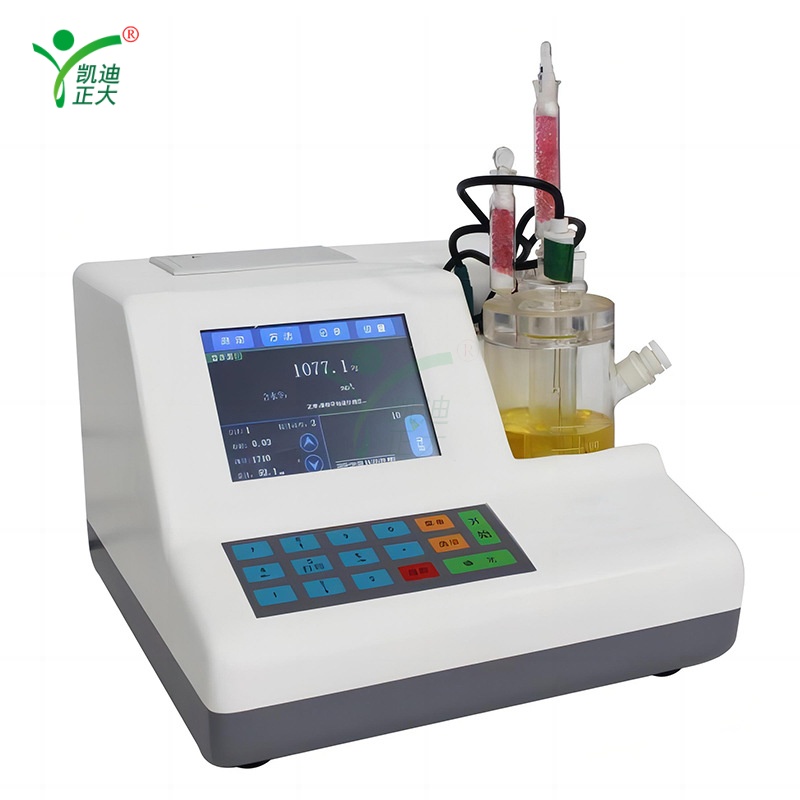

The KDWS-106P Automatic Trace Moisture Analyzer uses Karl Fischer coulometric titration to accurately measure trace moisture in liquid, solid, and gas samples. It features a 32-bit embedded microcontroller and mini operating system, ensuring stable performance and fast measurement. With automatic liquid addition, real-time electrolysis curve display, and 12 built-in analysis methods, it simplifies operation while delivering high precision. The touchscreen + physical key interface, data logging, and thermal printer make it ideal for laboratory and on-site testing.

• Karl Fischer coulometric titration: Sensitivity 0.1μg H₂O, high precision measurement
• Automatic control: Auto liquid addition/drainage, electrolysis current 0~400mA adjustable
• Dual operation modes: 5.6-inch color touchscreen + physical keys for reliable operation
• 12 analysis methods: Stores 6 common methods for flexible testing needs
• Data management: Time-stamped records, connectable to balance/computer for data transfer
• Built-in thermal printer: Instantly prints test results
• Strong anti-interference: Constant current detection ensures stable and reliable results
• Compact design: Portable (≈2.5kg) for easy on-site use

• Model: KDWS-106P
• Titration Method: Coulometric titration (coulomb analysis)
• Measurement Range: 1μg~200mg
• Sensitivity: 0.1μg H₂O
• Accuracy: 10μg~1000μg ±3μg; >1mg ≤0.3%
• Display: 5.6-inch color touchscreen (LCD)
• Electrolysis Current: 0~400mA (auto control)
• Power Supply: AC220V±10%, 50Hz
• Power Consumption: <40W
• Dimensions: 320mm × 280mm × 200mm
• Weight: ≈2.5kg
• Operating Environment: 5°C~40°C, humidity ≤85%
