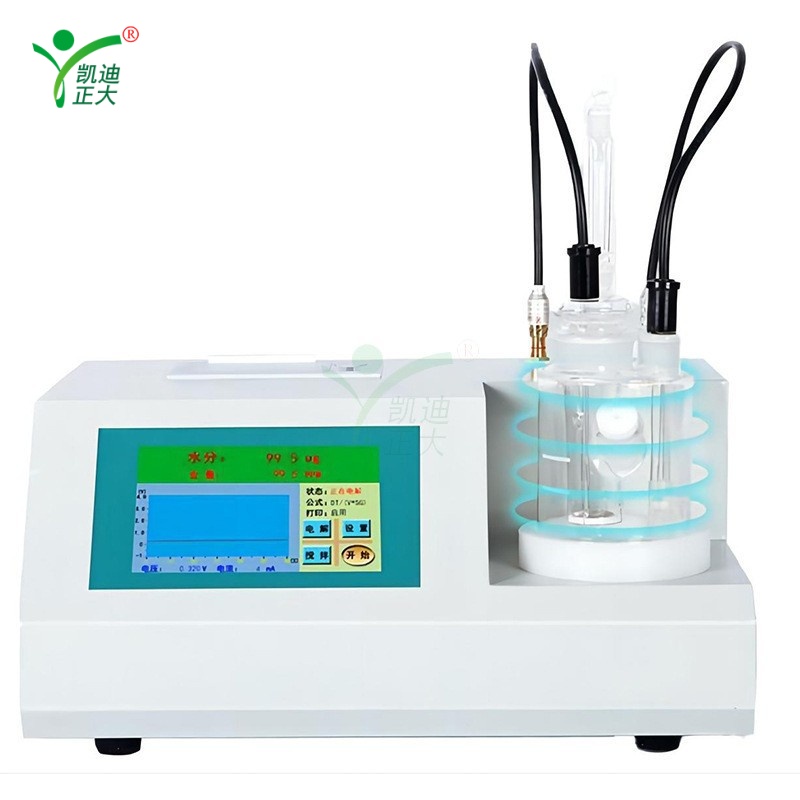

KDWS-106C Trace Moisture Analyzer for Insulating Oil
KDWS-106C Trace Moisture Analyzer for Insulating Oil

KDWS-106C Trace Moisture Analyzer for Insulating Oil

Applications:

Used for trace moisture measurement in insulating oil, transformer oil, and other liquid/gas/solid samples, suitable for power, petroleum, chemical, and research industries to ensure material insulation performance.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDWS-106C Trace Moisture Analyzer uses the Karl Fischer coulometric titration method to accurately measure trace moisture in various samples. It employs a 32-bit embedded microcontroller with a mini operating system, ensuring high precision and stable performance. With coulometric titration (coulomb analysis), it can detect moisture as low as 0.1μg, supporting solid, liquid, and gas samples. The touchscreen interface, data storage (1000 records), and built-in printer make it ideal for laboratory and on-site testing.

Features:

  • Karl Fischer coulometric titration: High precision (sensitivity 0.1μg) for trace moisture detection
  • Wide sample compatibility: Supports solid, liquid, and gas samples with optional samplers
  • 32-bit embedded system: Fast measurement, stable operation, and real-time electrolysis curve display
  • Touchscreen operation: 64K color high-definition touch display with user-friendly interface
  • Data management: Stores up to 1000 test records with power-off protection
  • Built-in thermal printer: 56mm paper width for instant result printing
  • Multiple calculation formulas: Flexible parameter adjustment for different sample types
  • Constant voltage detection: Ensures accurate and reliable measurement results

Parameter:

  • Model: KDWS-106C
  • Titration Method: Coulometric titration (coulomb analysis)
  • Measurement Range: 0μg~200mg (typical 10μg~100μg)
  • Sensitivity: 0.1μg
  • Accuracy: 3-1000μg ±3μg; >1000μg ±0.2% (excluding sample/environment humidity error)
  • Sample Type: Solid, liquid, gas
  • Display: 64K color high-definition touchscreen
  • Data Storage: 1000 test records
  • Printer: Micro thermal printer (56mm paper width)
  • Power Supply: AC220V±10V, 50Hz±2.5Hz
  • Power Consumption: 50VA
  • Dimensions: 330mm × 260mm × 220mm
  • Operating Environment: 5°C~35°C, humidity ≤85%
