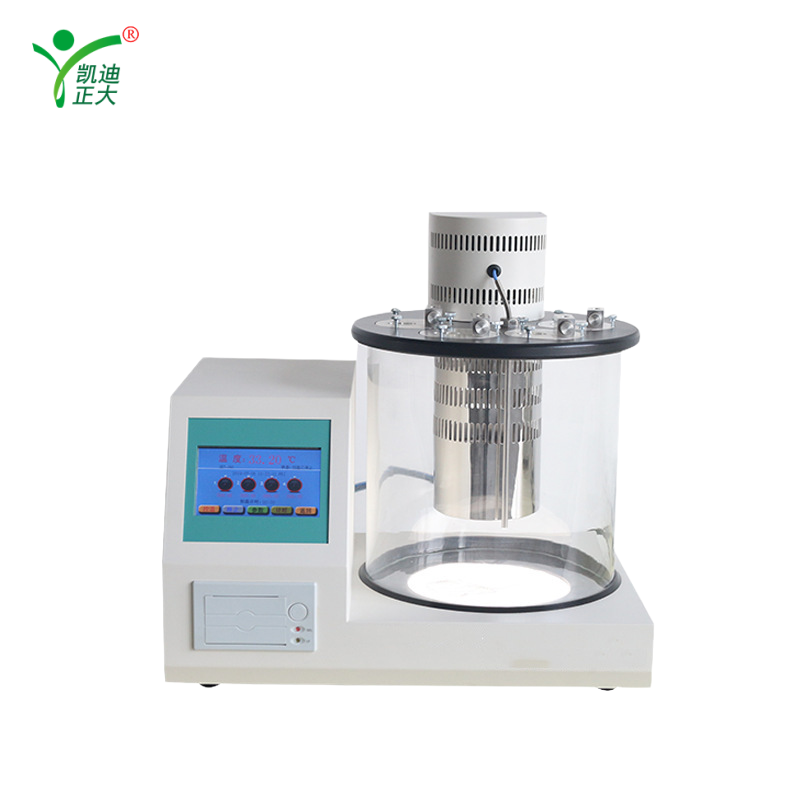

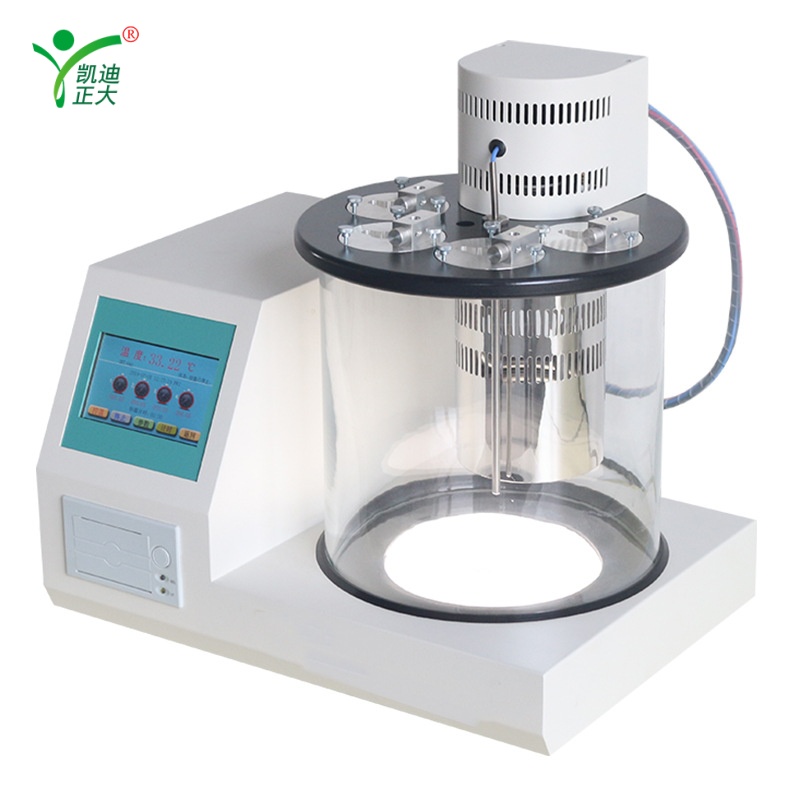

The KDND-303A Automatic Kinematic Viscosity Tester is a precision instrument designed to measure the kinematic viscosity of petroleum products according to GB/T265-1988. It uses fuzzy PID temperature control with ±0.02°C accuracy, supporting multiple standard temperature points (20°C, 40°C, 60°C, 80°C, 100°C). Equipped with 4 test holes for simultaneous measurement using glass capillary viscometers, it automatically processes timing results to calculate kinematic viscosity. The touchscreen interface, data storage (up to 2000 records), and built-in thermal printer make it ideal for laboratory testing and quality control.

• Fuzzy PID temperature control: Precision ±0.02°C, supports multiple standard temperature points
• 4 test holes: Simultaneous measurement with 4 capillary viscometers
• Automatic data processing: Removes outlier timing results and calculates average viscosity
• High-resolution touchscreen: Intuitive interface with fast response
• Large data storage: Up to 2000 test records
• Built-in thermal printer: Automatically prints test results and sample information
• Flexible timing settings: 1~4 times per test to balance speed and accuracy
• Compliant with GB/T265-1988 for reliable results

• Model: KDND-303A
• Temperature Control Range: Ambient ~150°C
• Temperature Control Accuracy: ±0.02°C
• Test Holes: 4 holes
• Timing Range: 0~999 seconds (≥200s per GB requirement)
• Timing Precision: 0.1 second
• Timing Times: 1~4 times (optional)
• Storage Capacity: 2000 test records
• Display: Color LCD + touchscreen
• Power Supply: AC220V±5% 50Hz±5%
• Power Consumption: 1600W
• Operating Environment: 5°C~35°C, humidity 10%~80%
