KDWG-III: Handheld SF6 Gas Leak Detector

KDWG-III: Handheld SF6 Gas Leak Detector

Applications:

The KDWG-III is a portable SF6 gas leak detector for substations, GIS, and circuit breakers. It detects SF6 leaks and refrigerant gases, providing quantitative measurements for power maintenance and safety monitoring.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

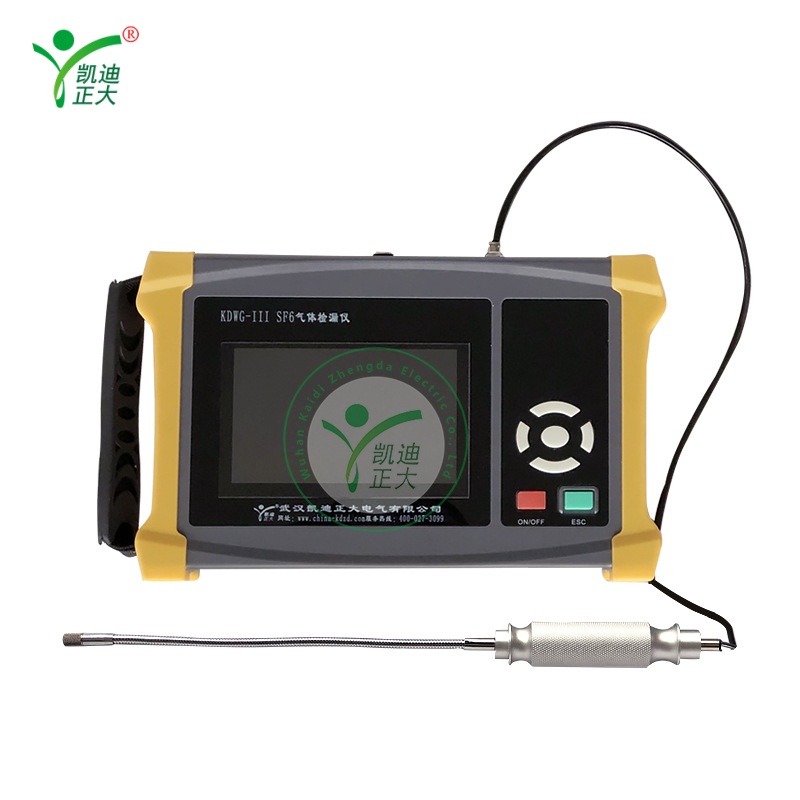

The KDWG-III is a high-sensitivity handheld SF6 gas leak detector using imported sensors for reliable quantitative measurement. It detects SF6 concentrations from 100~2000ppm with a response time <10 seconds, and can identify leaks as small as 3g/year. The flexible snake probe extends to 1m for hard-to-reach areas, while a rechargeable lithium battery supports 8 hours of continuous use. With a compact design (2kg) and intuitive LCD display, it is ideal for on-site SF6 leak detection in power systems and industrial settings.

Features:

High-sensitivity imported sensor for stable, accurate SF6 leak detection.
Flexible snake probe (up to 1m) for easy access to confined spaces.
Fast response (<10s) and quick recovery (<10s) for efficient field testing.
Built-in high-efficiency pump reduces response time without calibration needed.
Quantitative measurement with high accuracy (±10% reference error).
LCD display with backlight and multi-frequency audible/visual alarms.
Rechargeable lithium battery (AC/DC dual-use) for 8+ hours of continuous operation.
Compact, lightweight design (2kg) for easy portability and field deployment.
Detects SF6, HFC, CFC, HCFC refrigerants, and halogenated gases.

Parameter:

Model: KDWG-III
Detection Range: 100~2000ppm, Resolution: 100ppm
Minimum Detection Value: 100ppm; Maximum Sensitivity: 3g/year
Response Time: <10s; Recovery Time: <10s
Reference Error: ±10%; Repeatability Error: ≤5%
Probe Length: Flexible snake probe (extendable to 1m)
Continuous Working Time: ≥8 hours
Power Supply: Rechargeable lithium battery (AC/DC dual-use)
Operating Environment: Temp -25°C~+50°C, Humidity ≤85%RH
Dimensions: 230mm × 130mm × 46mm (L×W×H)
Net Weight: 2kg, Gross Weight: 5kg (with packaging)
Display: Backlit LCD with audible/visual alarm
Detection Objects: SF6, halogen gases, refrigerants (HFC, CFC, HCFC), and ethylene oxide
