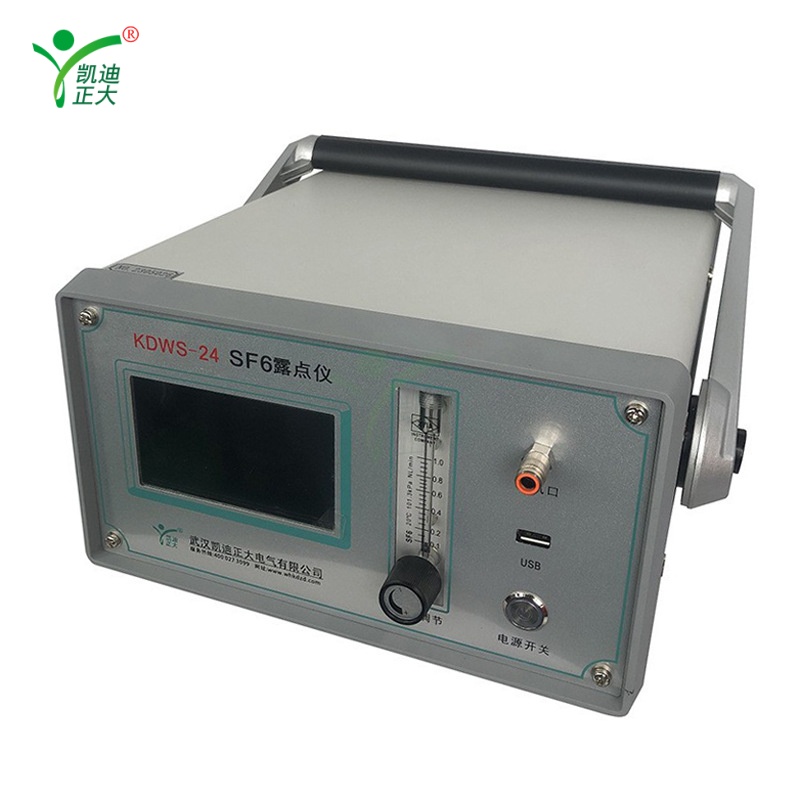

The KDWS-24 is a portable SF6 micro-water and dew point tester designed for accurate gas moisture analysis. It features a 3.5-inch color LCD that displays real-time dew point, micro-water (ppm), temperature, humidity, and battery status. With automatic zero calibration, it eliminates system errors and ensures measurement accuracy. The instrument uses German-made self-locking connectors for leak-proof operation, has a built-in rechargeable battery for up to 10 hours of field use, and supports data storage for 200 test sets, RS232 data transfer, and intuitive operation, making it a reliable solution for SF6 gas quality testing.

• Automatic zero-point calibration eliminates system errors from drift and ensures measurement accuracy.
• Lightweight and compact design (5kg) for easy portability and field deployment.
• Fast measurement response with dew point testing completed in ~2 minutes per test.
• Low gas consumption per test, minimizing operational costs.

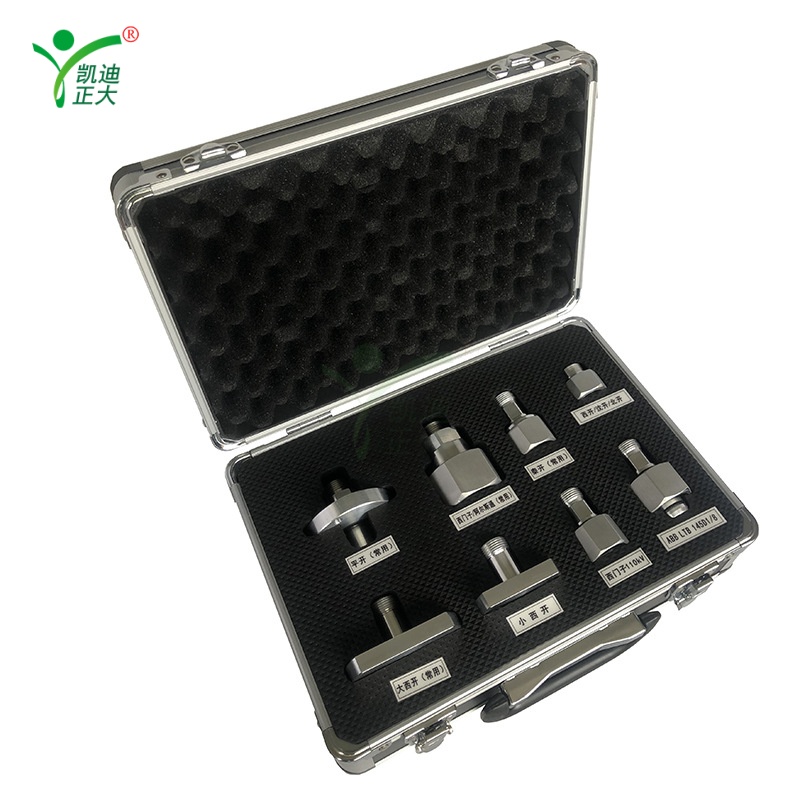

• German-made self-locking connectors ensure safe, reliable, and leak-free gas connections.
• Large-capacity data storage for up to 200 test records with historical data access.
• Large-screen curve display visualizes the dew point measurement process in real time.
• Built-in rechargeable lithium battery supports up to 10 hours of continuous field operation.
• RS232 interface enables PC data transfer for advanced analysis and report generation.
• High anti-pollution and anti-interference design for reliable operation in harsh environments.

• Dew Point Measurement Range: -80°C~+20°C, Resolution: 0.01°C or 0.1PPM
• Dew Point Accuracy: ±0.5°C (-60°C~+20°C); ±1.0°C (-80°C~-60°C)
• Response Time: At +20°C: 63% in 5s, 90% in 45s; At -60°C~+20°C: 63% in 10s, 90% in 240s
• Operating Environment: Temp -40°C~+60°C, Humidity 0~100% RH (non-condensing)
• Power Supply: AC220V/50Hz; Built-in rechargeable lithium battery (Charging time >20h, Continuous use >10h)
• Display: 3.5-inch color LCD showing dew point, micro-water (ppm), temperature, humidity, time, date, and battery level
• Data Storage: Stores up to 200 test records
• Interface: RS232 for PC data transfer
• Dimensions: 250mm × 150mm × 300mm (L×W×H)
• Net Weight: 5kg, Gross Weight: 17kg (with packaging)
• Gas Compatibility: SF6, air, nitrogen, inert gases, and non-corrosive gases
