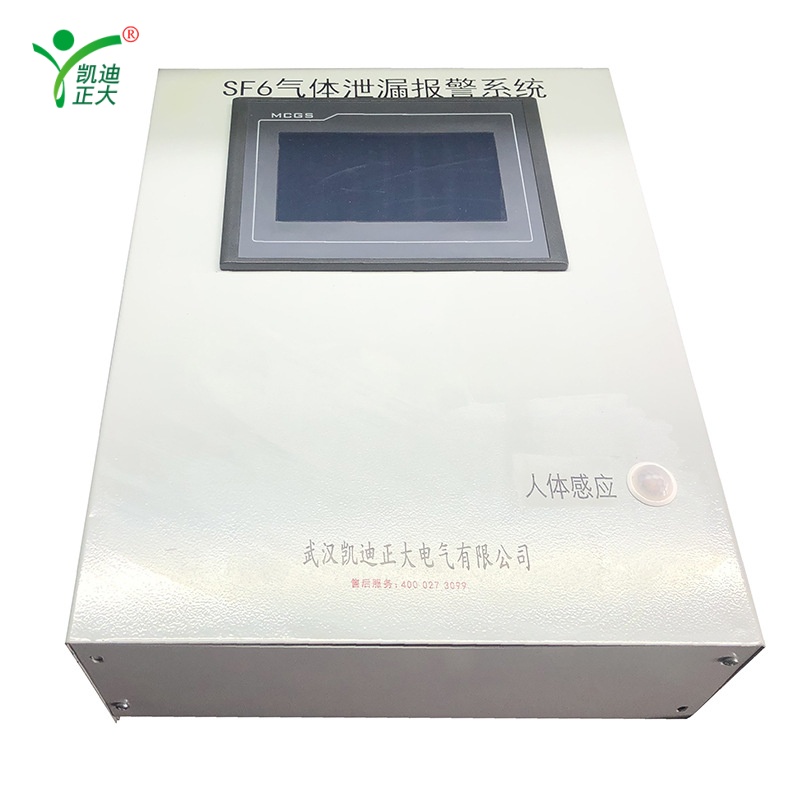

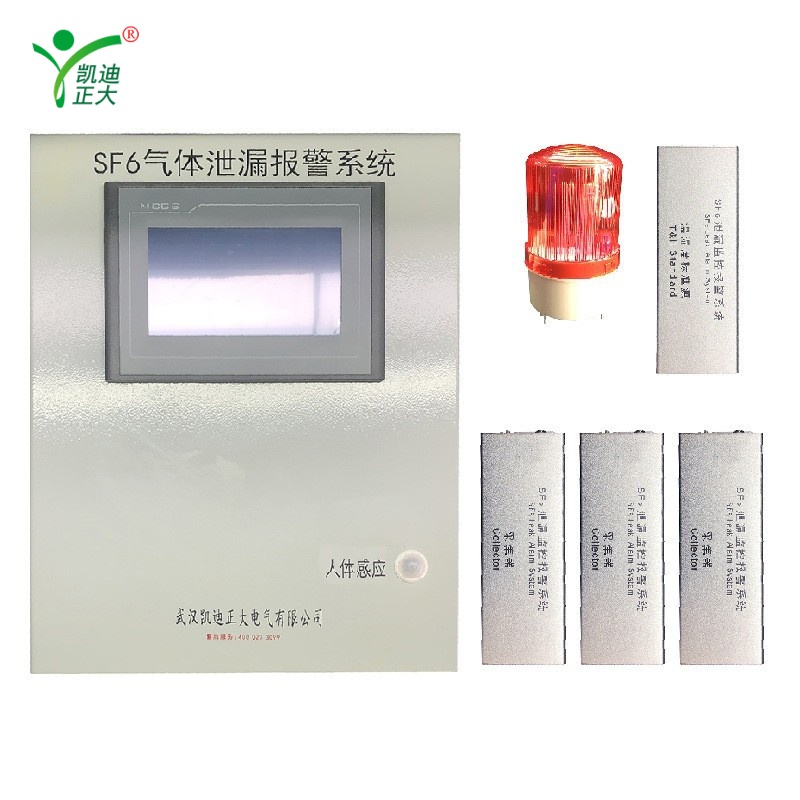

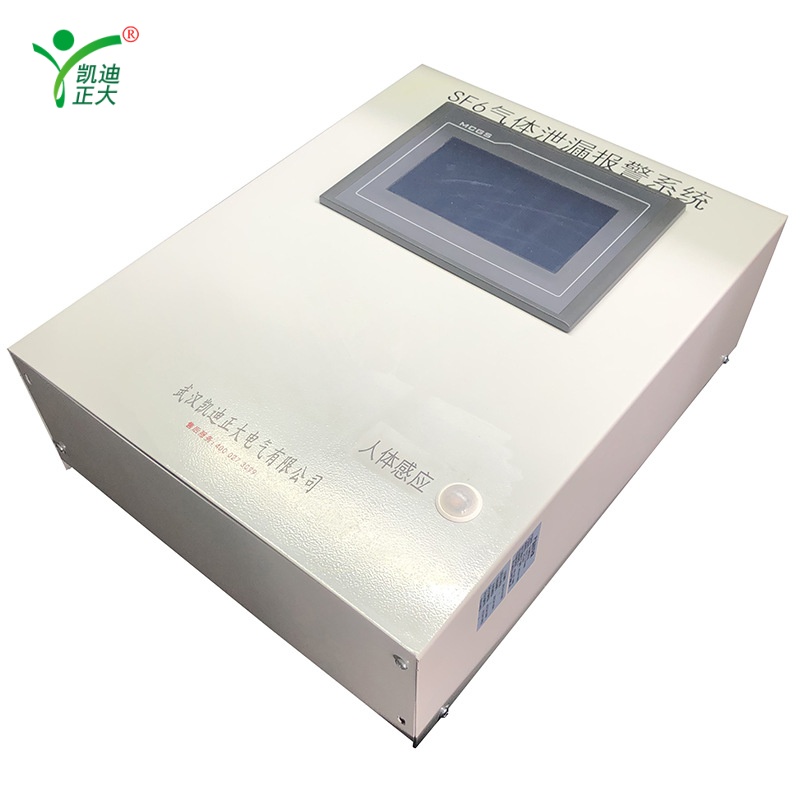

KDXJ-8: SF6 Gas Leak Alarm & Online Monitoring System
KDXJ-8: SF6 Gas Leak Alarm & Online Monitoring System

KDXJ-8: SF6 Gas Leak Alarm & Online Monitoring System

Applications:

The KDXJ-8 provides real-time online monitoring of SF6, O₂, and temperature in substations and GIS rooms. It triggers automatic ventilation and alarms for SF6 leaks or low oxygen, ensuring personnel safety and equipment reliability.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

  • The KDXJ-8 is a distributed SF6 gas leak alarm system designed for power substation safety. It quantitatively measures SF6 concentration (0~1000ppm), O₂ level, and ambient temperature, with customizable alarm thresholds. When SF6 exceeds limits or O₂ drops below safe levels, it automatically activates ventilation and triggers audible/visual alarms. The system supports wall-mounted installation, back-end monitoring, and data logging for up to 255 collection points, making it ideal for continuous safety monitoring in high-voltage equipment rooms.

Features:

  • Quantitative measurement of SF6, O₂, and temperature with high accuracy.
  • Customizable alarm thresholds for SF6 and O₂ concentrations.
  • Automatic ventilation and alarm activation when gas limits are breached.
  • Back-end monitoring and historical data storage for safety analysis.

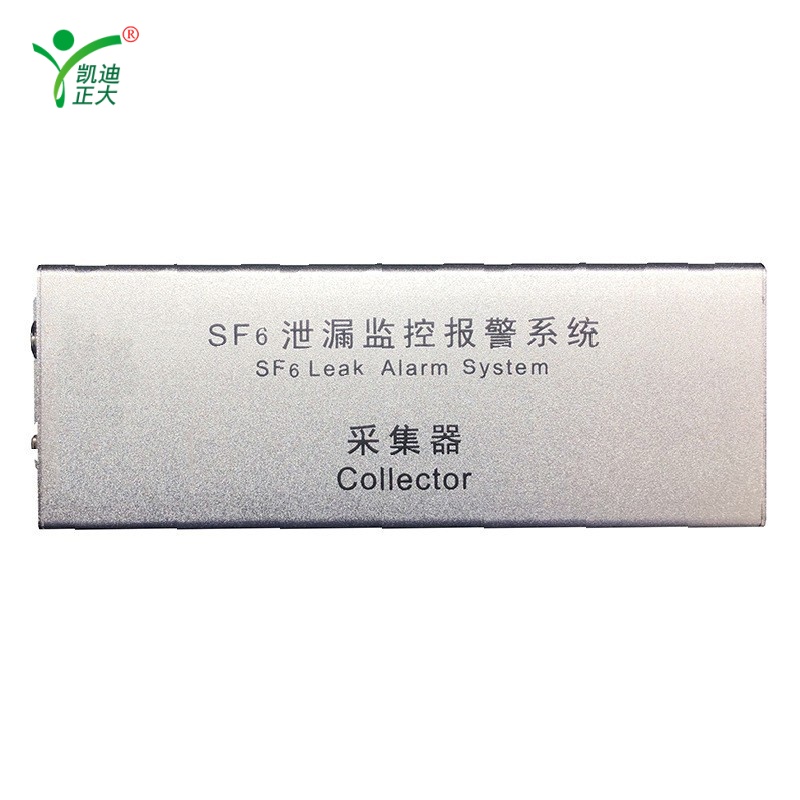

  • Distributed architecture supporting up to 255 collection points.
  • Wall-mounted design for flexible installation in equipment rooms.
  • Manual ventilation control for emergency operation.
  • Human body induction interface for intuitive local operation.
  • High reliability with stable performance in harsh environmental conditions.

Parameter:

  • Model: KDXJ-8
  • SF6 Measurement Range: 0~1000ppm, Accuracy: 2%F.S.
  • O₂ Measurement Range: 0~25%, Accuracy: 2%F.S.
  • Temperature Measurement Range: -40~123.8°C, Accuracy: ±0.5°C
  • Humidity Measurement Accuracy: ±4.5%RH
  • Alarm Thresholds: SF6 (0~1000ppm, default 1000ppm); O₂ (default 18%)
  • Power Supply: 220VAC ±10%
  • Operating Environment: Temp -10°C~+40°C, Humidity 0%~95%RH (non-condensing), Pressure 70kPa~110kPa
  • Storage Environment: Temp -40°C~+80°C
  • System Capacity: Up to 255 collection points
  • Dimensions: 300×400×100mm (main unit)
  • Net Weight: 25kg, Gross Weight: 26kg (with packaging)
  • Installation: Wall-mounted
