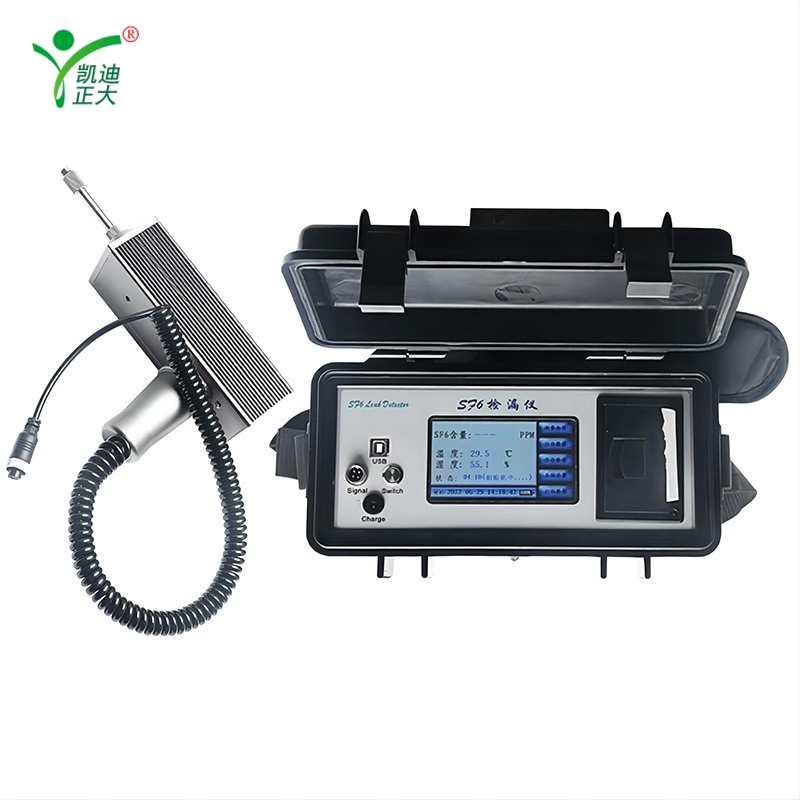

The KDZD-SF6 is a portable SF6 quantitative leak detector based on infrared spectral absorption (NDIR) technology. It features a 4.3-inch TFT touchscreen and a 32-bit ARM microcontroller for high-precision data sampling and analysis. With dual-wavelength temperature compensation, it delivers reliable measurements across a range of 0~999.9PPM, even at ultra-low concentrations (0.01PPM resolution). The infrared sensor offers a 10-year lifespan, no cross-interference with other gases, and low maintenance costs. It supports both digital and analog output, with a built-in rechargeable battery for field use, making it ideal for SF6 gas leak detection in power systems.

• NDIR infrared spectral absorption principle with dual-wavelength temperature compensation.
• 4.3-inch TFT touchscreen interface for intuitive operation and data visualization.
• 32-bit ARM microcontroller for high-speed, high-precision data processing.
• Large-capacity data storage for long-term leak monitoring and historical analysis.
• Automatic zero-point calibration in gas samples ensures measurement stability.

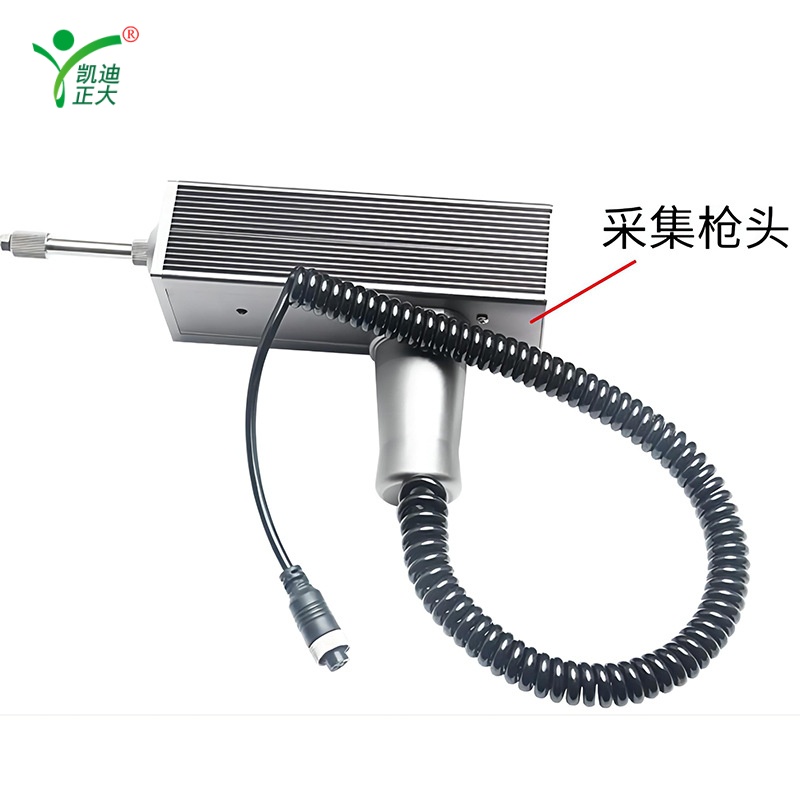

• Stainless steel sintered filter probe protects against contamination and extends sensor life.
• Anti-pollution and anti-interference design for reliable operation in harsh environments.
• High sensitivity and stability with fast response to trace SF6 leaks.

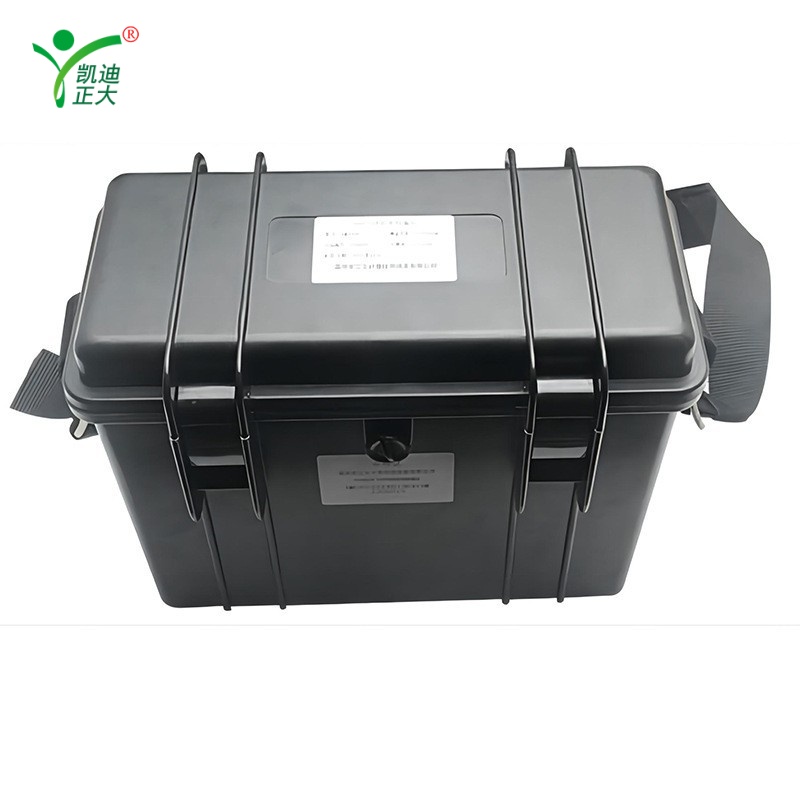

• Compact and portable structure for easy field deployment and on-site testing.
• AC/DC dual power supply with automatic switching and battery protection.

• Model: KDZD-SF6
• Measurement Range: 0~999.9PPM
• Accuracy: ±5%PPM (0~1000PPM)
• Resolution: 0.01ppm
• Repeatability: ±0.1PPM
• Gas Flow: Auto-adjustable
• Probe Protection: Stainless steel sintered filter mesh
• Power Supply: AC110~220V; Built-in rechargeable lithium battery (AC/DC auto-switch)
• Operating Environment: Temp -25°C~+60°C, Humidity non-condensing
• Storage Temperature: -25°C~+70°C
• Display: 4.3-inch TFT touchscreen color LCD
• Output: Digital and analog signals
• Sensor Lifespan: Up to 10 years (infrared type)
• Gross Weight: 23kg (with packaging)
• Protection: Overcharge, over-discharge, over-voltage, overheating, short-circuit protection
