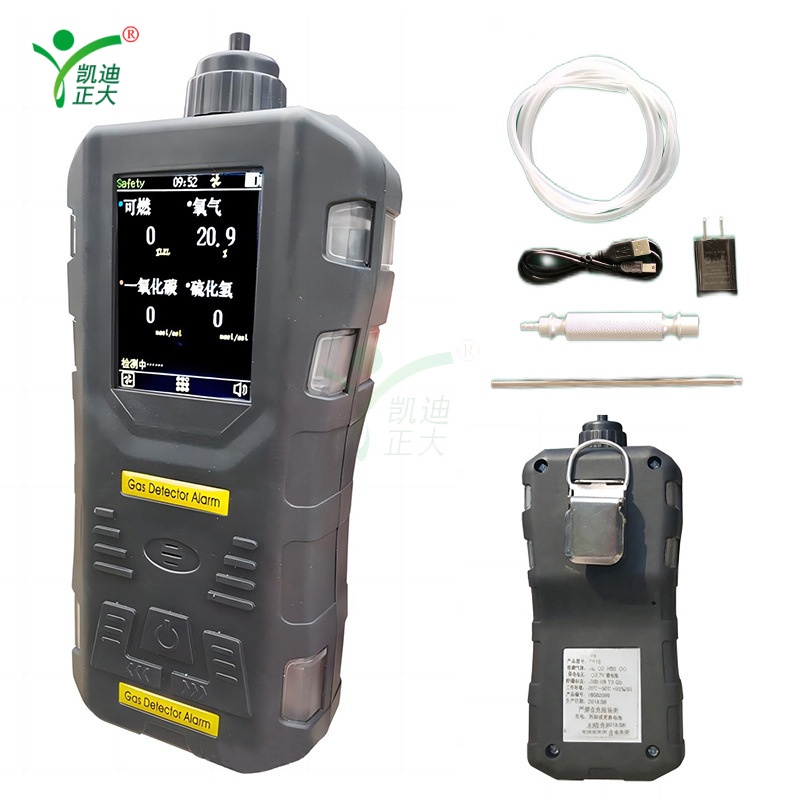

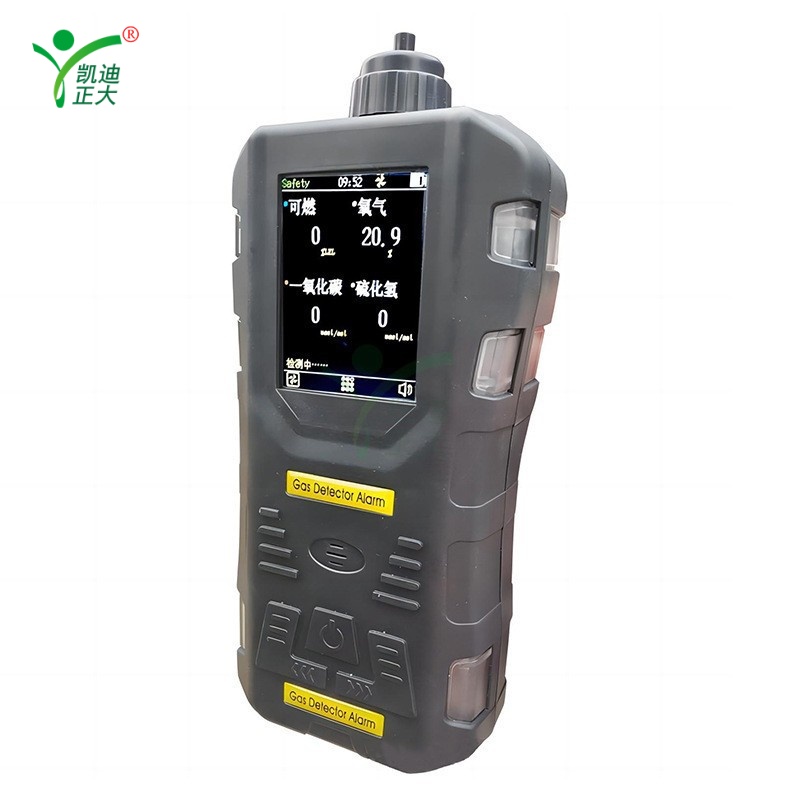

The KDZD400 is an intrinsically safe, portable multi-gas detector designed for hazardous environment monitoring. It uses high-performance imported sensors to detect up to 5 gases (combustible, toxic, O₂, CO, H₂S, etc.) with a pump-suction sampling method for fast response. The 2.4-inch IPS color LCD displays real-time concentrations, while sound, light, and vibration alarms alert users to over-limit conditions. With IP65 waterproof/dustproof protection, a rechargeable lithium battery, and data storage for 500 records, it is ideal for field safety monitoring in industrial and municipal applications.

• 2.4-inch high-definition IPS industrial screen for clear real-time data display.
• Flexible gas combination options (1~5 gases) with interchangeable sensor modules.
• Pump-suction sampling (optional built-in pump) for fast, accurate gas analysis in confined spaces.
• Intrinsically safe circuit design with anti-static and anti-electromagnetic interference protection.
• IP65 waterproof, dustproof, and explosion-proof housing for harsh environmental use.
• Built-in rechargeable lithium battery (3.7V 2000mA) for up to 10 hours of continuous operation.
• Data storage for up to 500 test records with PC upload capability for safety analysis.
• Multi-unit concentration display (PPM, %VOL, mg/m³) for versatile gas measurement.
• Temperature compensation function ensures accurate readings across varying environments.
• Sound, light, and vibration alarm system for immediate hazard notification.

• Model: KDZD400
• Detection Gases: Combustible gases, toxic gases (H₂S, SO₂, CO, etc.), O₂, CO₂ (customizable up to 5 gases)
• Measurement Range: 0~100ppm (customizable per gas), Accuracy: 3% F.S., Resolution: 1ppm
• Sampling Method: Pump-suction (optional built-in pump)
• Alarm Signals: Sound, light, and vibration alarms
• Display: 2.4-inch color IPS LCD showing gas concentrations and status
• Power Supply: 3.7V 2000mA rechargeable lithium battery; DC12V optional
• Operating Environment: Temp -20°C~+60°C, Humidity ≤95% RH
• Protection Class: IP65 (waterproof, dustproof, explosion-proof)
• Explosion Proof Standard: Exib IIB T3 Gb
• Data Storage: 500 groups of test records (non-volatile)
• Dimensions: 179mm × 76mm × 49mm (L×W×H)
• Net Weight: 0.6kg, Gross Weight: 5kg (with packaging)
• Calibration: Automatic temperature compensation and zero-point calibration
• Safety Features: Intrinsically safe circuit, anti-static, anti-electromagnetic interference
