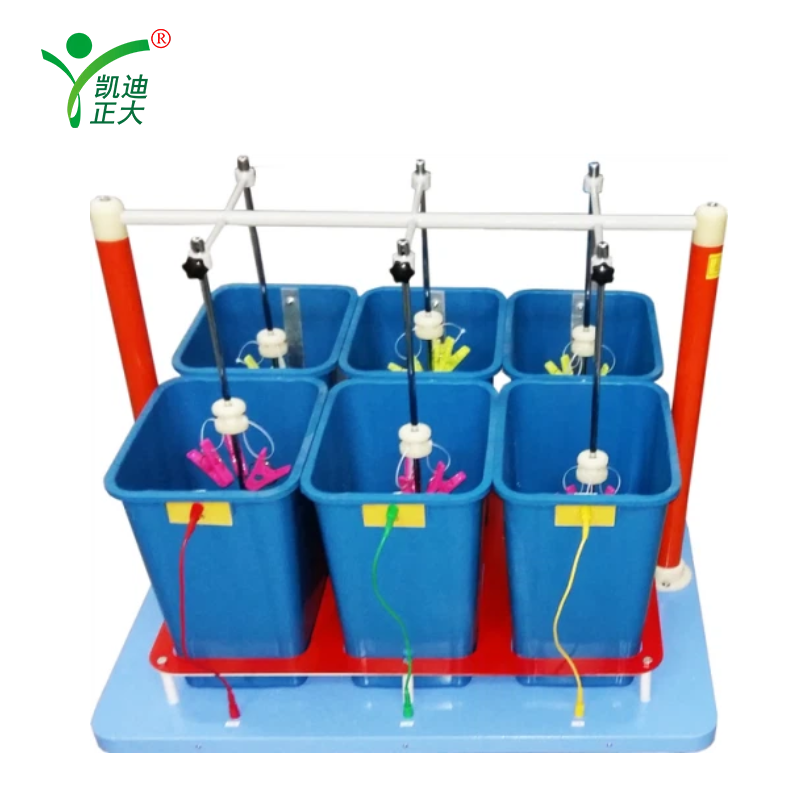

 KDJS-6 Series Insulating Boots and Gloves Withstand Voltage Water Tank
 KDJS-6 Series Insulating Boots and Gloves Withstand Voltage Water Tank

KDJS-6 Series Insulating Boots and Gloves Withstand Voltage Water Tank

Applications:

 KDJS-6 Series Insulating Boots and Gloves Withstand Voltage Water Tank is specially developed for insulating appliance laboratories, applied to withstand voltage and leakage current tests of insulating boots and gloves. It’s suitable for power industry labs to conduct professional and efficient detection of insulating protective gear performance.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDJS-6 Series Insulating Boots and Gloves Withstand Voltage Water Tank supports simultaneous withstand voltage and individual leakage current tests of 6 insulating boots or gloves.Each test channel is equipped with an independent high-voltage breaking mechanism; if a sample breaks down, the channel will automatically disconnect from high voltage without interrupting the whole test. It features both dry and wet test modes, with convenient water injection for wet tests and steel balls provided as high-voltage electrodes for insulating boots in dry tests.

Features:

  1. Withstand voltage grade: 70kV
  2. Test quantity: 6 pieces testable simultaneously
  3. Leakage current: 0-12.0mA
  4. Leakage current resolution: 0.1mA
  5. Allowable error of leakage current: ±(0.5%+ 2 digits)

Parameter:

Intelligent automatic trip test
  1. Number of tests: 6 can be tested simultaneously
  2. Weight: 38kg
  3. Size: 630*580*730mm

Manual
  1. Number of tests: 6 can be tested simultaneously
  2. Weight: 18kg
  3. Size: 600*650*630mm
