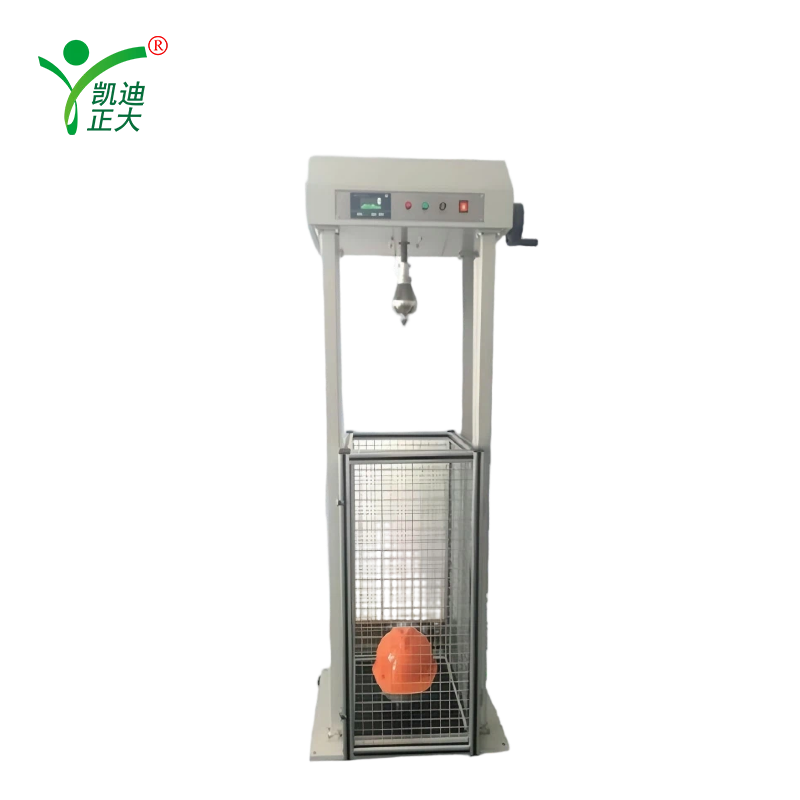

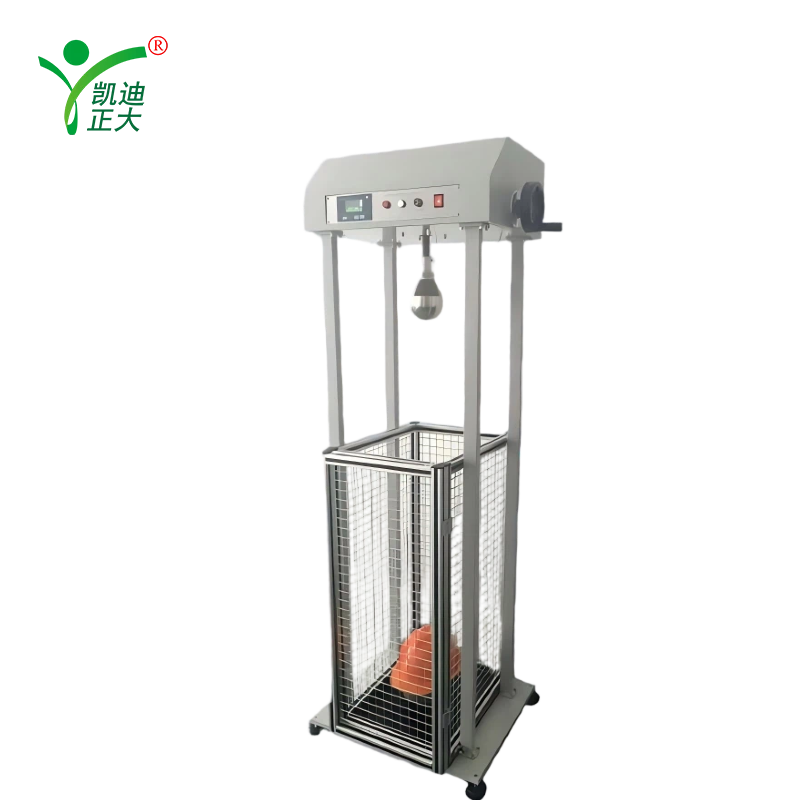

KDJS-AM Safety Helmet Impact and Puncture Tester
KDJS-AM Safety Helmet Impact and Puncture Tester

KDJS-AM Safety Helmet Impact and Puncture Tester

Applications:

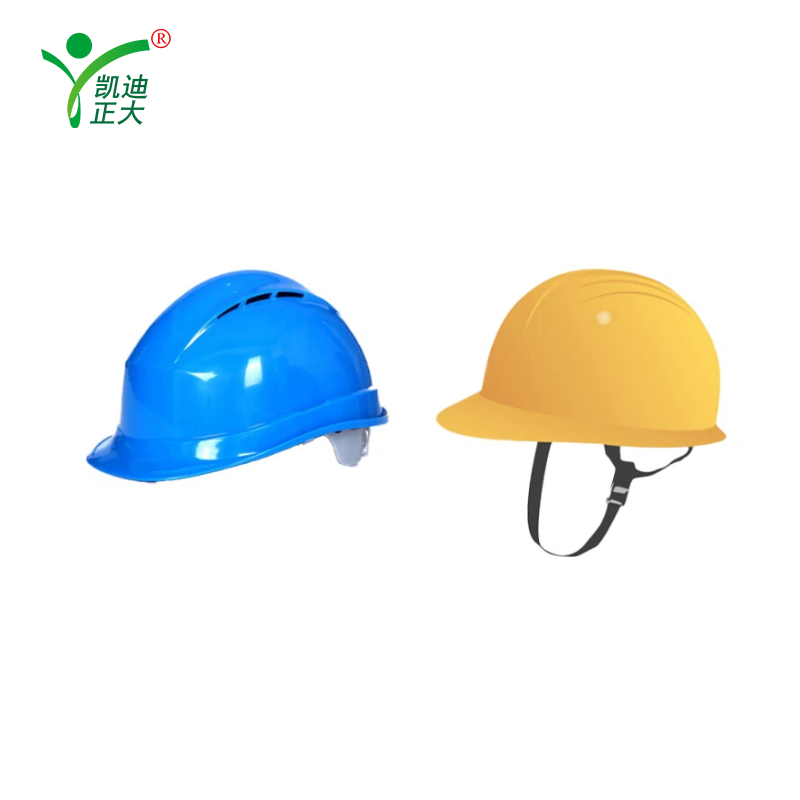

The KDJS-AM Safety Helmet Impact and Puncture Tester is for testing the impact and penetration resistance of safety helmets. It is widely used in helmet manufacturers, quality inspection institutions and construction engineering testing stations for product performance detection and quality verification.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDJS-AM Safety Helmet Impact and Puncture Tester is a professional device for detecting helmet impact and penetration performance. It features high automation and easy operation, complying with national standards and suitable for multiple testing scenarios in production and inspection.

Features:

  1. Microcomputer automatic control with special processing system for dynamic signal collection, data processing and output
  2. Built-in printing function for automatic recording and locking of peak impact force
  3. Adopts imported high-precision dynamic force sensor with 20KN measuring range
  4. Leakage-free magnetic adsorption structure for automatic centering of hammer and puncture cone
  5. Standard No.1 and No.2 metal head molds with repairable performance after impact
  6. European standard aluminum profile frame structure with built-in electrical circuits for high stability and aesthetic design
  7. Fixed impact height with simple and intuitive measurement for high test efficiency and accuracy
  8. Easy replacement of impact hammer and puncture hammer for convenient operation
  9. Surrounding metal protective net for enhanced operational safety and accident prevention
  10. Equipped with horizontal testing device at the bottom to ensure test level and precision
  11. Free fall impact mode simulates actual use and ensures testing accuracy without speed compensation



Parameter:

  1. Head mold: Complies with the provisions of Appendix A of GB/T 2812－2006
  2. Bench: Capable of controlling suspension and release of impact hammer and puncture cone
  3. Impact hammer: Mass 5.0±0.01kg, hemispherical head R48mm, 45# steel, symmetrical shape
  4. Puncture cone: Mass 3.0±0.01kg, cone angle 60°, tip radius 0.5mm, length 40mm, max diameter 28mm, hardness HRC45
  5. Force sensor: Measuring range 0—20KN, minimum frequency response 5kHz, dynamic sensor, accuracy 1N
  6. Base: Impact-resistant, for firm installation of force sensor
  7. Power-on display device: Sends signal when closed circuit is formed to indicate head mold contact
  8. Hammer drop height: 1000mm±5mm
  9. Head mold: 1 piece of No.1 and No.2 magnesium-aluminum alloy mold each, mass 5.0kg±0.1kg, complying with GB/T 2812－2006 Appendix A
  10. Working power supply: AC220V, 50Hz
