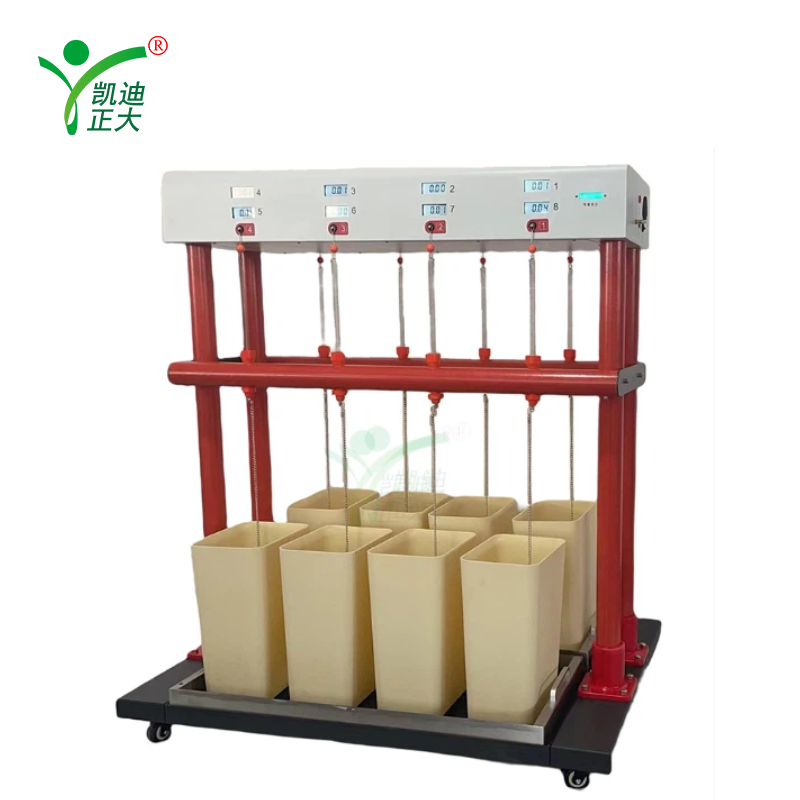

KDZD Automatic Trip Insulating Boots (Gloves) Withstand Voltage Stand
KDZD Automatic Trip Insulating Boots (Gloves) Withstand Voltage Stand

KDZD Automatic Trip Insulating Boots (Gloves) Withstand Voltage Stand

Applications:

This automatic trip withstand voltage stand is for power frequency withstand voltage tests of insulating boots and gloves in the power industry, complying with multiple national standards. It is widely used in power maintenance, live working and electrical inspection for preventive testing of electrical safety tools.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

Developed per national power industry standards, the KDZD automatic trip stand conducts intelligent withstand voltage tests for insulating boots and gloves. It features automatic trip protection and leak current measurement, meeting the half-yearly preventive test requirements for power safety tools.

Features:

  1. Supports simultaneous tests of 8 insulating boots/gloves with independent leak current measurement for each sample
  2. Adopts dry test method with steel balls for insulating shoes, avoiding water filling and liner drying troubles
  3. Lithium battery powered for leak current sampling and trip mechanism with battery level percentage display
  4. High and low voltage separation design with high-brightness LED modules for 8-channel leak current display
  5. Independent tripping mechanism for each channel, auto-disconnecting faulty samples without affecting others
  6. Adjustable tripping current via buttons for flexible adaptation to different test requirements
  7. Special stainless steel grounding tray for boots and containers for gloves for easy operation

Parameter:

  1. Power supply: DC 12V lithium battery
  2. Rated voltage: 50kV
  3. Maximum measuring range: 30.0mA
  4. Leak current measurement error: ±1% +3 digits
  5. Leak current resolution: 0.01mA
  6. Ambient temperature: -10℃ ~ 40℃
  7. Relative humidity: ≤90%RH (no condensation, no instrument flicker)
  8. Overall dimension: 850×800×110mm
  9. Weight: 20kg
  10. Test range: AC withstand voltage test of insulating shoes and gloves
