KDJS-6 Insulatiing Glove Withstand Voltage Test Device
KDJS-6 Insulatiing Glove Withstand Voltage Test Device

KDJS-6 Insulatiing Glove Withstand Voltage Test Device

Applications:

The KDJS-6 insulating glove withstand voltage test device is for batch AC withstand voltage tests of insulating gloves and boots in the power industry, widely applied in power maintenance, live working and electrical inspection institutions for performance detection and preventive testing of insulating protective gear.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

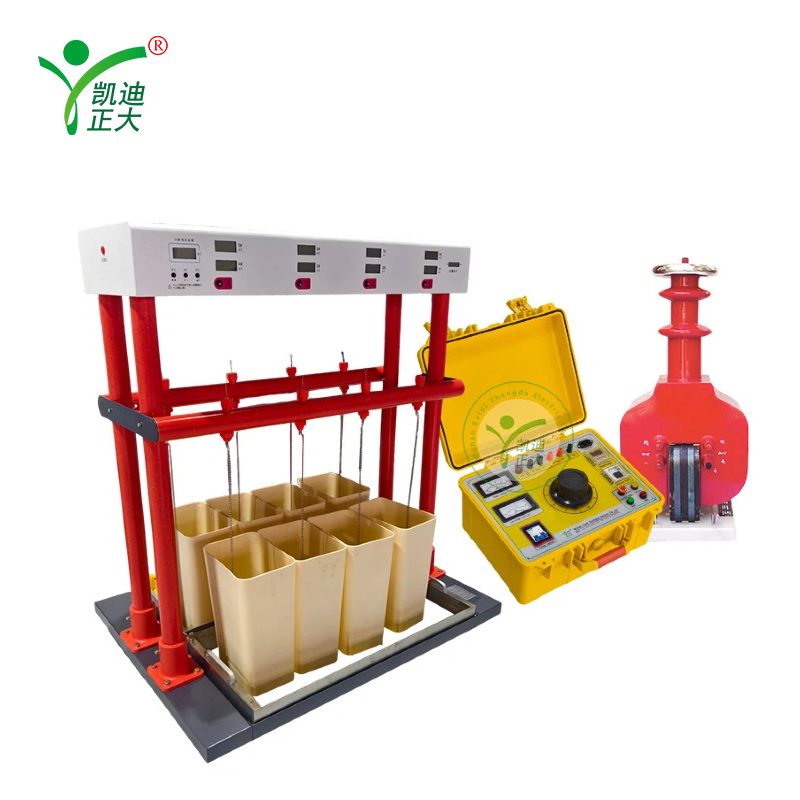

The KDJS-6 is a dedicated device for batch testing of insulating gloves and boots, integrating high-voltage power supply and control system. It simplifies testing procedures, boosts detection efficiency and ensures operator safety with simultaneous testing of six pieces and accurate parameter measurement.

Features:

  1. Integrated high-voltage power supply and control system with convenient wiring, operation and complete protection functions
  2. Six test barrels enable simultaneous withstand voltage tests of six insulating gloves or boots for high testing efficiency
  3. Six digital ammeters for intuitive leak current display with overcurrent automatic protection for each meter
  4. Flexible chain high-voltage electrodes with adjustable height to adapt to different test barrels and samples
  5. H62 copper electrodes with CU/EpNi5bc plating for low discharge and stable, reliable test performance

Parameter:

  1. Rated capacity: 3kVA
  2. Input voltage: AC220V±10%, 50Hz±1
  3. Output voltage: AC 0~30kV
  4. Voltage accuracy: ≤2.5% (F.S)
  5. Low-voltage current: 0~15A
  6. Leakage current: 0~10.0mA
  7. Leakage current resolution: 0.1mA
  8. Current accuracy: ≤2.0% (F.S)
  9. Timing range: 0~999H
  10. Ambient temperature: -20℃ ~ 50℃
