KDZD608A Shielding Suit Efficiency Test Device
KDZD608A Shielding Suit Efficiency Test Device

KDZD608A Shielding Suit Efficiency Test Device

Applications:

The KDZD608A shielding suit efficiency tester is a professional device for shielding efficiency tests of live working shielding suits, widely applied in power systems, manufacturing plants and scientific research institutions for regular performance detection complying with national and industry standards.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

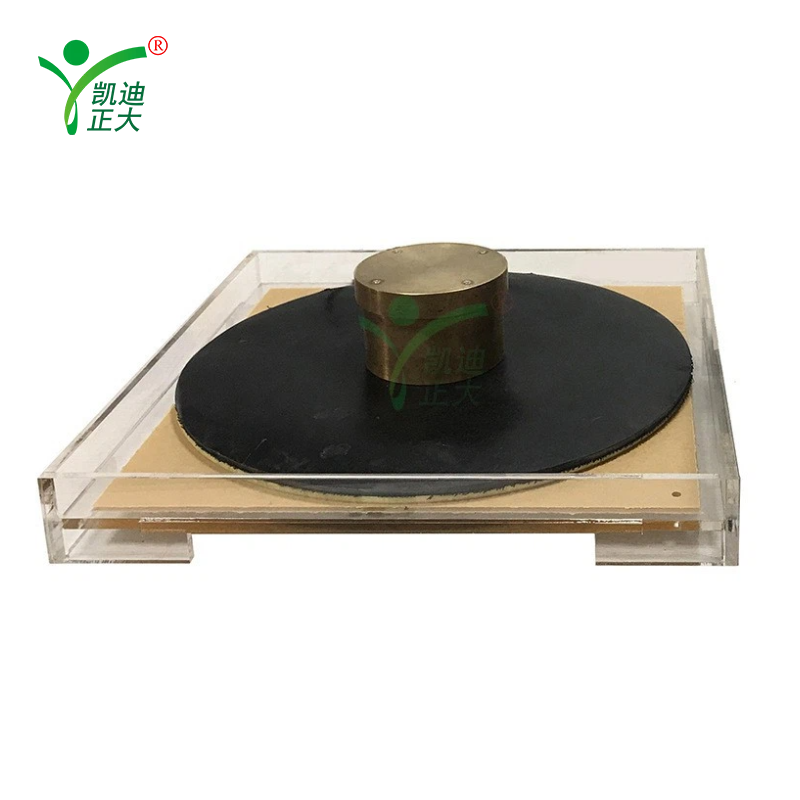

Designed per GB/T 6568-2008 and DL/T 976-2017, the KDZD608A consists of a host, pressure and receiving electrodes. It integrates a sine wave inverter and measurement module, enabling automatic test, calculation and result output with AC 220V power supply.

Features:

  1. Outputs single-phase AC test power and automatically calculates the shielding efficiency of shielding suits
  2. Large LCD screen with Chinese menu interface and tabular data management for easy operation
  3. Equipped with software calibration function to realize automatic voltage calibration
  4. Built-in real-time clock to record the test time accurately and synchronously
  5. Stores up to 20 sets of test records for real-time inquiry of shielding efficiency data
  6. Adopts high-speed thermal printer to print test results on site immediately
  7. Accessible to match with test management software for data upload to local server and office automation

Parameter:

  1. Applied voltage range: 100~600V (RMS), error ＜±1% of reading
  2. Response voltage range: 15mV~20V (RMS), error ＜±1% of reading
  3. Working ambient temperature: -10 ~ 40℃
  4. Relative humidity: ≤85%
  5. Working power supply: AC 187V~242V, 50Hz±1Hz
