KDJS-6 Insulating Boots and Gloves Withstand Voltage Tester
KDJS-6 Insulating Boots and Gloves Withstand Voltage Tester

KDJS-6 Insulating Boots and Gloves Withstand Voltage Tester

Applications:

The KDJS-6 automatic withstand voltage test device is for batch tests of insulating boots, gloves and rods in the power industry, complying with DL408. It is widely used in power operation, maintenance and inspection institutions for preventive performance testing of electrical safety tools with high efficiency and safety.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDJS-6 is a dedicated batch test device for insulating boots, gloves and rods, solving irregular testing problems with multi-channel high-voltage leakage measurement. It supports 6 simultaneous tests, automatic operation and safe isolation, meeting the half-yearly test requirements of power safety regulations.

Features:

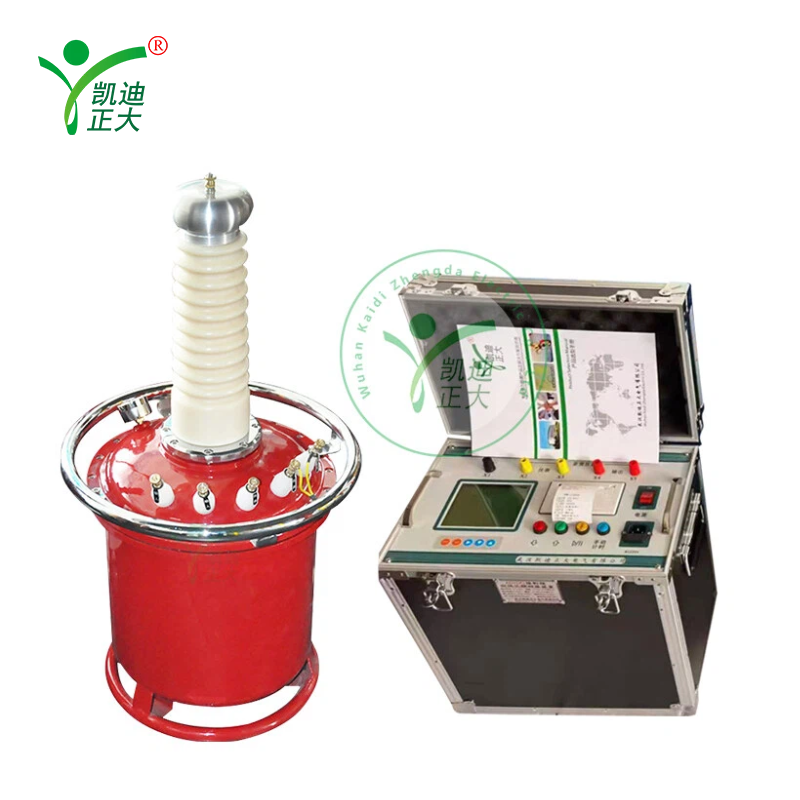

  1. Consists of intelligent boost operation box, dry test transformer, water tank, optional insulating rod support for complete test configuration

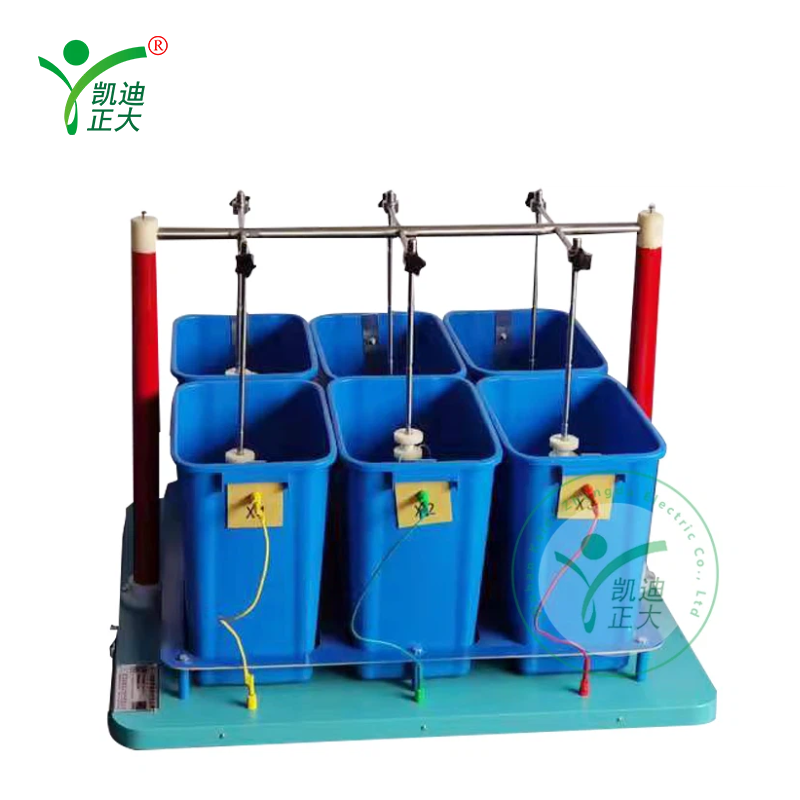

  2. 6 test barrels for 6 boots/gloves and 8-12 insulating rod sections (matching with optional test stand) simultaneously

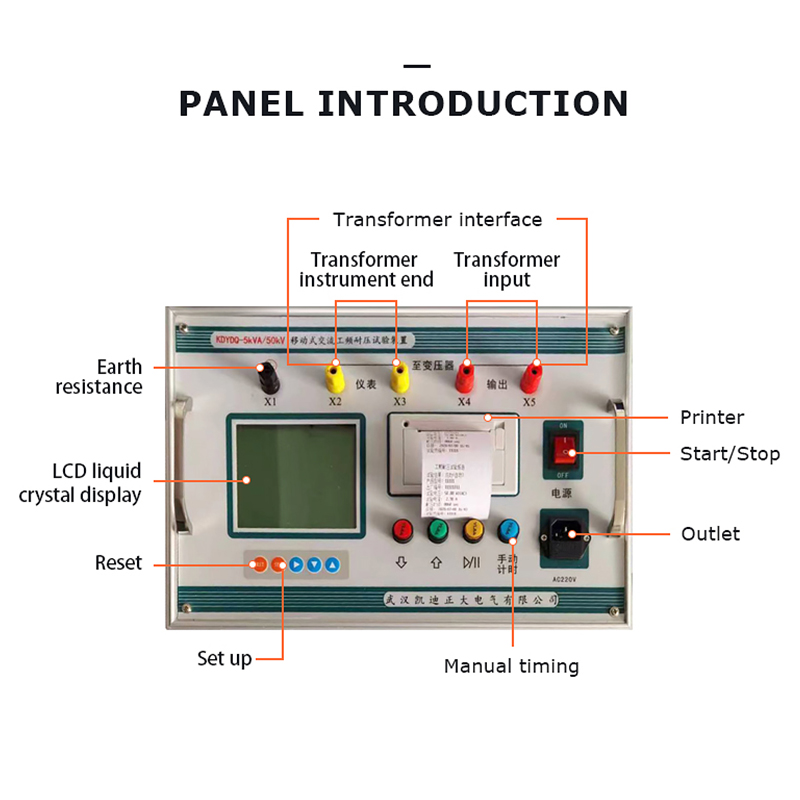

  3. Equipped with LCD display and high-speed thermal printer for intuitive display and on-site result printing
  4. 4-channel measurement of HV/LV voltage and current with high-precision sensors and 14-bit AD acquisition chips
  5. Full-key human-machine interaction with optional automatic and manual intelligent working modes
  6. Real-time display of HV/LV voltage, current, test time and results for intuitive data reading
  7. Complete over-voltage and over-current protection with settable upper limits and timing time
  8. Zero return detection function for safe test startup only after confirmed zero return
  9. Built-in insulation resistance test function to directly reflect the insulation strength of tested samples
  10. Approaching voltage regulation algorithm with automatic pressure holding, timing, step-down and zero return
  11. Automatic voltage cut-off, step-down, zero return and sound-light alarm when exceeding current limits
  12. Soft chain high-voltage electrode with adjustable height for adaptive testing of different samples
  13. Displays and prints voltage and leakage current values of each tested sample for complete data recording
  14. Customizable test parameters including protection thresholds, time, voltage and leakage current

Parameter:

  1. Test quantity: 6 pieces per time
  2. Rated capacity: 0～10kVA
  3. Input voltage: AC220V±10%, 50Hz±1
  4. Output voltage: AC 0～100kV
  5. Voltage resolution: 0.1kV
  6. Boost speed: 0.5kV/S ～ 5kV/S (optional)
  7. Low-voltage current: 0～15A
  8. Current allowable error: ＜±(0.2%I+0.02%Imax)
  9. Leakage current: 0～25.0mA
  10. Voltage measurement accuracy: ±2% (±3 digits)
  11. Current measurement accuracy: ±2% (±3 digits)
  12. Measurable data: Voltage and leakage current of each tested sample (displayable and printable)
  13. Protection functions: Over-current protection, over-voltage protection, customizable test parameters
  14. Timing range: 0~999H
  15. One-time test completion time: About 75 seconds
  16. Ambient temperature: -20℃ ~ 50℃
