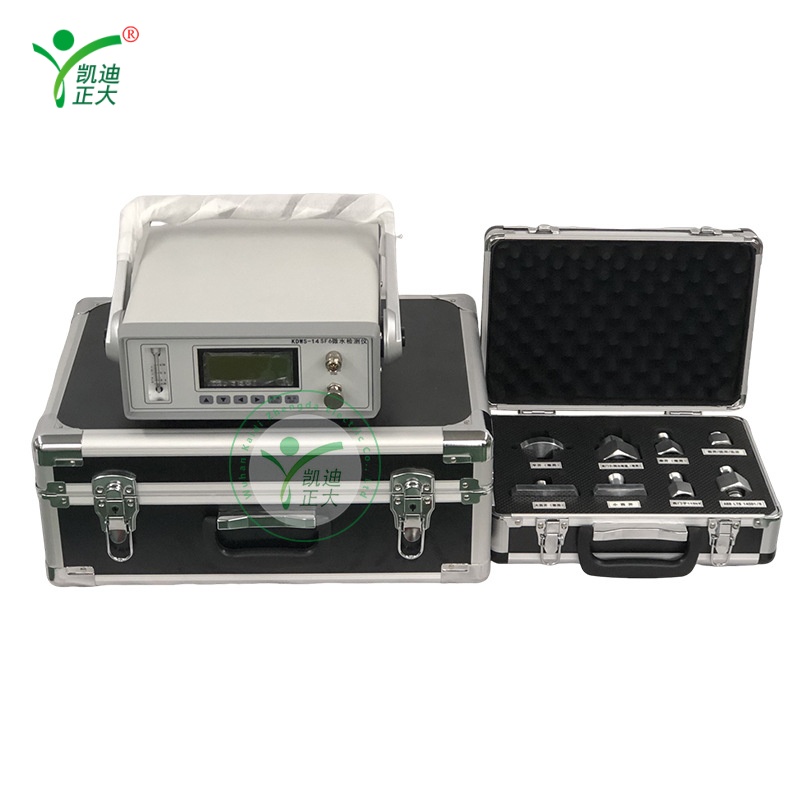

The KDWS-14 SF6 micro water measuring instrument is currently a high-quality replacement product for humidity measurement. It embodies new technology and design from the core to the appearance. The KDWS-14 intelligent micro water measuring instrument was jointly developed by senior engineers from Wuhan Kaidi Zhengda Electric Co., Ltd. and technical forces from universities, and has been recognized by experts and users.

The KDWS-14 SF6 micro water measuring instrument adopts the Vaisala DRYCAP (R) humidity sensor, which has the advantages of high accuracy, good repeatability, fast testing speed, and small drift. It is the choice for industrial environments with low dew point and the need to control dry point. It has a chemical removal option, which enables the product to perform precise and stable measurements in environments with high concentrations of chemicals and cleaning agents, ensuring accurate measurements between each calibration interval.

1. The portable design of this intelligent micro water measuring instrument: the instrument is lighter, easy to carry and use

2. Fast measurement: After the instrument is turned on, there is no need to wait, it can measure immediately and quickly obtain the humidity value

3. Fast gas saving: The gas consumption during measurement is only about 2L (101.2kPa)

4. Self locking joint: using German imported self-locking joints, safe and reliable, no air leakage

5. Data storage: This intelligent micro water measuring instrument adopts a large capacity design and can store up to 50 sets of test data

6. Clear display: The LCD screen directly displays dew point, micro water (ppm), ambient temperature, ambient humidity, time and date, battery level, and other content

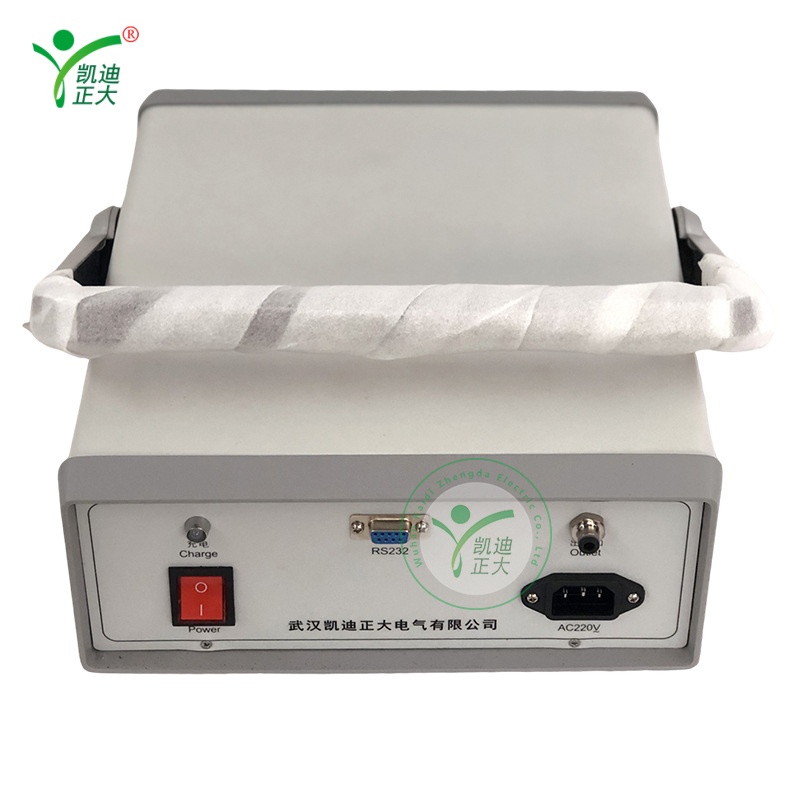

7. RS232 interface: can be connected to a serial printer for data printing

8. Built in power supply: Equipped with a 4Ah rechargeable lithium battery, it can work continuously for 10 hours when fully charged once

1. Measurement range: Dew point -80~+20 ℃; (Supports ppmv, etc.);
2. Measurement accuracy: The testing accuracy is better than ± 0.5 ℃ (within a certain range);
When the dew point temperature is below 0 ℃, the sensor output is frost point;
3. Response time: 63% takes 45 seconds, 90% takes 90 seconds (+20 ℃)
+20→-20℃ Td 5s[45s]
-20→-60℃ Td10s[240s];
4. Resolution: Dew point 0.1 ℃ or 0.1ppm;
5. Repeatability: ± 0.5 ℃
6. Gas flow rate: 0.4-1 (L/min); Adjust SF6 at 0.5-0.9L/min and H2 at 0.1-0.4L/min;
7. Pressure measurement: 0-1.0MPa
8. Probe protection: Stainless steel sintered filter screen.
9. Working temperature: -40 ℃ to+80 ℃
10. Operating environment: Temperature: -35 to+60 ℃; Pressure: 0-20 bar.
11. Electronic mass flowmeter.
12. Working voltage: 110-220VAC, built-in rechargeable battery, dual-use for AC and DC.
13. Lithium battery, AC/DC dual-use, automatic switching, overcharge and over discharge protection function.
14. Battery performance: Charging time of more than 20 hours, can be used for 10 hours
15. Size and weight: 250 × 100 × 300mm3; 3kg
