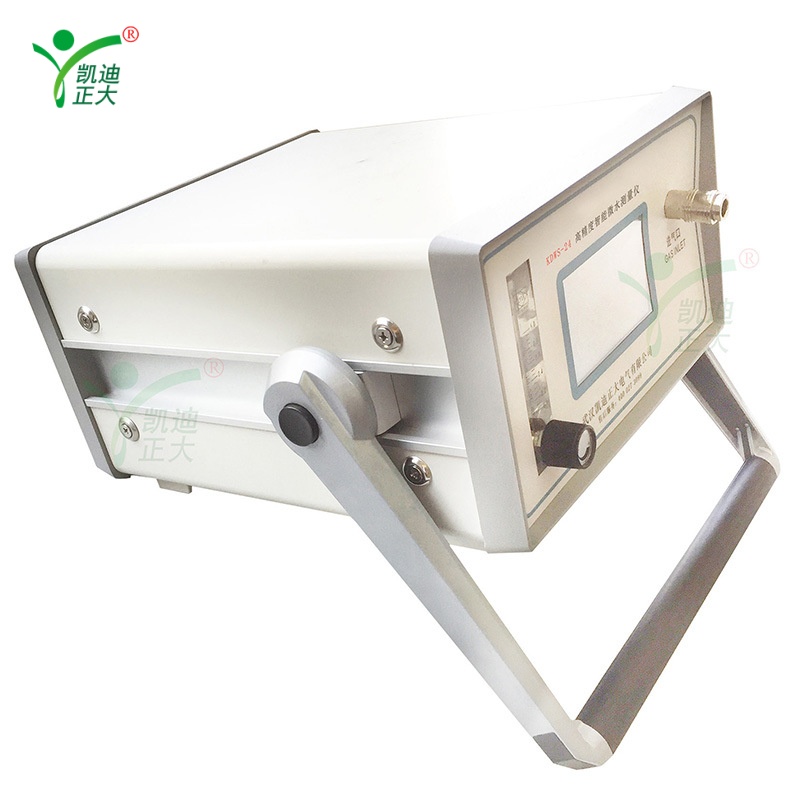

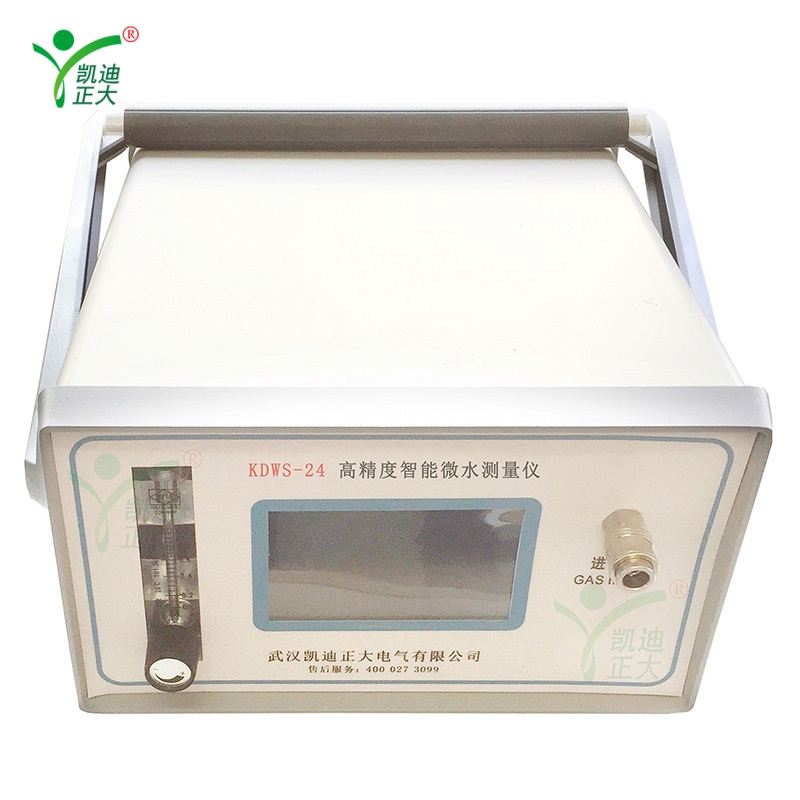

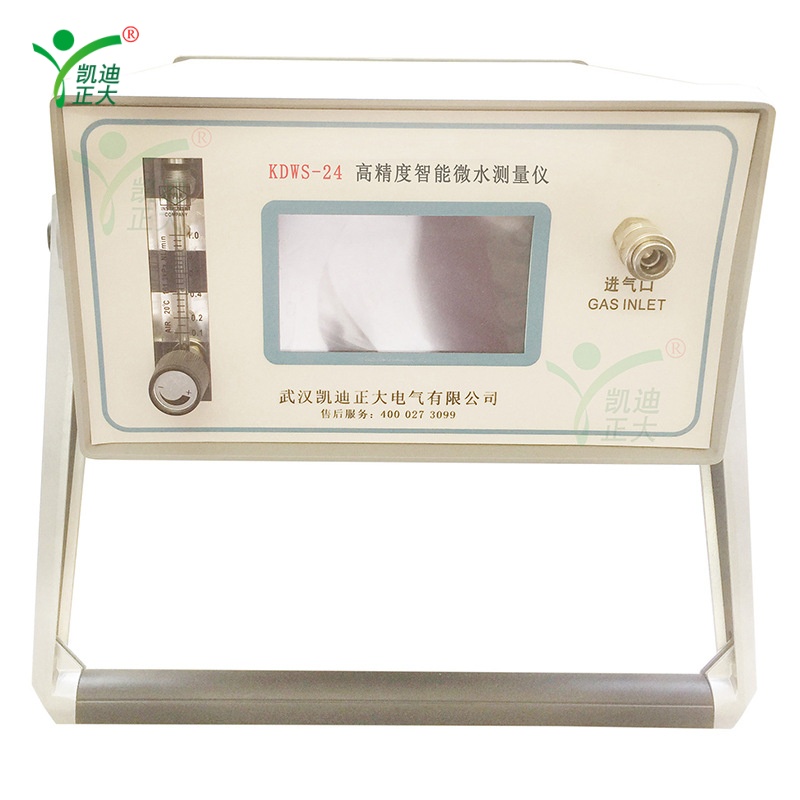

The KDWS-24 is a high-precision intelligent SF6 micro-water and dew point tester designed for comprehensive gas analysis. It features automatic zero calibration and curve tracking correction, delivering accurate dew point measurements from -80°C to +20°C with a resolution of 0.05°C. The instrument includes a built-in filter for removing particulates, stainless steel pipelines to prevent contamination, and a rechargeable lithium battery for up to 10 hours of field use. With fast measurement response, low gas consumption (≈2L per test), and data storage for 150 sets, it supports multiple temperature correction methods and intuitive operation, making it a robust solution for SF6 gas quality testing.

• Automatic conversion to 20°C standard values for accurate temperature-pressure compensation.
• Automatic zero-point calibration eliminates system errors from drift and ensures measurement accuracy.
• Curve tracking correction maintains stable readings across varying environmental conditions.
• Large-capacity data storage for up to 150 test records with non-volatile memory.
• Large LCD display shows dew point, micro-water (ppm), temperature, humidity, and battery status.
• Built-in gas filter removes metal fluoride particles, improving measurement precision.
• Stainless steel internal pipelines prevent secondary contamination of test samples.
• Fast measurement response with no pre-heat required, delivering results in seconds.
• Low gas consumption of ~2L (101.2kPa) per test, minimizing operational costs.
• German-made self-locking connectors ensure safe, reliable, and leak-free gas connections.
• Built-in rechargeable lithium battery supports up to 10 hours of continuous field operation.
• Multiple temperature correction methods ensure accurate results for diverse equipment types.

• Dew Point Measurement Range: -80°C~+20°C (supports ppmv), Resolution: 0.05°C or 0.05ppm
• Dew Point Accuracy: ≤±0.2°C (within measurement range); frost point output below 0°C
• Response Time: At +20°C: 63% in 45s, 90% in 90s; At -60°C~+20°C: 63% in 5s, 90% in 45s; At +20°C~-60°C: 63% in 10s, 90% in 240s
• Repeatability: ±0.2°C
• Gas Flow Rate: 0.4~1L/min (SF6: 0.5~0.9L/min; H₂: 0.1~0.4L/min)
• Pressure Measurement Range: 0~1.0MPa
• Operating Environment: Temp -40°C~+80°C, Humidity -35%~+60% RH, Pressure 0~20bar
• Power Supply: AC110~220V/50Hz; Built-in rechargeable lithium battery (Charging time >20h, Continuous use >10h)
• Display: LCD showing dew point, micro-water (ppm), temperature, humidity, time, date, and battery level
• Data Storage: Stores up to 150 test records
• Dimensions: 250mm × 100mm × 300mm (L×W×H)
• Net Weight: 3kg, Gross Weight: 8kg (with packaging)
• Gas Compatibility: SF6, air, nitrogen, inert gases, and non-corrosive gases
• Filtering: Built-in filter for metal fluoride particles (≤μm)
