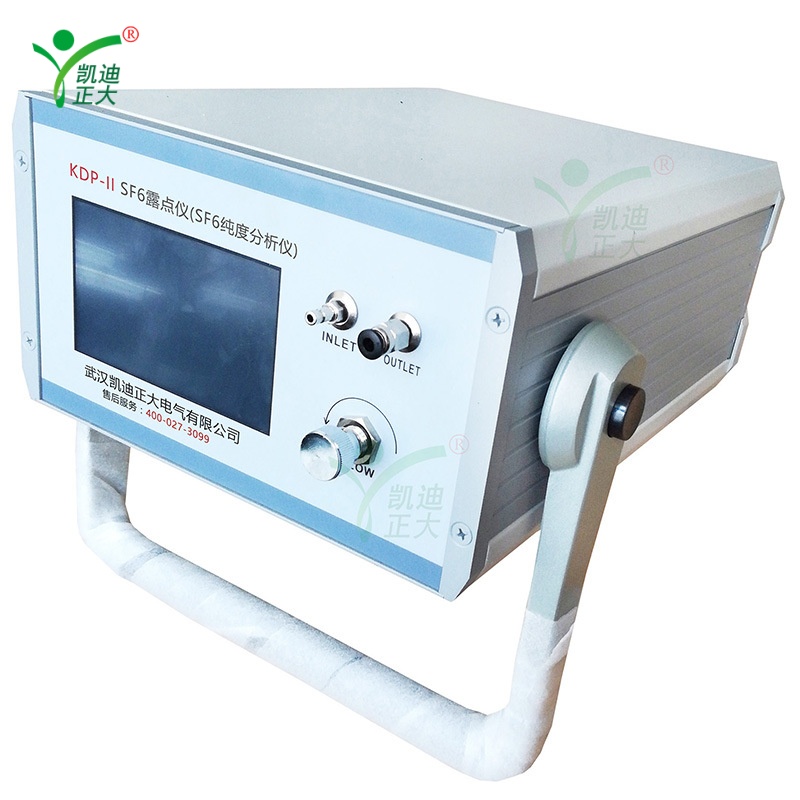

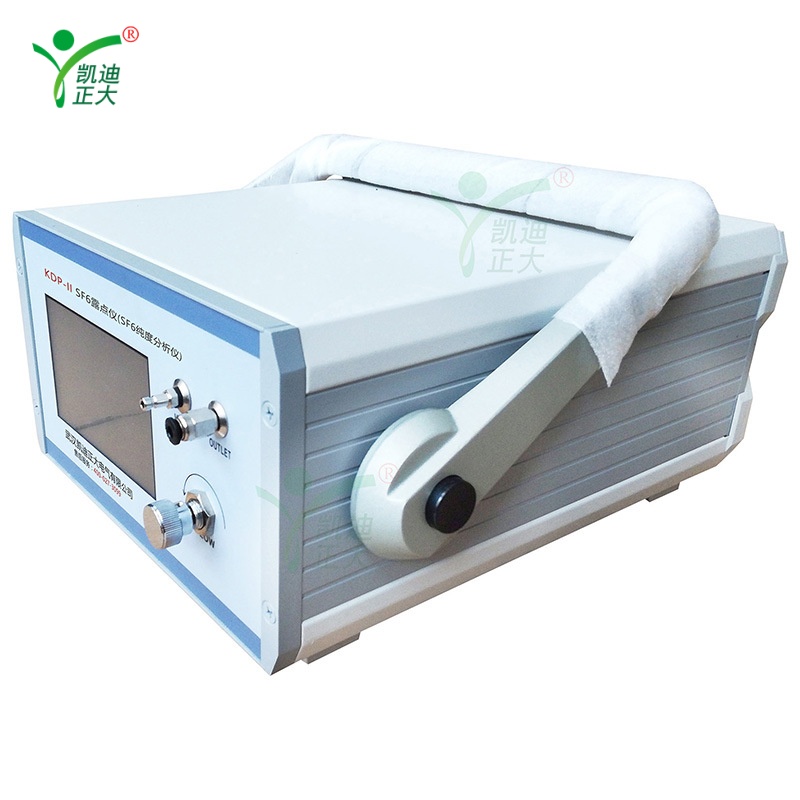

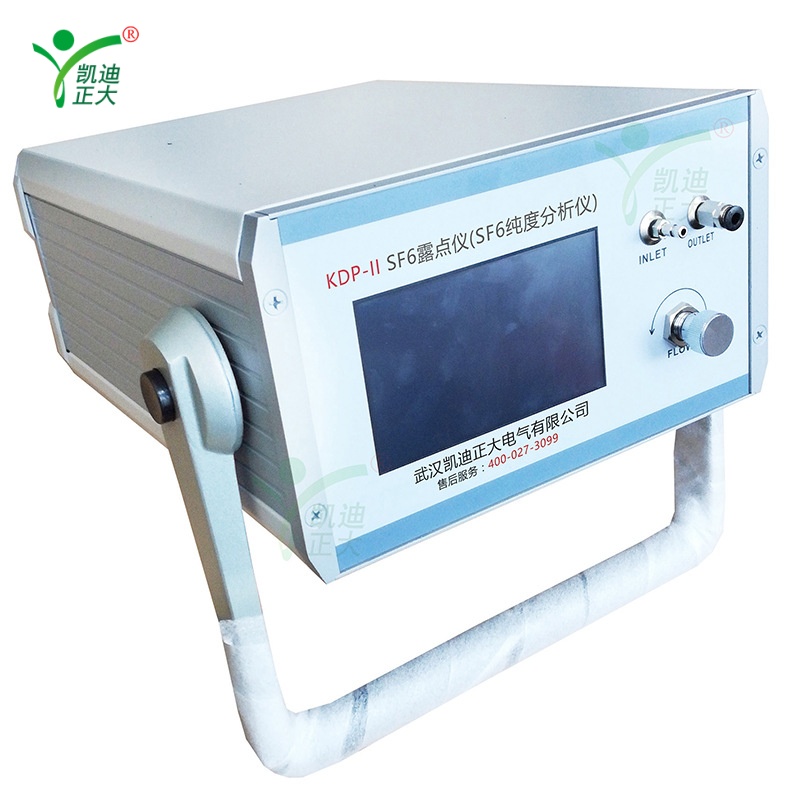

KDP-II SF6 Dew Point Analyzer (SF6 Purity Analyzer)
KDP-II SF6 Dew Point Analyzer (SF6 Purity Analyzer)

KDP-II SF6 Dew Point Analyzer (SF6 Purity Analyzer)

Applications:

Suitable for different measurement scenarios such as bottle gas, GIS, circuit breakers, equipment calibration, and small chamber electrical equipment.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

When the trace moisture exceeds the standard severely, it may cause moisture or condensation in the insulation components of the switch, greatly reducing its insulation performance. Due to the decomposition of SF6 by electric arc, toxic gases such as HF, SO2, SOF2 are produced, which can cause corrosion to metal and insulation components, and the presence of moisture can exacerbate the corrosion. Therefore, trace moisture has been widely valued as a test item for SF6 switchgear before leaving the factory and being put into operation. Monitoring the gas density and micro water content of SF6 high-voltage electrical equipment has always been an important component of equipment monitoring in related industries.

Multiple measurement modes: suitable for different measurement scenarios such as bottle gas, GIS, circuit breakers, equipment calibration, and small chamber electrical equipment. Multiple temperature correction modes: adapted to the requirements of various regions, with more accurate measurement results.

Features:

Good repeatability, fast response speed, easy operation, and convenient portability.

Multiple temperature correction modes: Combining multiple recommended temperature correction methods in power standards, different temperature correction methods can be selected according to different equipment types, resulting in more accurate measurement results.

Gas filtration function: The instrument has a built-in filter that can filter out metal fluoride particles and improve measurement accuracy.

Internal stainless steel piping: effectively prevents secondary contamination of instrument piping.

Range single point method, multi-point method humidity calibration, and zero point automatic calibration technology during the measurement process.

Battery level display.

Quick measurement: No need for preheating after startup, quickly reach dew point saturation state.

Fast gas saving: The gas consumption during measurement is only about 2L (101.2kPa).

Self locking connector: using original imported self-locking connectors, safe and reliable, without air leakage.

Data storage: can store 50 sets of test data.

Clear display: The LCD screen directly displays micro water (ppm), dew point, ambient temperature, ambient humidity, time and date, battery level, and other content.

Built in power supply: Equipped with a rechargeable lithium battery, it can work continuously for 10 hours on a single charge.

Parameter:

Dew point measurement range: -60 ℃ to 20 ℃

Dew point measurement accuracy: -50 ℃~ 20 ℃± 2 ℃

-50 ℃~ -60 ℃± 3 ℃

Resolution: 1ppm

Response time (+20 ℃): 63% takes 45 seconds, 90% takes 90 seconds

Working power supply: single-phase AC 220V ± 10%) 50Hz ± 5 Hz

Built in rechargeable battery, can be used for 10 hours after being fully charged

Size: 250 × 100&t
