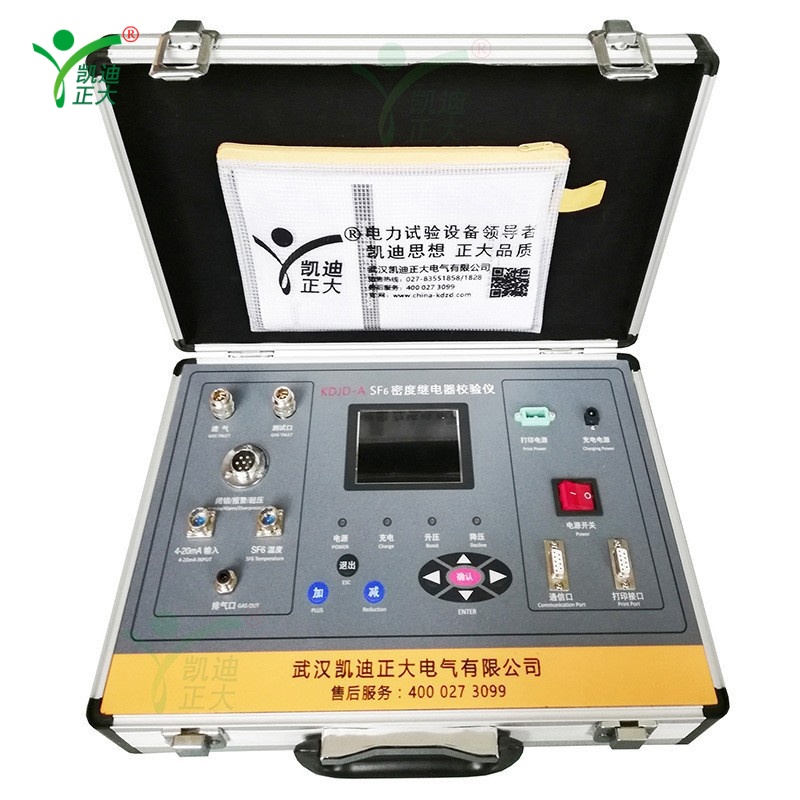

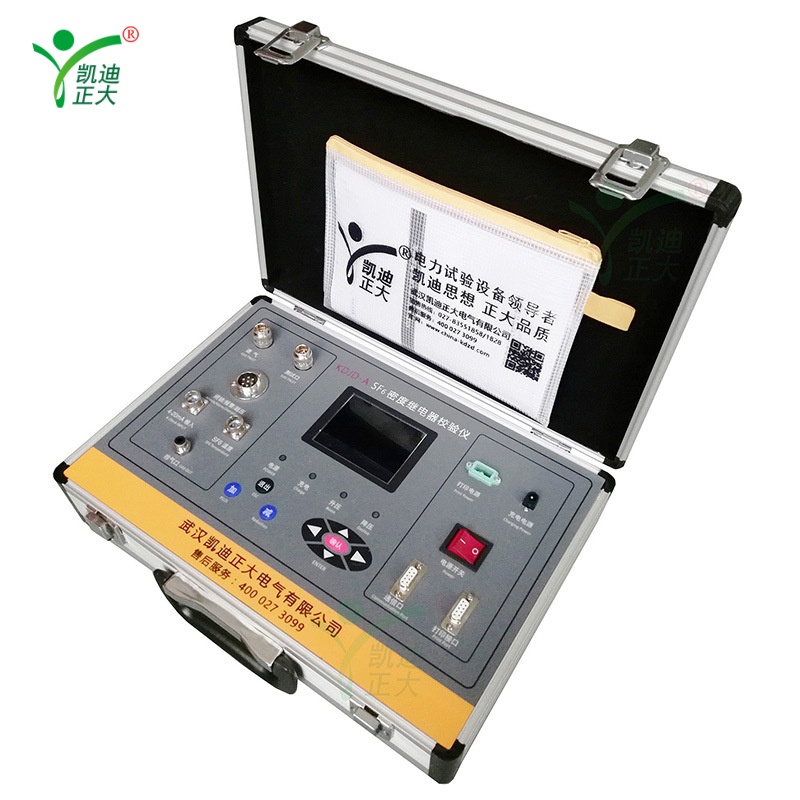

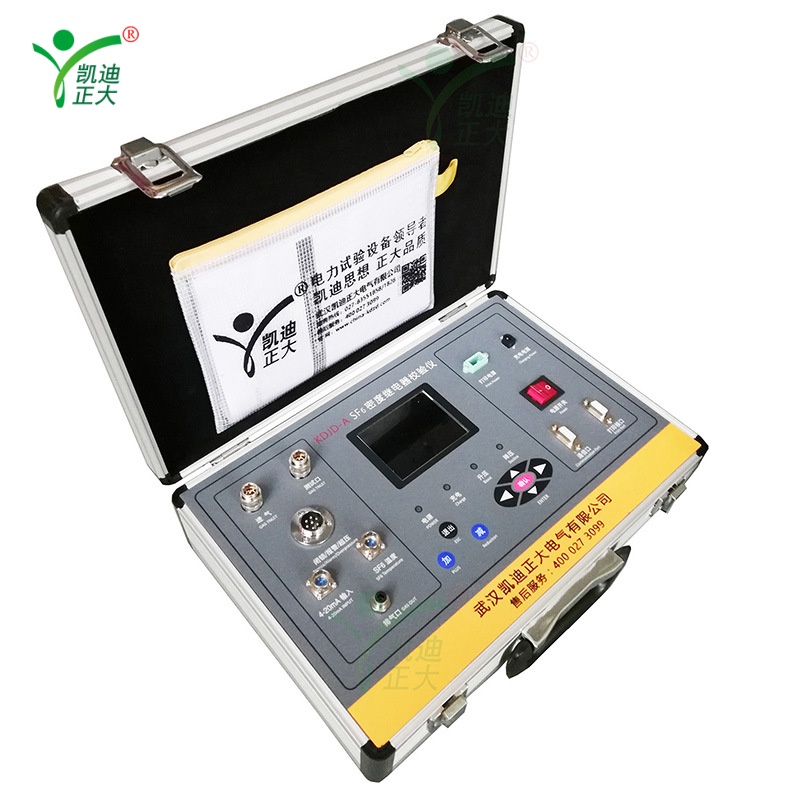

KDJD-ASF6 density relay tester is an intelligent and automatic SF6 density relay calibration instrument. This instrument adopts single cycle instruction microcomputer technology, with a running speed 10 times faster than ordinary microcontrollers. It can perform on-site verification of SF6 density relays with pointer type contact output and intelligent current output, and use interrupt mode to capture the real-time action of the density relay. Therefore, the instrument measures more accurately and timely. This instrument is a portable calibration device that converts the pressure of SF6 gas at various ambient temperatures into standard values. It can also automatically calibrate SF6 density and pressure gauges.

The SF6 gas pressure at a certain temperature in a closed container can represent the density of SF6 gas. Traditionally, SF6 gas pressure at 20 ℃ is used as the standard value. During on-site verification, the measured pressure values at different ambient temperatures must be converted to their corresponding pressure values at 20 ℃ to determine the performance of SF6 density relays.

The KDJD-A intelligent SF6 density relay tester automatically completes the calibration process and is easy to use for accurate measurement.

1. The relay calibrator adopts an analog-to-digital hybrid single cycle high-speed microcontroller as its core, which has abundant resources, strong functions, and strong data processing capabilities. Because it integrates A/D, D/A, reference voltage, and analog amplification inside the microcontroller, the peripheral circuit is simple, stable, and accurate.

2. The instrument can automatically calibrate pointer and electronic density relays.

3. The initial state of the 1-3 sets of contacts of the density relay is normally open or normally closed, and the response and recovery values of the 1-3 sets of contacts can be measured simultaneously. Therefore, this instrument can adapt to the automatic calibration of most new and old forms of density relays.

4. The instrument adopts a 320 * 240 large screen color LCD display, which is simple and convenient to use.

During measurement, the instrument simultaneously displays the current pressure, the corresponding pressure at 20:00, and the ambient temperature. Solved the problem of on-site verification of SF6 density relays.

6. The testing process is automated, avoiding errors caused by human factors.

7. The instrument can store 100 sets of measurement data without loss, ensuring traceability for each measurement.

8. The instrument can upload test data to a PC through the RS-232 interface and automatically generate a dedicated test data table.

9. The instrument can calibrate normal temperature pressure gauges and density gauges at various ambient temperatures.

10. The instrument pipeline adopts imported quick connectors, which are easy to connect and have a low leakage rate.

11. The instrument has a clock function inside, which can be adjusted at any time.

12. The instrument has a self calibration function. After prolonged use, the instrument can be calibrated and corrected to ensure its calibration accuracy.

13. The instrument adopts high-precision pressure sensors and world-class magnetic fluid technology products.

14. The instrument is equipped with multiple switch adapters, and most switches can be verified without disassembly

15. Equipped with a high-capacity built-in battery, the screen displays the battery level, expanding the instrument's usage space and facilitating on-site verification.

16. Suitable for transition joints.

1. Measurement accuracy: 0.2 level

2. Display mode: Color LCD display (3.5-inch)

3. Measurement range: 0-1.000Mpa

SF6 density relay: single alarm, single interlock, single alarm single interlock, single alarm double interlock

Room temperature gas pressure gauge: Verification of pressure point from 0 to 1MPa

20 degree gas pressure gauge: pressure point calibration from 0 to 1MPa

4. Pressure detection range: 0-10MPa; Resolution: 0.0001Mpa

5. Instrument operating temperature: -20 to+60 ℃
