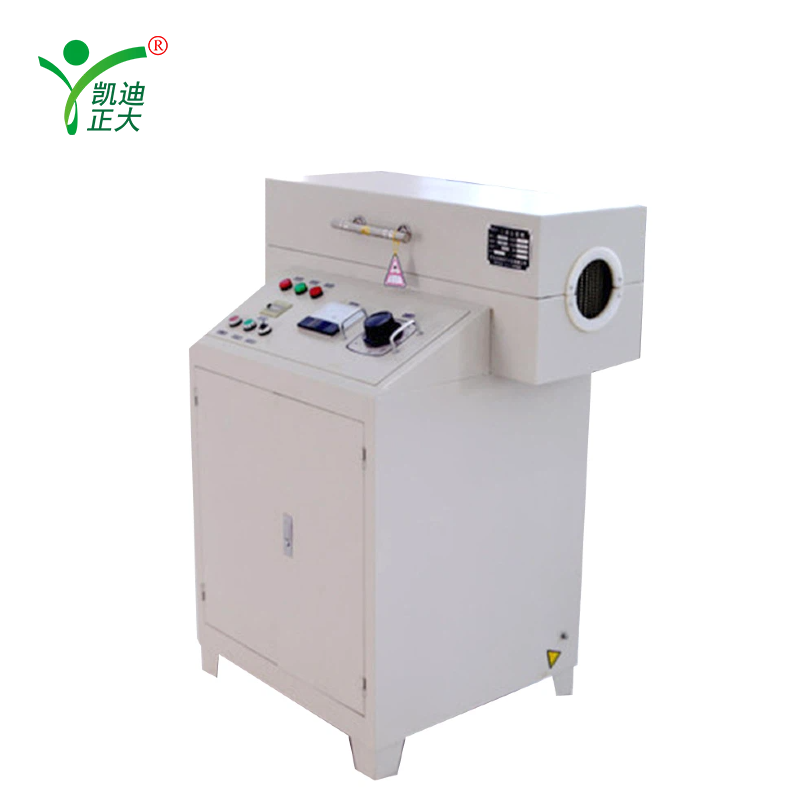

KDYD‑HH Power Frequency Spark Tester
KDYD‑HH Power Frequency Spark Tester

KDYD‑HH Power Frequency Spark Tester

Applications:

KDYD‑HH is a professional insulation defect testing device for wires and cables, widely used in production lines and laboratories. It performs water‑soaking withstand voltage tests, supports CCC mandatory certification, and inspects insulation strength for electrical equipment and materials.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

This spark tester complies with ZBK13002‑88 and JB/T428.10‑93 standards. Adopting solid‑state voltage regulation and microprocessor control, it provides stable high voltage, high sensitivity, automatic breakdown counting and alarm for safe and reliable insulation detection.

Features:

  1. Compact, small size, lightweight, non‑oil leakage and maintenance‑free.
  2. Simple and intuitive wiring for easy operation.
  3. Maximum output voltage: 15kV/25kV/30kV (customizable).
  4. Discharge rod and KD305 digital megger are available as options.
  5. Equipped with low‑power transformer in the control cabinet.
  6. High insulation reliability and attractive appearance.
  7. Adopts solid‑state AC regulation and microprocessor control with stable high voltage output.
  8. Suitable for online detection with chain‑type high‑voltage electrode and clear breakdown indication.

Parameter:

  1. Power supply: AC 220V / 50Hz
  2. Output voltage: 0~15/25/30kV (customizable)
  3. Max. cable diameter: 90mm (customizable)
  4. Max. line speed: 240m/min
  5. Max. sensitivity: 600μA (at 3kV, spark gap 0.25mm)
  6. Voltage accuracy: < 3%
  7. Resolution: 0.05s
  8. Customizable technical parameters available
