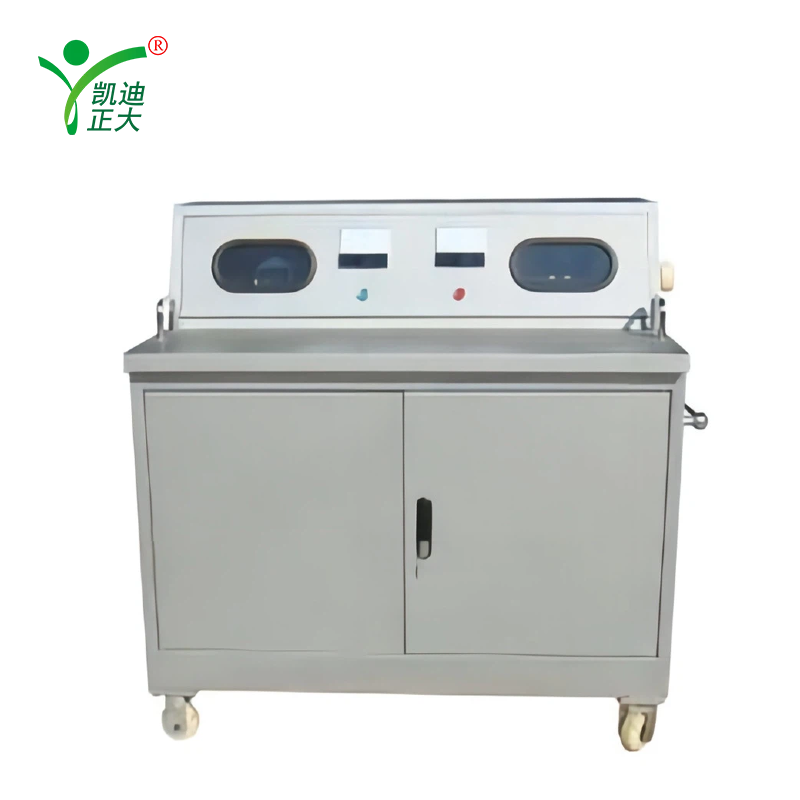

KD-218 Mining Cable Fault Detector
KD-218 Mining Cable Fault Detector

KD-218 Mining Cable Fault Detector

Applications:

KD-218 is designed for fault detection and repair testing of mining cables. Based on non-destructive partial discharge detection, it accurately locates faults without damaging cable structure, making it an ideal tool for coal mine cable maintenance and cost reduction.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

This detector consists of control and high-voltage rectifier units. It provides 0–30kV DC output, automatic voltage regulation, timing withstand voltage test, leakage current measurement and complete safety protections, ensuring safe and reliable mining cable fault testing.

Features:

  1. Separated low-voltage control and high-voltage modules with sufficient safety clearance.
  2. Key-operated high-voltage startup for equipment and personnel safety.
  3. Smooth and stepless voltage adjustment from zero with overvoltage and undervoltage protection.
  4. Automatic or manual control of DC withstand voltage test time with high precision.
  5. Real-time leakage current measurement during voltage withstand test.
  6. Complete overcurrent, short-circuit, startup alarm and protection functions.
  7. Equipped with dedicated high-voltage discharge rod and clear grounding mark.
  8. Clear analog meters and indicator lights for voltage, current and working status.

Parameter:

  1. Power supply: single-phase AC 220V, 50Hz
  2. Testing DC output voltage: 0–30kV (button controlled)
  3. Fault location accuracy: within ±50mm
  4. Withstand test DC voltage: 0–30kV (button controlled)
  5. Automatic withstand test time: 0–30min (adjustable)
  6. Operating temperature: -5℃～+40℃
  7. Relative humidity: ≤85%RH
  8. Altitude: ≤2500m
