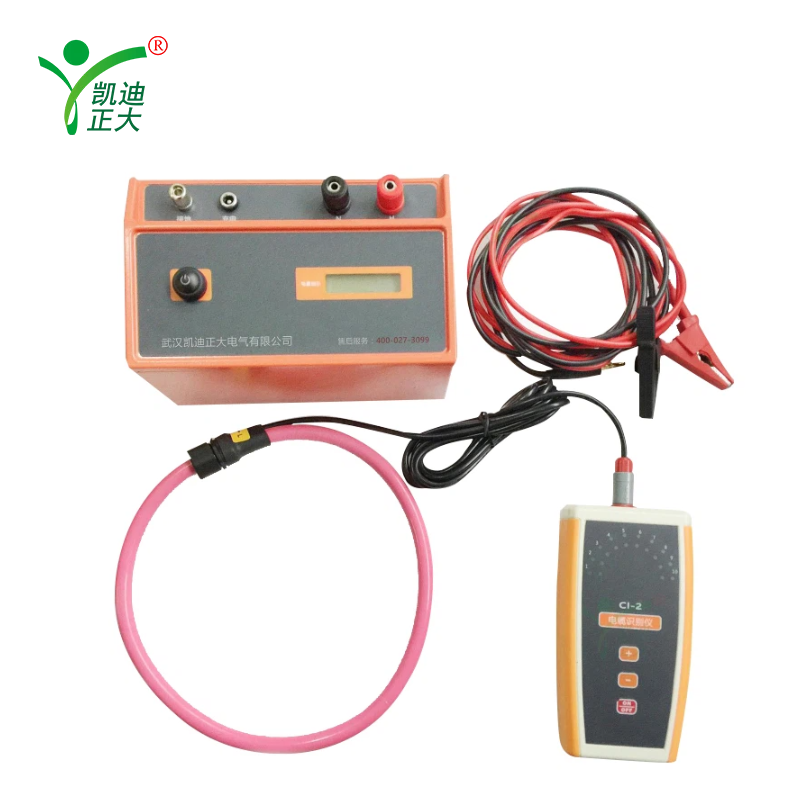

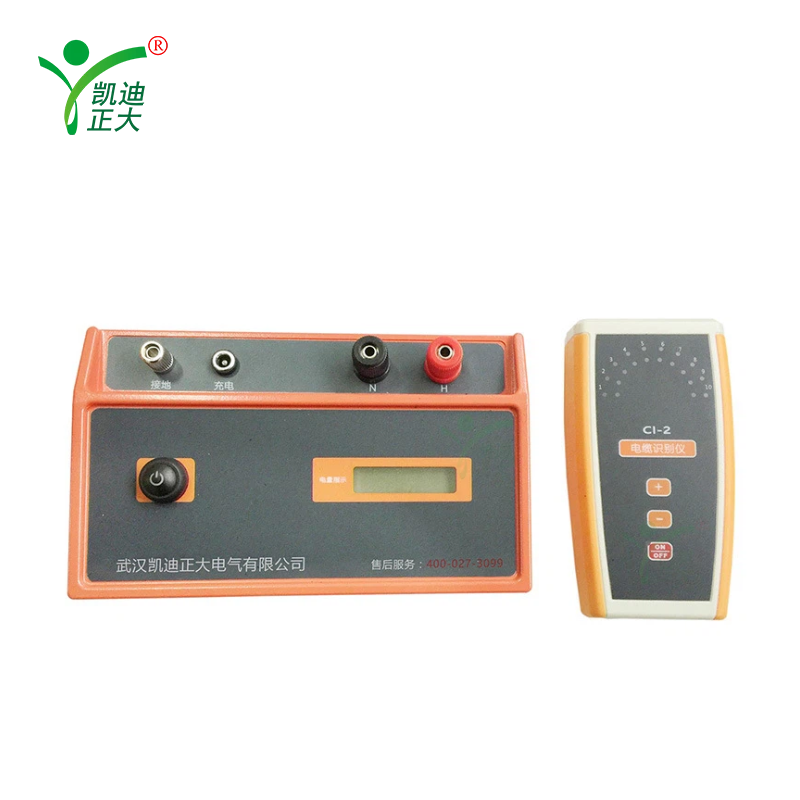

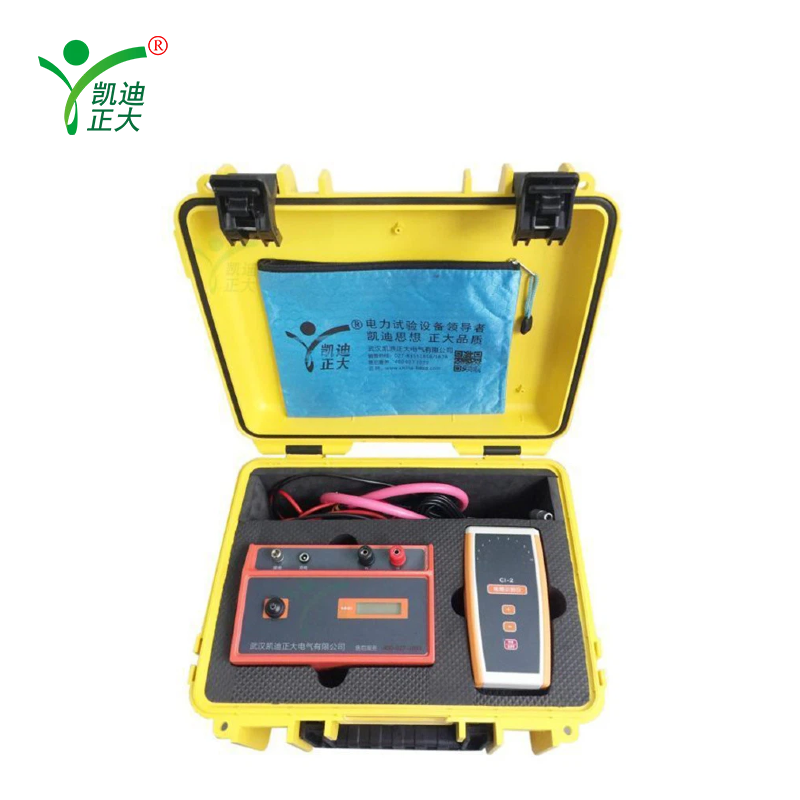

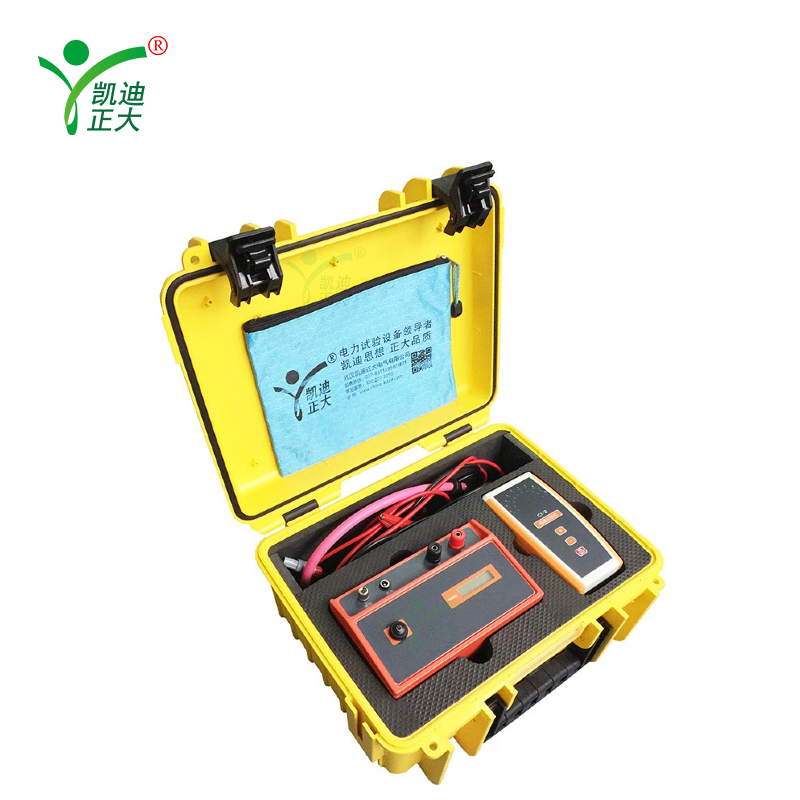

The cable identification instrument is composed of signal generator KD-214A and receiving clamp signal detector KD-214A and indicator table. The signal generator mainly generates special pulse modulation signal, which is added to the cable under test when it stops running through the output line. The receiving clamp is used to find the cable under test on the spot. The meter pointer on the signal detector swings synchronously with the applied signal frequency, while the signal detected on the other cable line is much smaller and in the opposite direction. It is easy to determine the cable under test by indicating the amplitude and direction of the meter.

The handheld receiver automatically recognizes and displays the results, ensuring that the results of cable identification are 100% accurate. Lightweight, easy to carry.
Suitable for field identification of power outage cables. As long as your target cable has been outage, you can use this instrument to accurately identify the target cable from multiple cables.
The transmitter and handheld receiver of the instrument must be used simultaneously for identification.
The transmitter uses the pulse current principle to inject A pulse current signal with a maximum value of 30 A into the cable core, which generates an electromagnetic field around the target cable.
The handheld receiver accurately measures the electromagnetic field signal through the induction clamp. Because the current is directional, the magnetic field signal is also directional.

Power supply: Built-in 12.6V/2.2AH lithium battery
Indicator: Battery level indicator
Pulse voltage: 0 ~ 500V
Pulse current: up to 30A(depends on the size of the loop resistance)
Pulse frequency: 10 times/min
Pulse width: 10 ms
Continuous working time: >10 hours
Display: positive LCD display, can be clearly displayed in the sun
Operating temperature: -25 ~ 60℃
