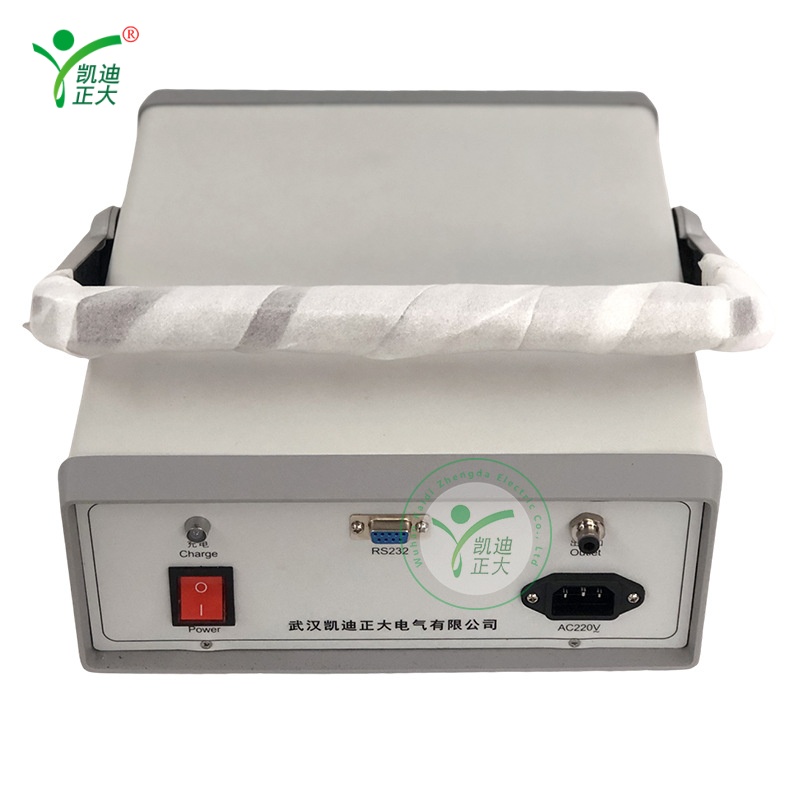

The KDWS-14 is a portable SF6 gas purity analyzer engineered for precise, on-site measurement of SF6 gas purity. It features a compact, lightweight design with a carrying handle for easy portability and field deployment. The instrument provides fast, accurate measurements of SF6 gas purity, with a resolution of 1ppm, making it ideal for detecting impurities in SF6 gas used in high-voltage electrical equipment such as GIS and circuit breakers. It supports quick measurement response and low gas consumption, ensuring efficient and reliable purity analysis for both field and laboratory use.

• Portable design with a carrying handle for easy field deployment.
• Fast measurement response provides results immediately after power-up.
• Low gas consumption of approximately 2L per test, reducing operational costs.
• German-made self-locking connectors ensure safe, reliable, and leak-free gas connections.
• Large-capacity data storage for up to 50 test records with historical data access.
• Clear LCD display shows purity, temperature, humidity, time, date, and battery status.
• RS232 interface enables direct connection to serial printers for on-site data printing.
• Built-in rechargeable lithium battery supports up to 10 hours of continuous operation.

• Purity Measurement Range: Customizable (SF6 gas), Resolution: 1ppm
• Measurement Accuracy: ≤±2% F.S.
• Power Supply: AC220V/50Hz; Built-in rechargeable lithium battery, 10h continuous use after full charge
• Dimensions: 350mm × 380mm × 120mm (L×W×H)
• Net Weight: 3kg, Gross Weight: 6kg (with packaging)
• Data Storage: Stores up to 50 test records
• Interface: RS232 for serial printer connection
• Gas Consumption: ~2L (101.2kPa) per test
• Display: LCD showing purity, temperature, humidity, time, date, and battery status
