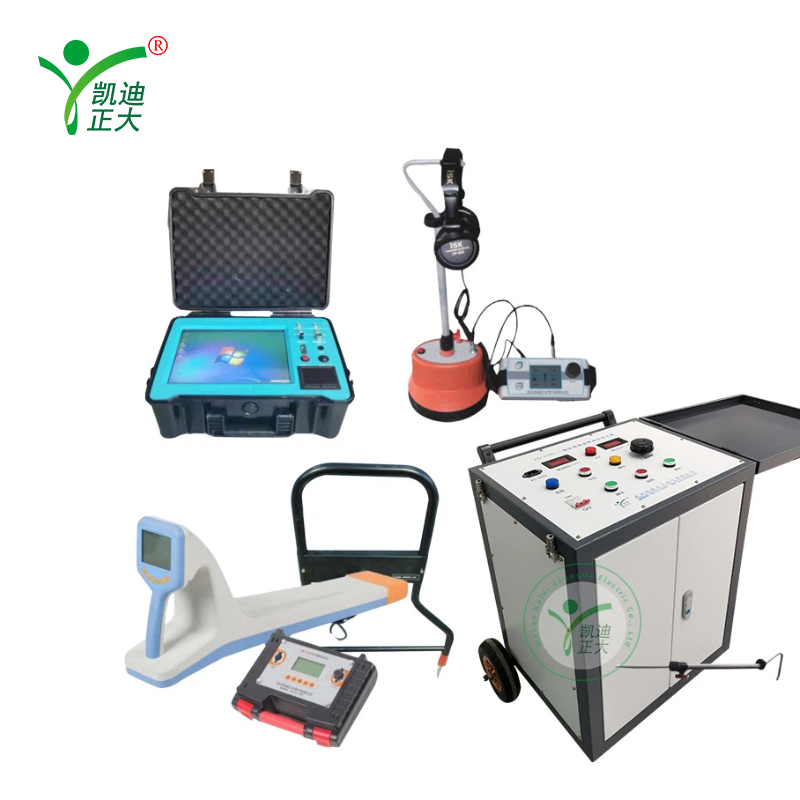

KD-216S Cable Fault Comprehensive Tester
KD-216S Cable Fault Comprehensive Tester

KD-216S Cable Fault Comprehensive Tester

Applications:

It tests all faults of Cu/Al core power cables (380V to 220kV), coaxial and municipal communication cables, including open/short circuit, high/low resistance fault and route identification. It also serves as high-voltage pulse power for fault locators in power, communication and cable maintenance fields.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

This tester supports multiple cable fault test methods with easy operation. It features switchable pulse capacitance, three high-voltage output modes and fault conversion function, with high safety protection and accurate fault testing performance.

Features:

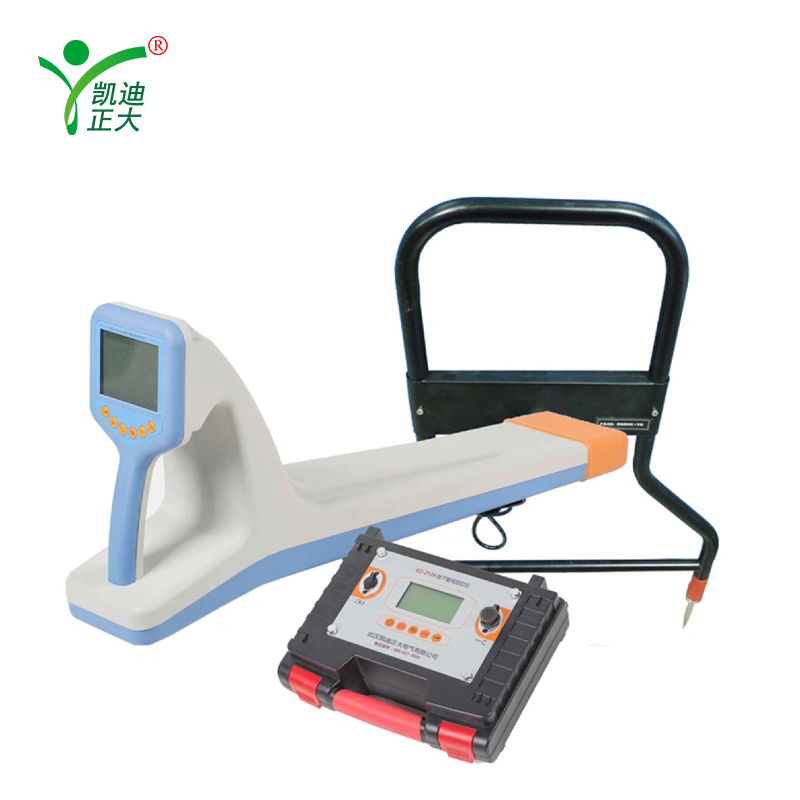

  1. Tests all faults of 380V-220kV Cu/Al power cables, coaxial and municipal communication cables, with cable route identification function.
  2. Supports low-voltage pulse, impulse flashover, triple/multiple pulse and velocity measurement methods with high-voltage equipment.
  3. Chinese operating software and interface with submenus and text prompts for human-computer interaction.
  4. Serves as high-voltage pulse power for acoustic-magnetic synchronous and step voltage fault locators.
  5. Modular pulse capacitance with switchable capacity for diverse testing needs.
  6. Three HV output modes: DC, single discharge and periodic discharge, with built-in relay-controlled discharge device.
  7. Periodic discharge interval adjustable via time relay on the operation panel for flexible testing.
  8. Fault conversion function converts high-resistance faults to low-resistance ones and raises metallic ground fault resistance for easy testing.
  9. Single coaxial HV test line simplifies wiring, reduces detection difficulty and improves efficiency & success rate.
  10. Ground resistance detection and protection function; HV output disabled if grounding is poor, emergency stop for abnormal conditions.
  11. Synchronous global and local waveform display for comprehensive analysis and detailed adjustment.
  12. High-resistance faults show simple short-circuit waveform features of low-voltage pulse method for easy interpretation.
  13. Collects 8 real waveforms simultaneously in multiple pulse mode to reduce error and improve precision.
  14. Built-in power supply for long-time operation without external power in field environments.
  15. Compact size, light weight and easy operation with high fault detection success rate and testing precision.
  16. Stable performance in various environments with anti-crash design and safe HV protection for signal collection.
  17. Built-in storage/retrieval function for convenient waveform and data saving and reanalysis.
  18. Multiple pulse widths for test signals with no detection blind zone.

Parameter:

  1. Sampling method: Low-voltage pulse, impulse flashover, triple pulse, multiple pulse, velocity measurement
  2. Sampling rate: 200 MHz, 100 MHz, 80 MHz, 40 MHz, 20 MHz, 10 MHz
  3. Pulse width: 0.05μs, 0.1μs, 0.2μs, 0.5μs, 1μs, 2μs, 8μs
  4. Wave velocity setting: Pre-set for XLPE, PVC, oil-immersed paper, non-dripping oil; customizable for unknown types
  5. Max impulse high voltage: ≤35kV
  6. Applicable cable voltage: 380V, 600V, 10kV, 35kV, 110kV, 220kV
  7. Testing distance: ＜60km
  8. Detection blind zone: ≤0.5m
  9. Resolution: 0.5m
  10. Testing accuracy: 0.5m
  11. Selectable impulse high voltage: 0～8kV, 0～16kV, 0～32kV
  12. HV voltage division accuracy: Class 1.5
  13. Built-in capacitance: 8μF/32kV, 8μF/16kV, 2μF/32kV;0～8000V: 32µF;0～16000V: 8µF;0～32000V: 2µF
  14. Adjustable discharge cycle: 0～99s
  15. Adjustable discharge time: 1～99s (recommended 0.3s)
  16. HV output modes: DC, single pulse, periodic pulse
  17. Max energy storage: ≥1024J
  18. Impulse time: Auto ~4s; manual for adjustable time
  19. Impulse power: 2kVA
  20. Working power supply: AC 220V±10%, 50Hz±2Hz
  21. Operating temperature: -10℃～40℃
  22. Operating humidity: ≤80%
  23. Altitude: ≤1000m
  24. Dimensions: 534mm(L)×444mm(W)×805mm(H)
  25. Weight: ≤75KG
