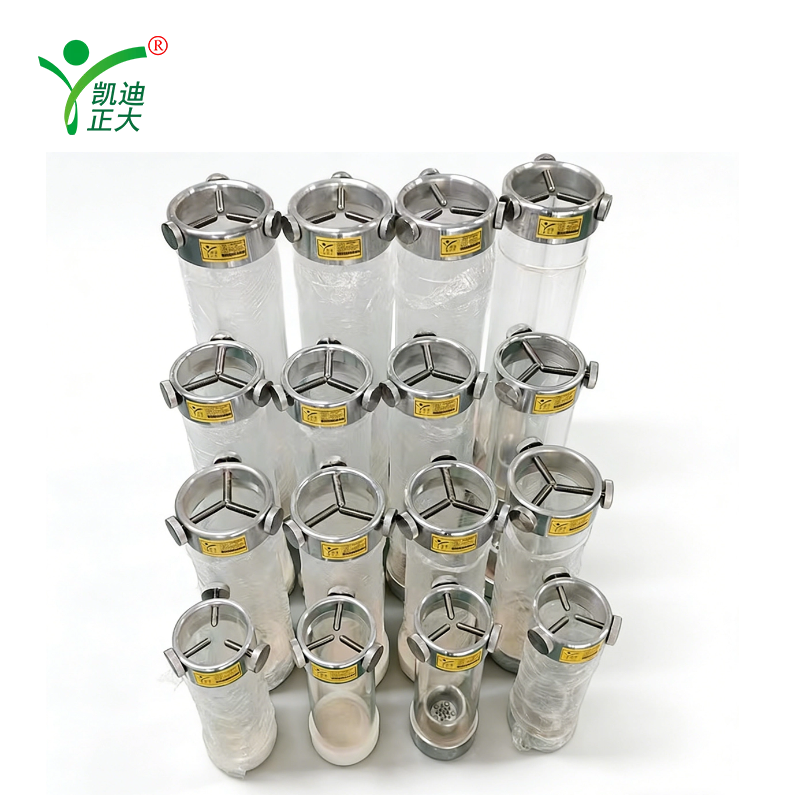

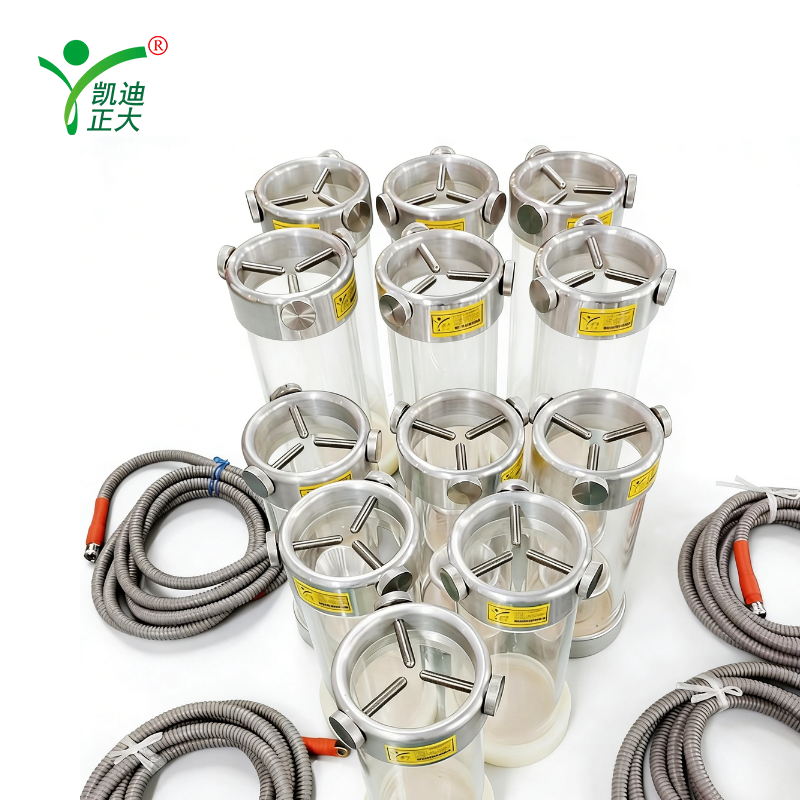

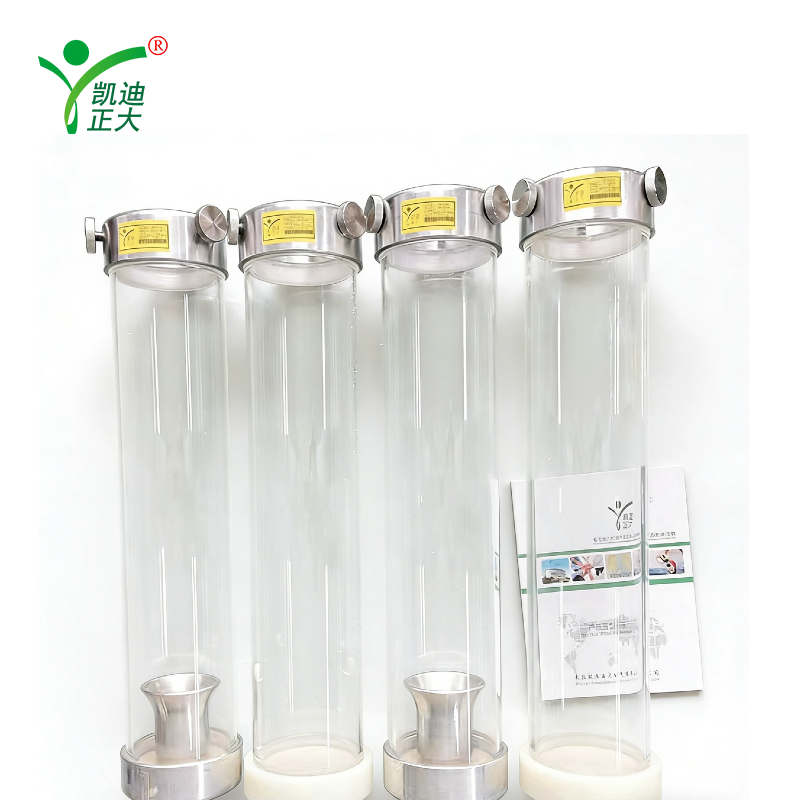

KDCT-10kV～35kV XLPE Cable Oil Cup Terminal
KDCT-10kV～35kV XLPE Cable Oil Cup Terminal

KDCT-10kV～35kV XLPE Cable Oil Cup Terminal

Applications:

These oil cup terminals are used for on-site partial discharge and power frequency withstand voltage tests of 10–35kV XLPE cables. They simplify testing in cable factories with limited PD detection equipment, shorten preparation time and improve test efficiency.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

Suspended-type test terminals developed from field PD experience. Consist of acrylic tube, flange and shield. Low partial discharge, safe and reliable. Greatly reduces test cost and time compared with traditional floor‑standing oil cups.

Features:

  1. Specially designed for 10–35kV XLPE cable partial discharge and withstand voltage test.
  2. Ultra-low partial discharge level with excellent test performance and high stability.
  3. Suspended structure, compact and lightweight, saving test space and cost.
  4. Simple operation, effectively cutting test preparation time by half.
  5. Made of acrylic tube, cable fixing flange and high-voltage shielding cover.
  6. Easy to install and use with dedicated stripping tools and connecting cables.
  7. Safe, reliable and suitable for batch factory testing and on-site commissioning.
  8. Outer dimensions can be customized according to customer requirements.

Parameter:

1.Partial Discharge Performance

KDCT-35kV: For 10kV and below XLPE cables; PD＜2pC at 25kV; Withstand voltage: 35kV

KDCT-100kV: For 35kV and below XLPE cables; PD＜2pC at 80kV; Withstand voltage: 100kV

2.Power frequency withstand voltage: 35kV–65kV

3.Structure: Suspended type

4.Cooling: Air natural cooling (KDCT-100kV)

5.Dimensions

KDCT-35kV: φ90mm × 350mm

KDCT-100kV: φ160mm × 1050mm

Reference: φ120mm × 500mm (customizable)

6.Accessory: High-voltage power connection cable
