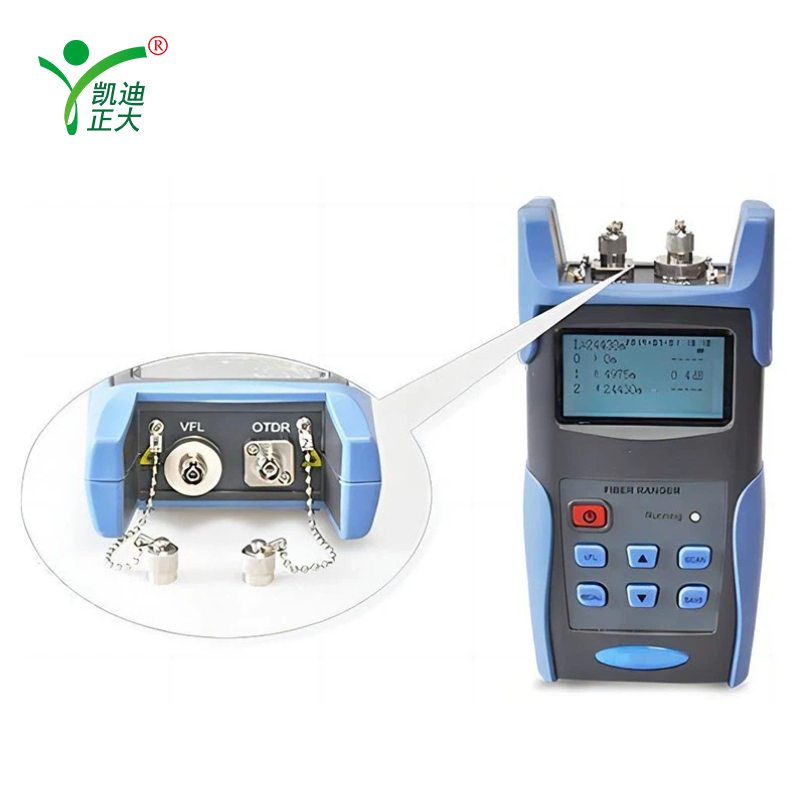

KDGX‑A Optical Fiber Fault Locator
KDGX‑A Optical Fiber Fault Locator

KDGX‑A Optical Fiber Fault Locator

Applications:

KDGX‑A is designed for construction, testing and maintenance of fiber‑optic networks. It quickly analyzes fiber link status and faults, ideal for field and outdoor maintenance, serving as a cost‑effective alternative to OTDR for on‑site fiber testing and troubleshooting.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

Developed by Wuhan Kaidi Zhengda, this compact fault locator enables one‑key fault detection, automatic event analysis and visual fault location. It supports up to 2000 test records and is suitable for outdoor maintenance with high efficiency and low power consumption.

Features:

  1. One‑key fiber link fault location and detection for fast and simple operation.
  2. Automatic analysis of reflection events and attenuation events without manual calculation.

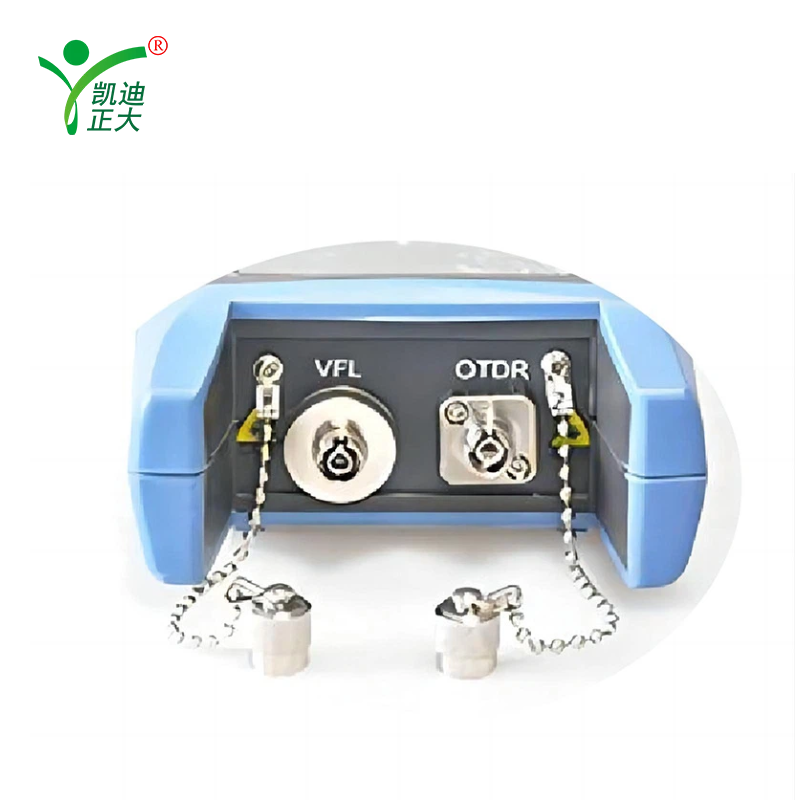

  3. Integrated visual fault location (VFL) function for direct fault observation.
  4. Automatic pulse width adjustment and customizable fiber refractive index setting.
  5. Built‑in storage supporting up to 2000 test records for review and management.

Parameter:

  1. Wavelength: 1550±20 nm
  2. Fiber type: 9/125 μm
  3. Connector type: FC/PC
  4. Detector: InGaAs APD
  5. Pulse width: Auto-adjusting
  6. Max detection range: 60 km (reflection >1dB); 40 km (non‑reflection >1dB)
  7. Distance accuracy: ±(3m + 2×10⁻⁴×distance)
  8. Reflection dead zone: 15 m
  9. Battery: 3×AA batteries
  10. Battery life: >2500 tests
  11. Auto power off: 10 minutes
  12. 650 nm VFL output: >1 mW
  13. Data storage: 2000 records
  14. Operating temperature: -5℃ ~ +40℃
  15. Storage temperature: -10℃ ~ +70℃
  16. Dimensions: 175×90×44.5 mm
  17. Weight: 278 g (host only, without battery)
