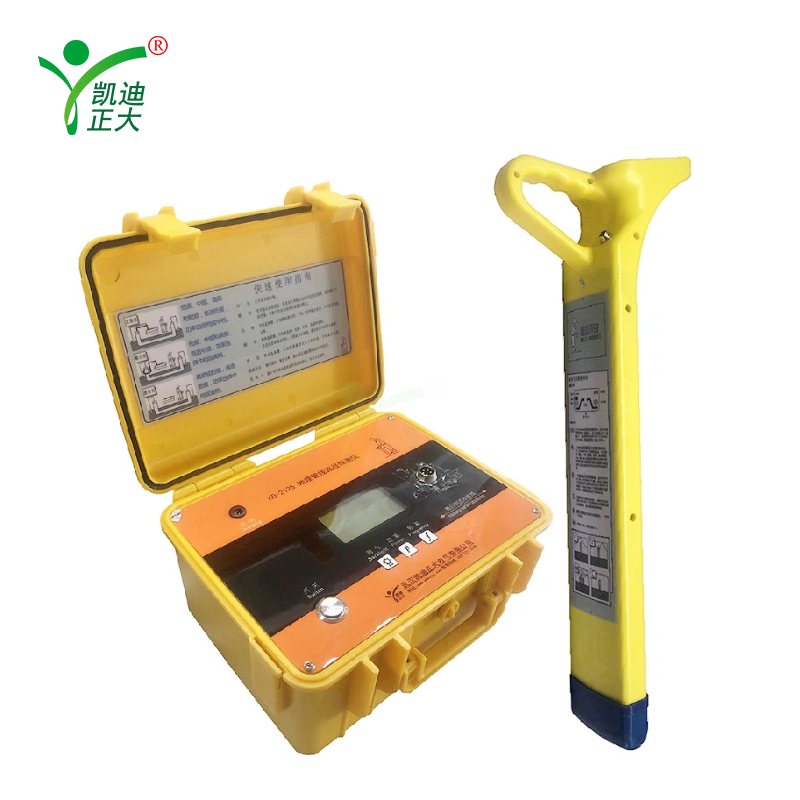

KD-2125 adopts multi-frequency detection technology with a high-power transmitter and user-friendly digital receiver. It features high automation, strong anti-interference and accurate positioning, suitable for non-professionals to achieve professional detection results for underground pipeline surveys.

1. Compass display for intuitive visualization of pipeline position.
2. Left and right arrow indicators to show the exact pipeline location.
3. Tracking prompt function to detect pipeline current direction and eliminate adjacent line interference at specific frequencies.
4. Real-time measurement of pipeline burial depth and current value.
5. Historical curve display for intuitive observation of signal variation trends.
6. Unique identification with optional clamp (clear results) and stethoscope (for special working conditions).
7. Ground fault location with optional A-frame, no zero adjustment needed and arrow indication for fault direction.
8. Digital high-precision sampling and processing with narrow receiving bandwidth and strong anti-interference ability.
9. Multiple detection frequencies supporting active and passive detection modes.
10. Transmitter with three signal output modes: direct connection, clamp coupling and radiation induction.
11. High-power adjustable transmitter output with automatic impedance matching and protection functions.
12. Built-in large-capacity lithium battery with low-voltage and idle automatic shutdown functions.
13. Robust casing with light weight and easy portability for field operation.

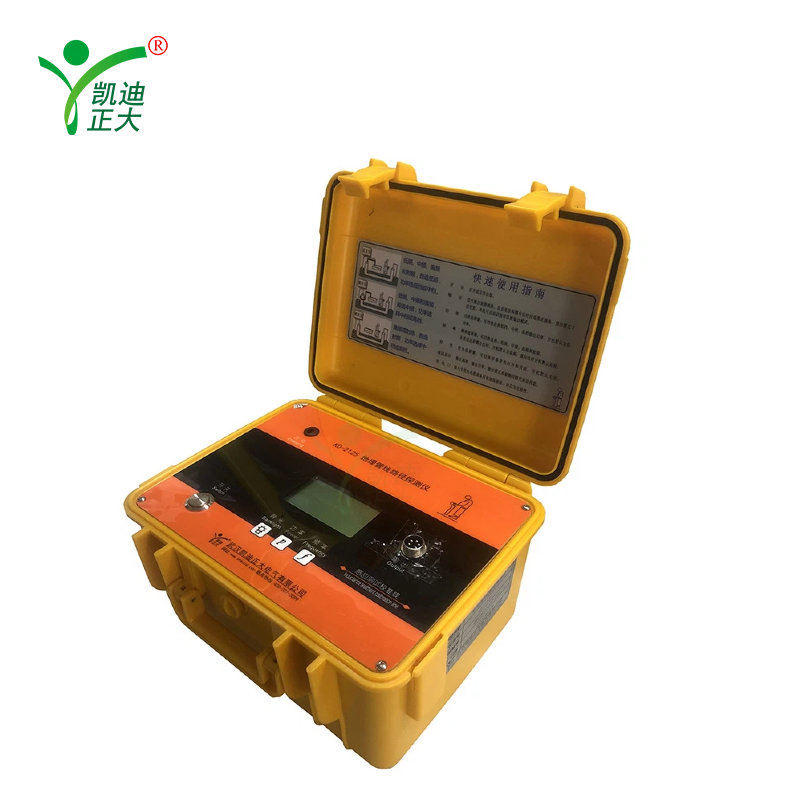

Transmitter

1. Output mode: Direct connection, radiation induction, optional clamp coupling
2. Output frequency: 640Hz (composite), 1280Hz (composite), 10kHz, 33kHz, 128kHz
3. Output power: Max 10W, 10 gears adjustable, automatic impedance matching
4. Direct output voltage: Max 150Vpp
5. Protection: Overload and short-circuit protection
6. HMI: 128×64 dot matrix LCD
7. Built-in battery: 4×18650 lithium batteries, nominal 7.4V, 6.8Ah

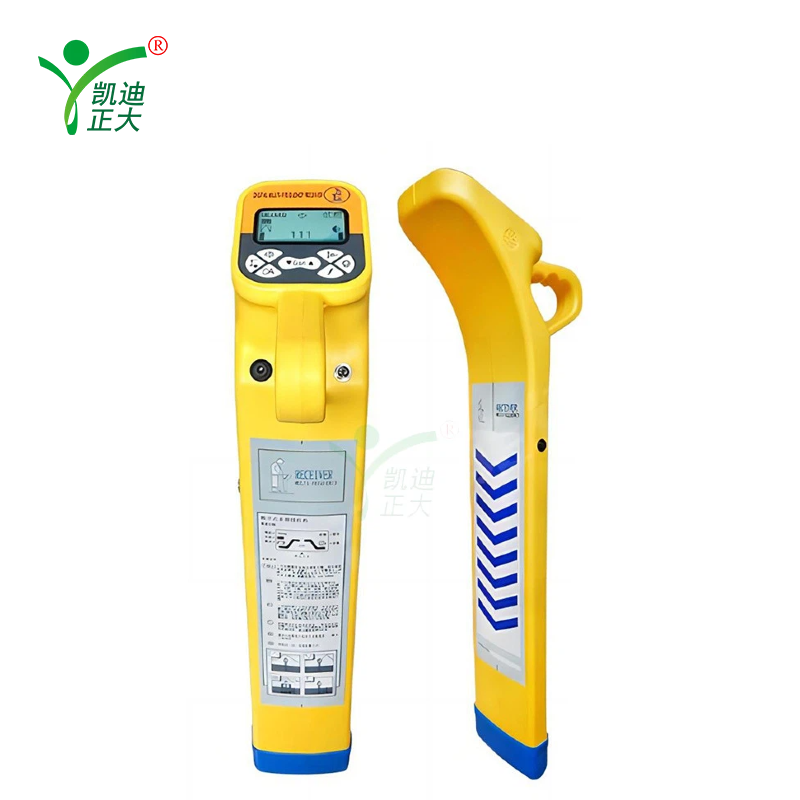

Receiver

1. Input mode: Built-in receiving coil, optional receiving clamp, stethoscope, fault detection A-frame
2. Receiving frequency:Active detection: 640Hz, 1280Hz, 10kHz, 33kHz, 128kHz; Passive power frequency: 50Hz/60Hz, 250Hz/300Hz (user-configurable);Passive RF: 10kHz, 33kHz, 128kHz (center frequency)
3. Pipeline detection mode: Wide peak, narrow peak, sound valley method
4. Cable identification mode: Intelligent identification & current measurement with optional clamp, identification with optional stethoscope
5. HMI: 320×240 dot matrix LCD
6. Built-in battery: 2×18650 lithium batteries, nominal 7.4V, 3.4Ah

Others

1. Dimensions: Transmitter 270×220×85mm; Receiver 700×270×120mm
2. Weight: Transmitter 2.2kg; Receiver 2.2kg
3. Charger: Input AC100～240V, 50/60Hz; Output DC8.4V, 2A
4. Operating conditions: Temperature -10℃～40℃; Humidity 5-90%RH; Altitude ＜4500m
