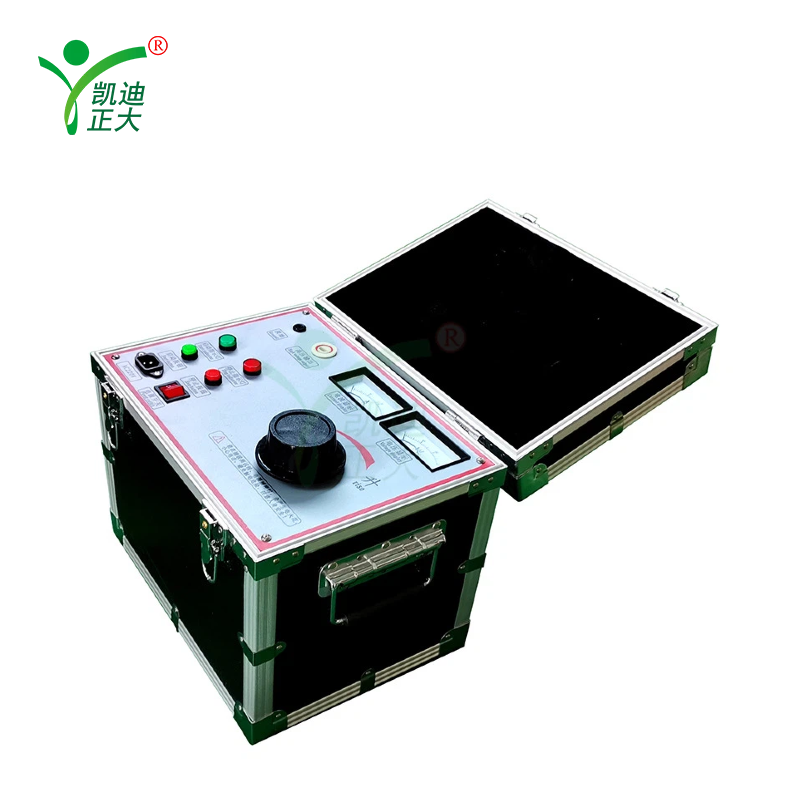

KD-210 Integrated High-Voltage Generator
KD-210 Integrated High-Voltage Generator

KD-210 Integrated High-Voltage Generator

Applications:

Compliant with national power industry standards, it serves as the impulse discharge power source for HV/MV/LV cable fault testing, and for DC withstand voltage tests of cables, capacitors, motors and insulators, ideal for on-site insulation performance tests of electrical equipment in power systems.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

An innovative upgraded high-voltage generator with epoxy vacuum-cast booster and CD core, it replaces oil-immersed transformers, features over-voltage/current protection and pointer display, and is a dual AC/DC portable test equipment for on-site cable fault location and high-voltage tests.

Features:

  1. Epoxy vacuum casting and CD iron core technology for higher insulation strength and moisture resistance.
  2. Significantly reduced weight and volume compared with oil-immersed transformers of the same type.
  3. Effectively weakens magnetic leakage and enhances the transformer's ability to withstand test short-circuit current impact.

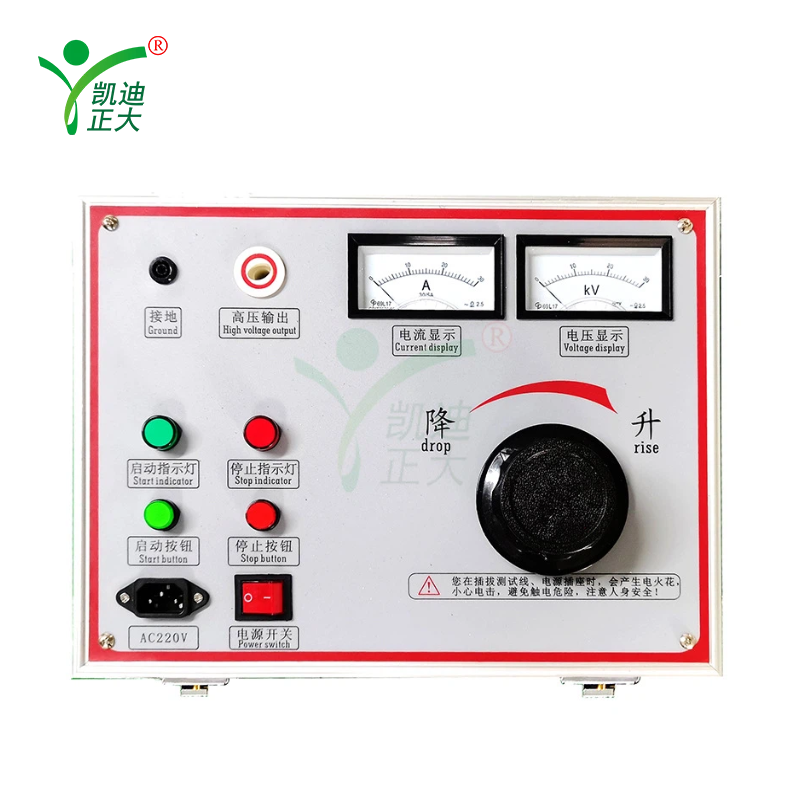

  4. Pointer display for real high-voltage side voltage with small display error and stable performance.
  5. Built-in over-voltage and over-current protection for safe and reliable operation on site.
  6. With emergency working mode, adaptable to various complex on-site testing conditions.

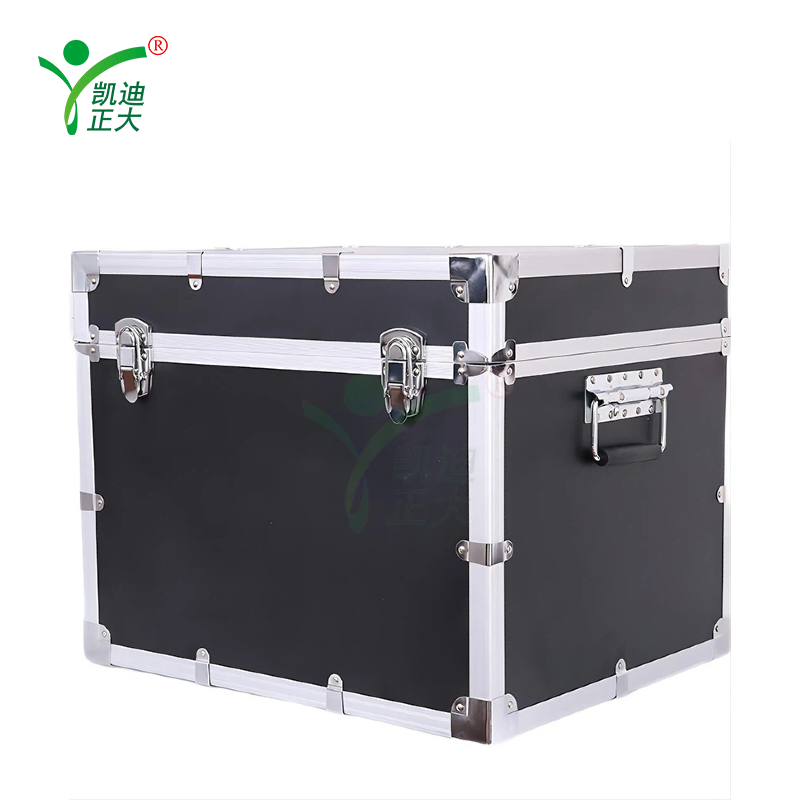

  7. Light weight, compact size and portable design, especially suitable for field operation and use.
  8. Dual-purpose for AC and DC, with expandable external capacitance to meet diverse test needs.

Parameter:

  1. Output voltage: Negative DC 0～32kV, continuously adjustable
  2. External capacitor: 2uF/30kV (optional), expandable
  3. Impact energy: ≥1024J
  4. Discharge cycle: ≥3S
  5. Display error: ≤±2%
  6. Display mode: Magnetoelectric pointer type voltage and ammeter
  7. Additional function: With emergency working mode, stable performance
  8. Working power supply: AC220V±10%, 50Hz, compatible with external mobile power supply
  9. Operating temperature: -10℃～50℃
  10. Relative humidity: ≤90%
  11. Output power: ≤2.2kVA
  12. Dimensions & weight: 360mm(L)×270mm(W)×320mm(H), weight ≤22kg
